Morris Products

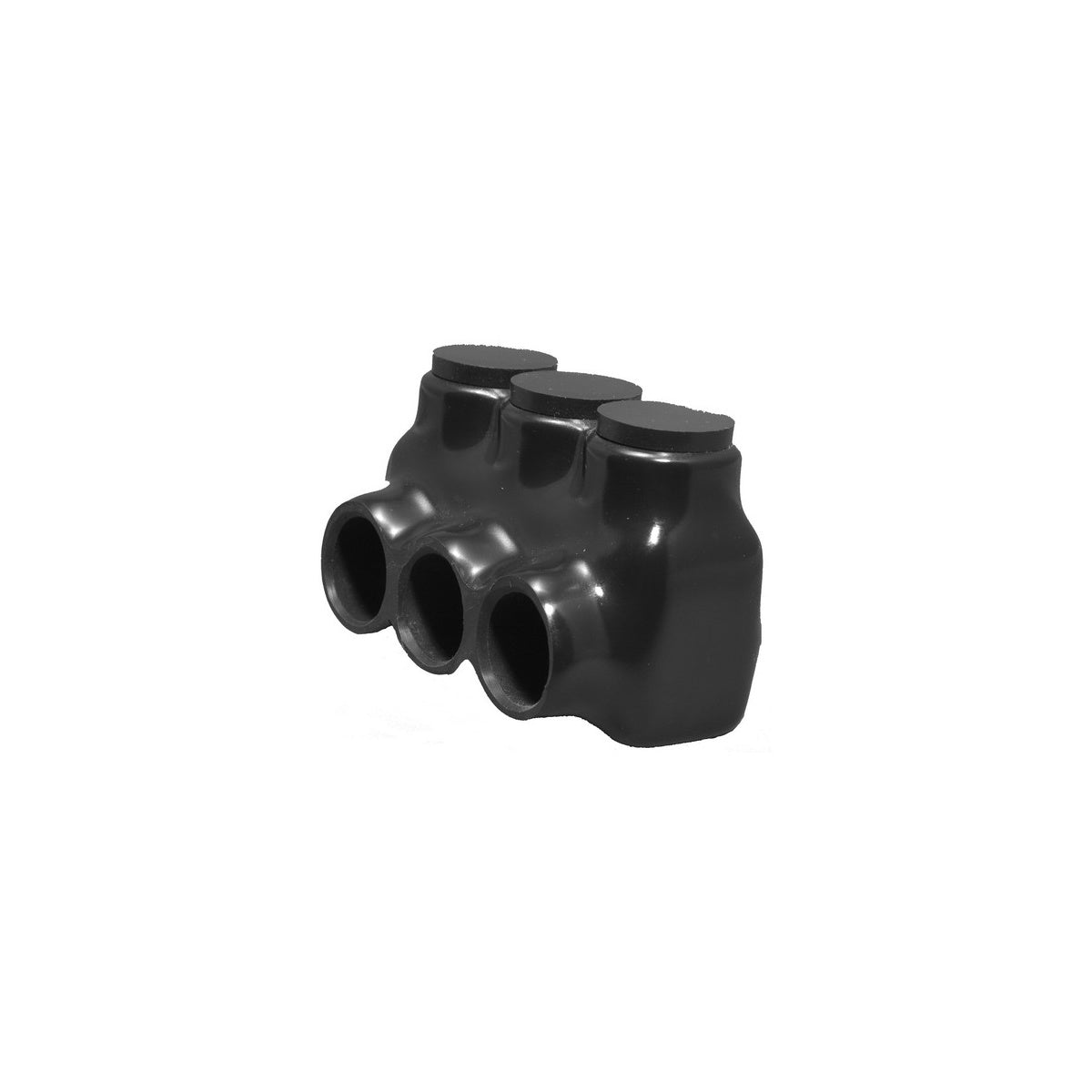

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 750 - 250
SKU: #281140
Part: #97573
UPC: 601986975735
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 750 - 250
SKU: #281140
Part: #97573
UPC: 601986975735
Description
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 750 - 250 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features a single side entry with three ports supporting wire sizes from 750 to 250 MCM, suitable for power distribution in gutters, raceways, and enclosures. The connector simplifies multi-cable connections while ensuring durability and electrical performance.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 750 - 250 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 2.1 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector suitable for AL/CU dual rating
- Prefilled oxide inhibitor for enhanced corrosion resistance
- Applicable for gutter, raceway, and enclosure power distribution applications
