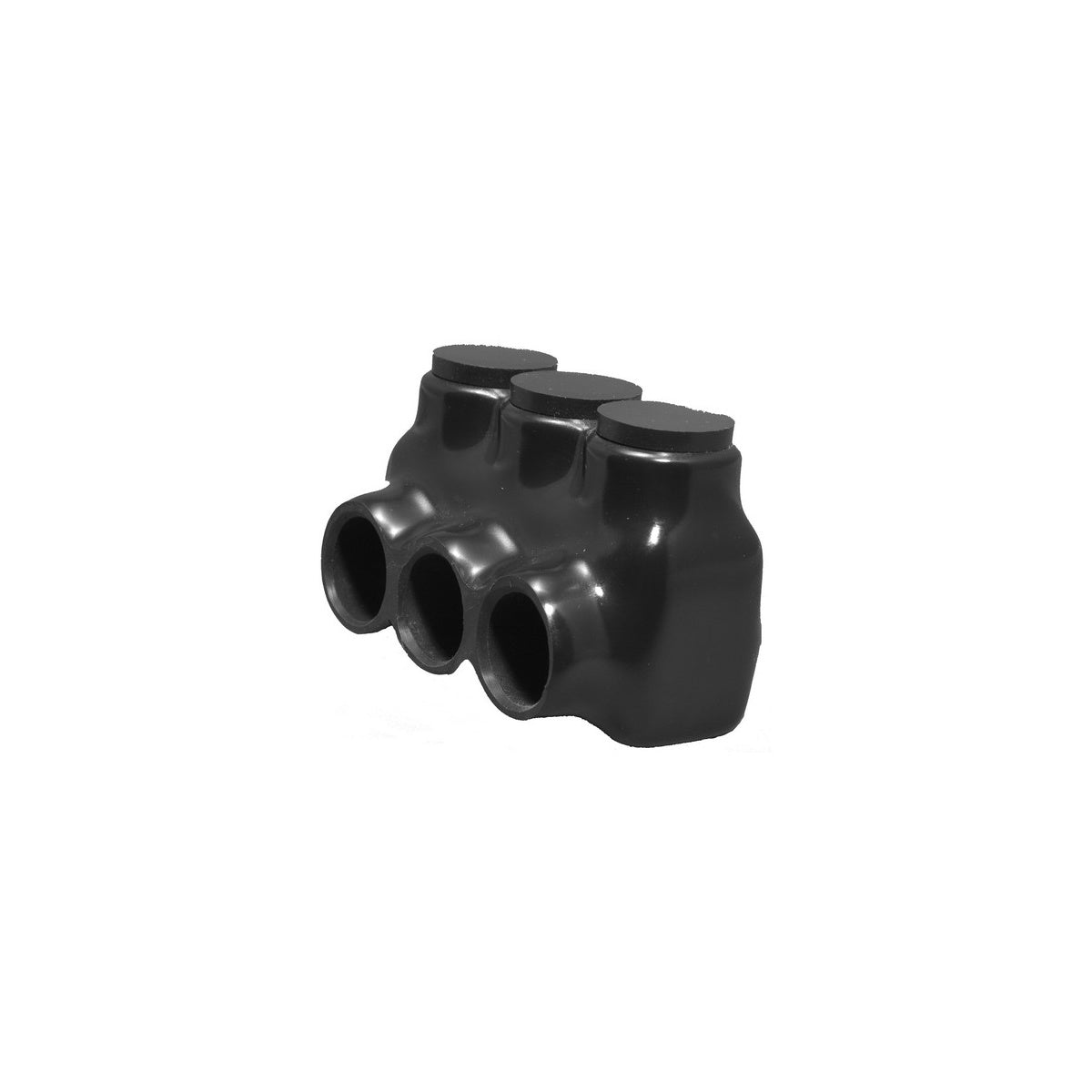

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 600 - 250 | Electrical Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions providers requiring reliable cable splicing and tapping in power distribution systems. It supports single side entry for three ports, accommodating wire sizes from 600 to 250 MCM. Constructed from durable 6061-T6 aluminum with black abrasion and chemical resistant PVC insulation, it is suitable for gutter, raceway, and enclosure power distribution applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 600 - 250 MCM
• Voltage Rating: 600 V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 1.1850 lbs
• Bolt Size: 5/16 inch
• Dimensions: Length 3.4 in, Height 3.11 in

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap single directional conductor entry for simplified cable splicing and tapping
• Aluminum mechanical connector, dual rated for aluminum and copper conductors
• Prefilled with oxide inhibitor to prevent corrosion
• Suitable for use in gutter, raceway, and enclosure power distribution systems
