Morris Products

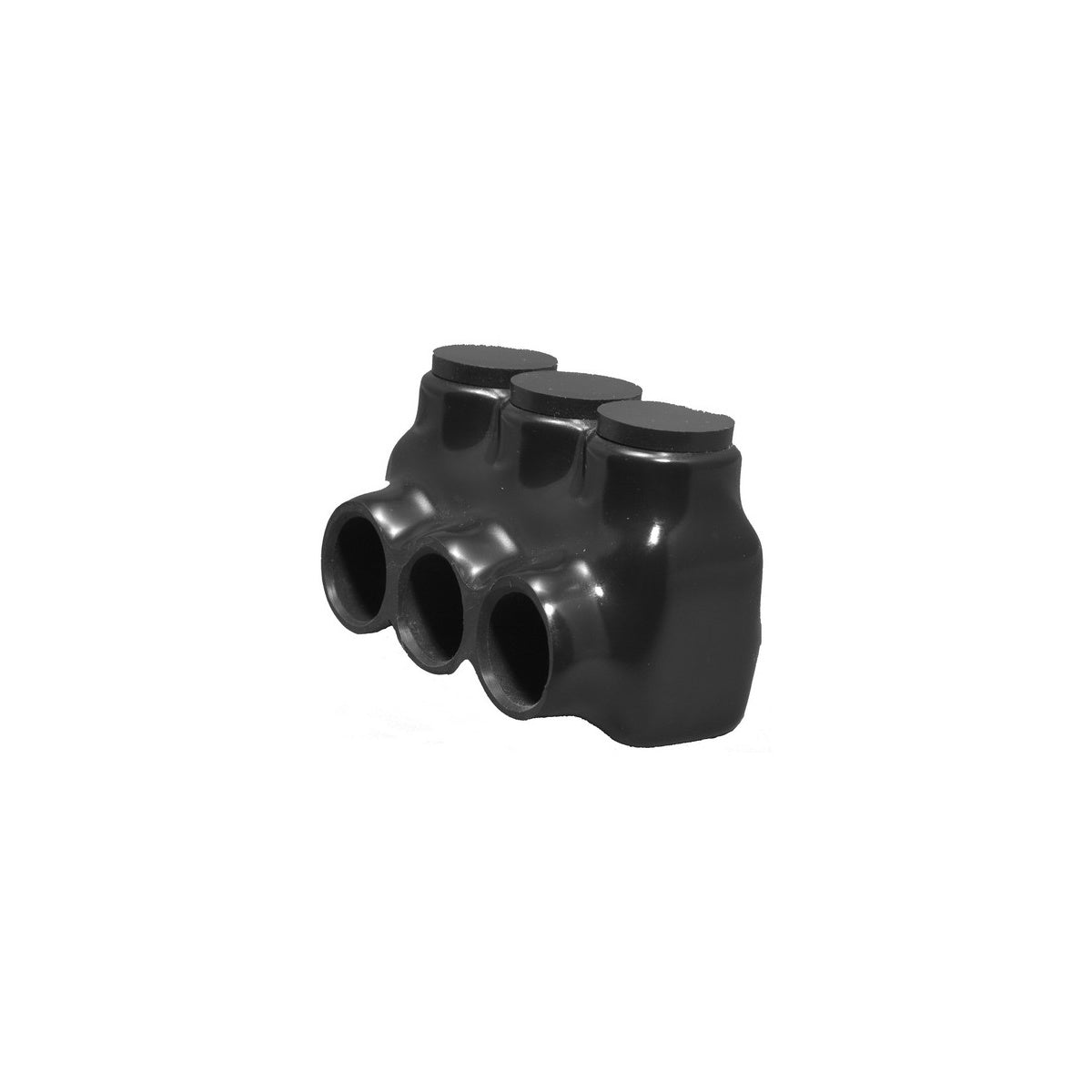

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 500 - 4
SKU: #281211
Part: #97585
UPC: 601986975858
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 500 - 4
SKU: #281211
Part: #97585
UPC: 601986975858
Description
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 500 - 4 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for efficient cable splicing and tapping in electrical power distribution. It features a single side entry with three ports, suitable for wire sizes ranging from 500 to #4 AWG. Constructed from 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, it is ideal for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 500 - #4 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 1.1850 lbs
Features
- Multi-Tap Single Directional Conductor Entry simplifies installation
- Aluminum mechanical connector suitable for AL/CU dual rating
- Prefilled oxide inhibitor for enhanced conductivity and corrosion resistance
- Black PVC insulation provides abrasion and chemical resistance
- Designed for gutter, raceway, and enclosure power distribution applications
