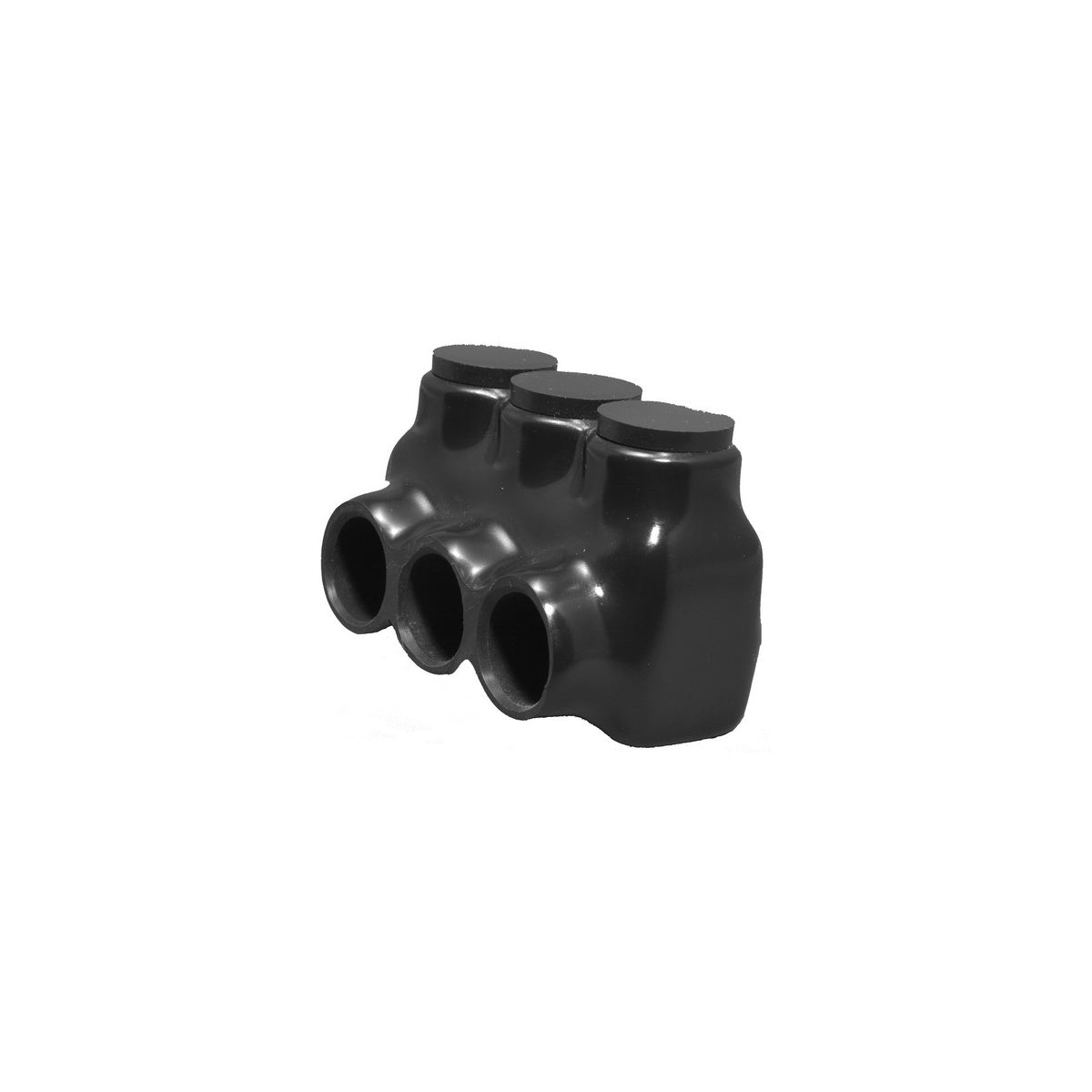

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 350 - 6 | Electrical Power Connector

This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications. Manufactured from 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, it supports a wire range of 350 to #6 AWG. It is suitable for gutter, raceway, and enclosure power distribution applications, providing a reliable connection solution for wire and cable management in lighting solutions and electrical systems.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 350 - #6 AWG
• Voltage Rating: 600 V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL: Yes
• Product Weight: 0.8850 lbs

Features

• Multi-cable connector with single side entry, 3 ports
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Aluminum mechanical connector suitable for aluminum and copper conductors (AL/CU dual rated)
• Black PVC insulation provides mechanical protection and chemical resistance
• Designed for use in power distribution systems including gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
