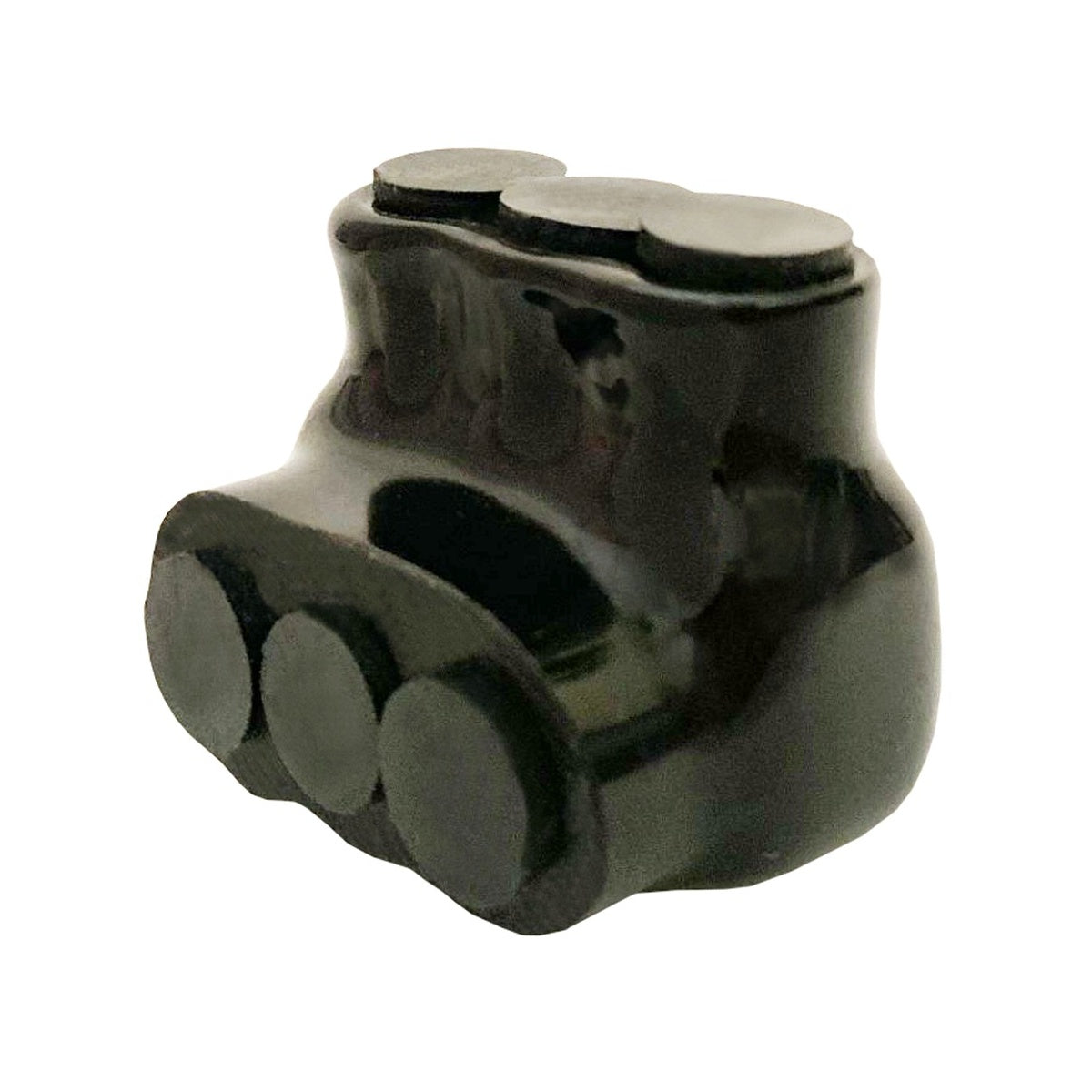

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 3/0 - 6 | Electrical Power Connector

This Black Insulated Multi-Cable Connector is designed for simplifying cable splicing and tapping applications in electrical distribution systems. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections with insulation protection. The connector supports multi-tap single directional conductor entry, making it ideal for gutter, raceway, and enclosure power distribution applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 3/0 - 6 AWG
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600V
• UL Certification: UL 486B Dual Rated CU/AL
• cUL Certified: Yes
• Product Weight: 0.4200 lbs

Features

• Insulated mechanical connector with black PVC insulation for enhanced durability
• Multi-tap single directional conductor entry for efficient cable splicing
• Aluminum mechanical connector suitable for both aluminum and copper conductors (AL/CU dual rated)
• Prefilled oxide inhibitor to prevent corrosion and ensure long-lasting connections
• Designed for use in gutter, raceway, and enclosure power distribution systems

Downloads & Links

• Spec Sheet
