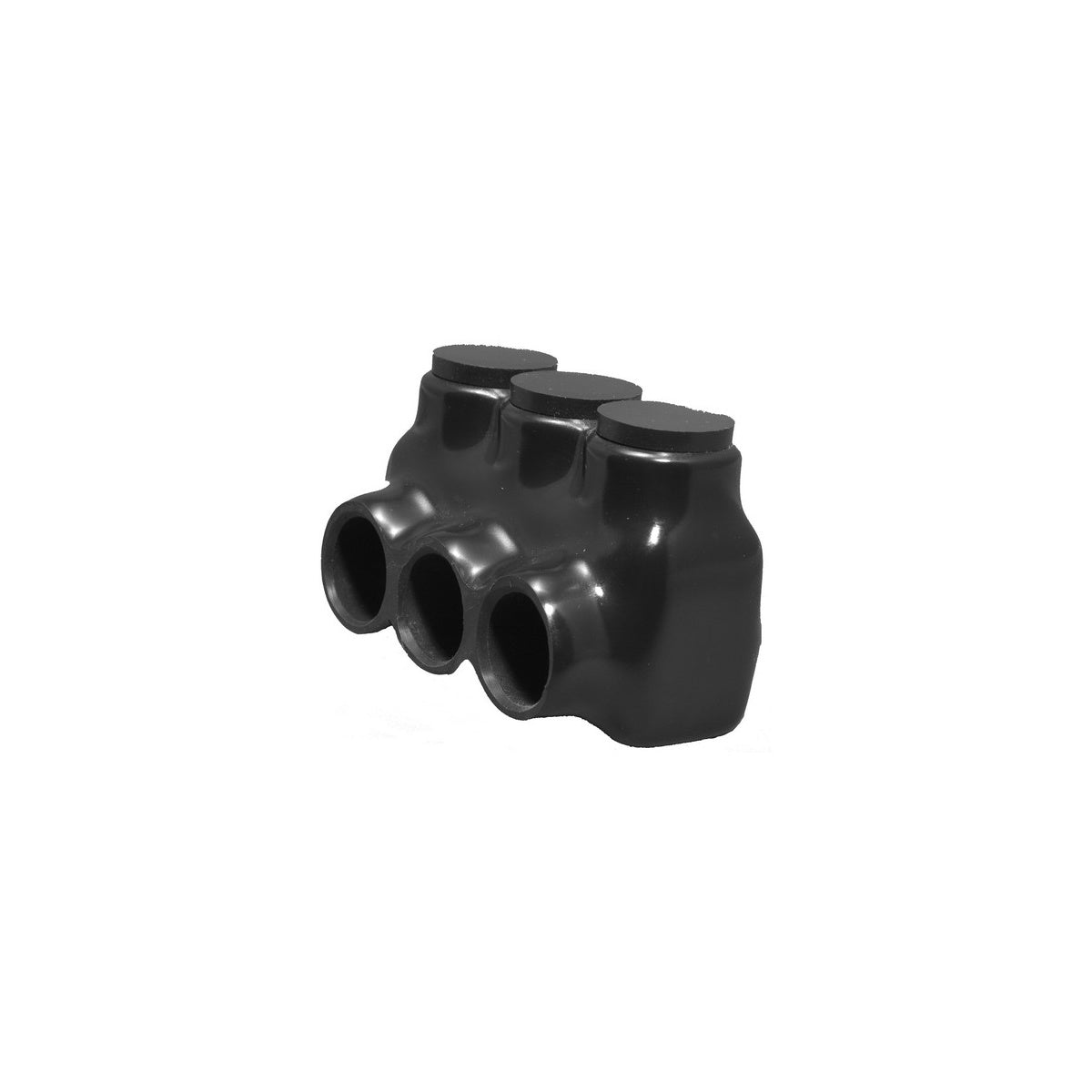

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 250 - 6 | Electrical Power Connector

This black insulated multi-cable connector is designed for electrical distributors and switchgear suppliers to simplify cable splicing and tapping applications. It is suitable for use in lighting solutions, wire and cable installations, and power distribution systems within gutters, raceways, and enclosures.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion and Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL: Yes
• Product Weight: 0.5250 lbs

Features

• Multi-tap single directional conductor entry
• Aluminum mechanical connector with prefilled oxide inhibitor
• Black PVC insulation provides abrasion and chemical resistance
• Dual rated for aluminum and copper conductors
• Designed for gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
