Description

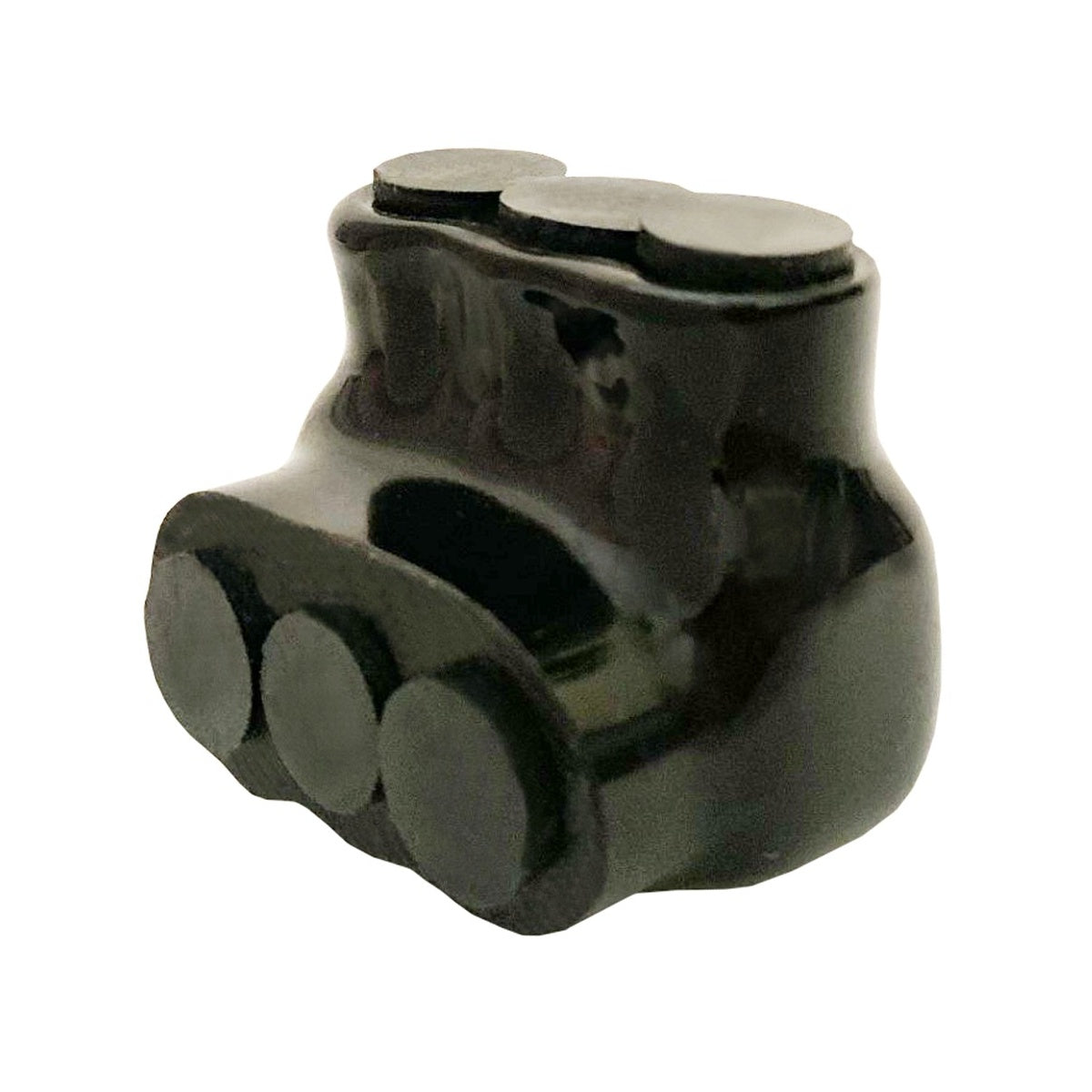

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2 - 14 | Electrical Connector
The Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable cable splicing and tapping solutions. It features a single directional entry with three ports, suitable for wire sizes ranging from #2 to #14. This connector is ideal for gutter, raceway, and enclosure power distribution applications, providing secure mechanical connections with dual-rated aluminum construction.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: #2 - #14
- Insulation: Black Abrasion & Chemical Resistant PVC
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.1650 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap single directional conductor entry
- Aluminum mechanical connector, dual rated for aluminum and copper conductors
- Prefilled oxide inhibitor for enhanced corrosion resistance
- Suitable for use in gutter, raceway, and enclosure power distribution
