Morris Products
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2/0 - 6
SKU: #281018
Part: #97533
UPC: 601986975339
Morris Products
Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2/0 - 6
SKU: #281018
Part: #97533
UPC: 601986975339
Description

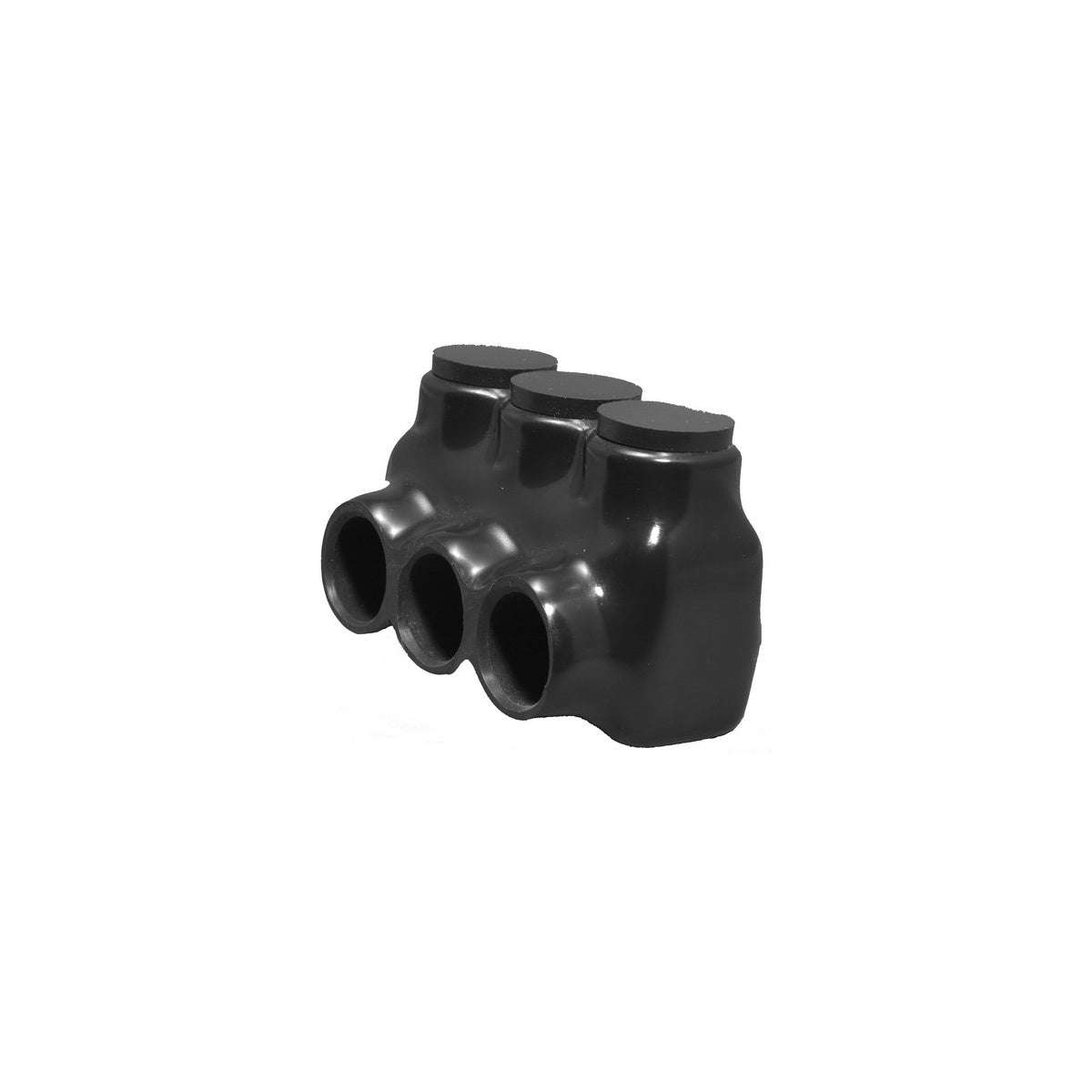

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2/0 - 6 Electrical Connector
This Black Insulated Multi-Cable Connector by Morris Products is designed for simplifying cable splicing and tapping applications in electrical distribution systems. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections with durable insulation for power distribution in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 2/0 - 6 AWG
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.4200 lbs
- Manufacturer Part #: 97533
Features
- Multi-Tap Single Directional Conductor Entry
- Insulated Mechanical Connector with Black PVC Insulation
- Aluminum Mechanical Connector, AL/CU Dual Rated
- Prefilled Oxide Inhibitor for corrosion resistance
- Designed for use in gutter, raceway, and enclosure power distribution applications
