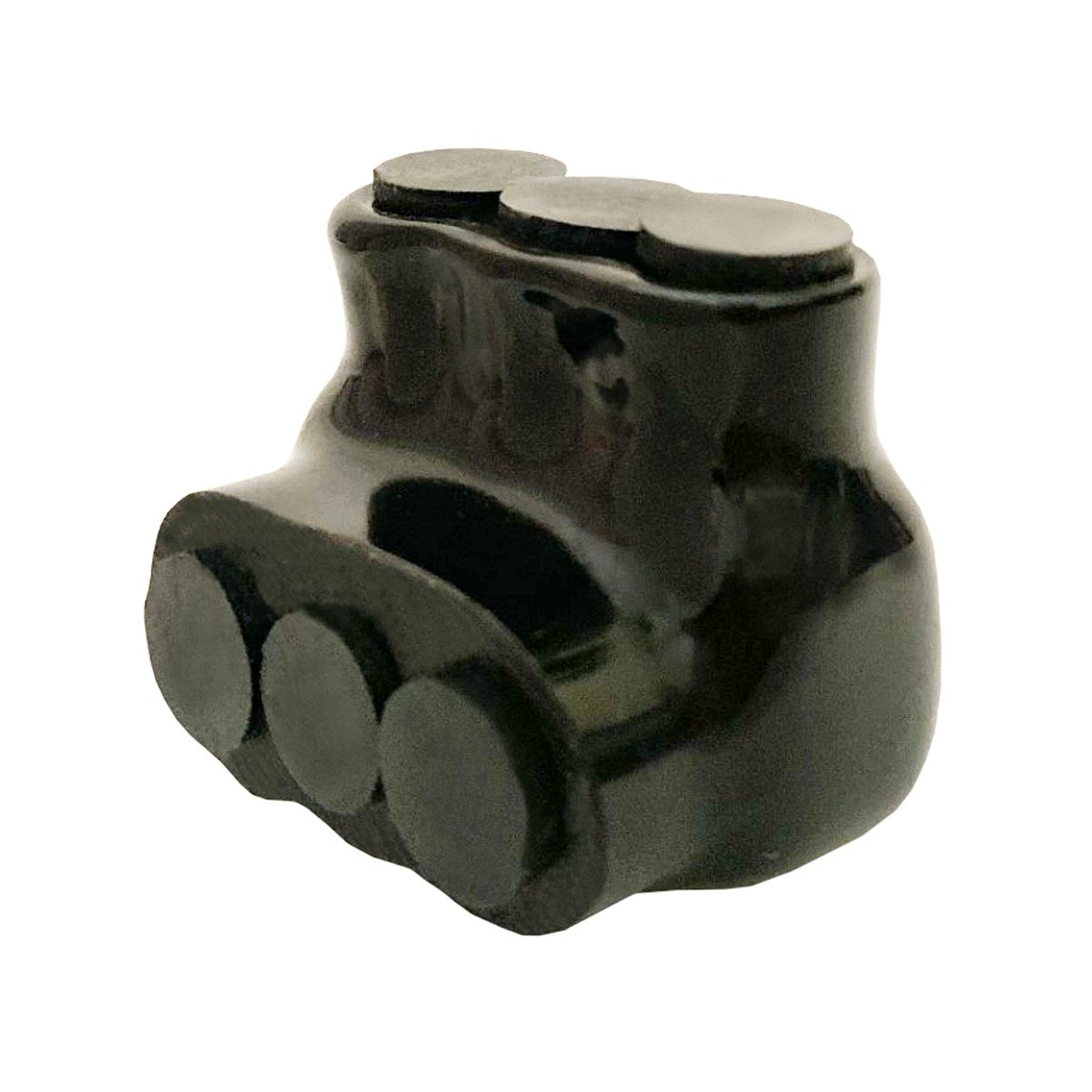

Black Insulated Multi-Cable Connector - Single Entry 3 Ports 1/0 - 14 | Electrical Power Connector

This Black Insulated Multi-Cable Connector is designed for efficient electrical power distribution and cable splicing applications. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it supports multi-tap single directional conductor entry. Suitable for use in gutter, raceway, and enclosure power distribution systems, this connector is dual rated for aluminum and copper conductors, making it a reliable choice for electrical distributors and switchgear suppliers.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 1/0 - #14 AWG
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU/AL ANSI C119.4
• cUL Certification: Yes
• Pre-filled Oxide Inhibitor: Yes
• Number of Ports: 3
• Bolt Size: 3/16"
• Length: 1.9 inches
• Height: 1.85 inches
• Packaging Quantity: 8 per box

Features

• Insulated mechanical connector with black PVC insulation for protection and durability
• Multi-tap single directional conductor entry simplifies cable splicing and tapping
• Aluminum mechanical connector compatible with both aluminum and copper conductors
• Suitable for gutter, raceway, and enclosure power distribution applications
• Pre-filled with oxide inhibitor to prevent corrosion and ensure long-term reliability
