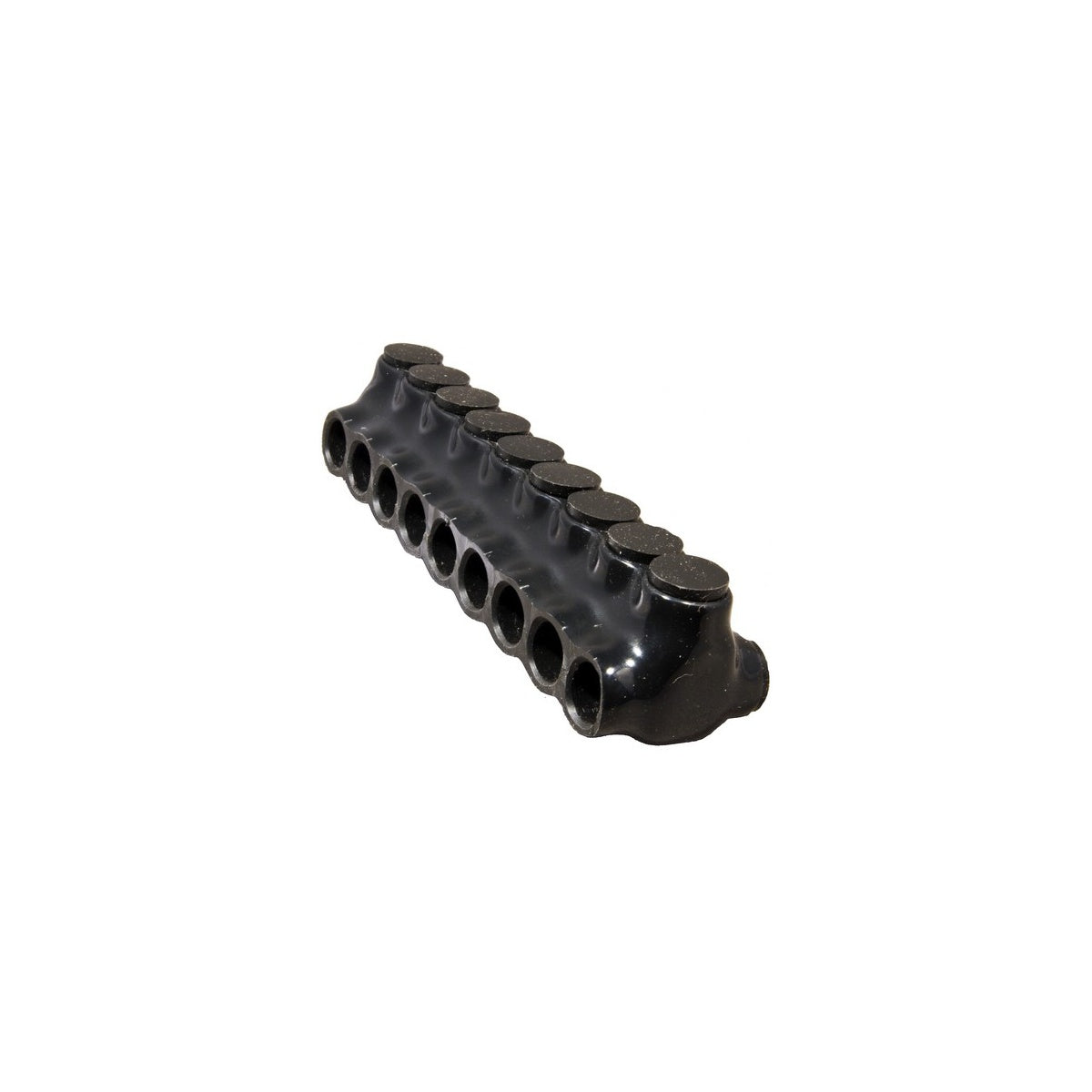

Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 750 - 250 | Electrical Connector

This Black Insulated Multi-Cable Connector is designed for efficient electrical power distribution with dual directional entry, accommodating multiple conductors. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for use by electrical distributors and switchgear suppliers in applications such as gutters, raceways, and enclosures. The connector supports wire sizes ranging from #14 to 750 MCM and is rated for 600 volts, making it a reliable component in lighting solutions and wire and cable management systems.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 49°F - 194°F
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 6.2850 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
• Pre-filled oxide inhibitor to enhance conductivity and prevent corrosion
• Aluminum mechanical connector rated for both aluminum and copper conductors (AL/CU Dual Rated)
• Black PVC insulation provides abrasion and chemical resistance
• Suitable for power distribution in gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
