Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 600 - 250
SKU: #281458
Part: #97669
UPC: 601986976695
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 600 - 250
SKU: #281458
Part: #97669
UPC: 601986976695
Description

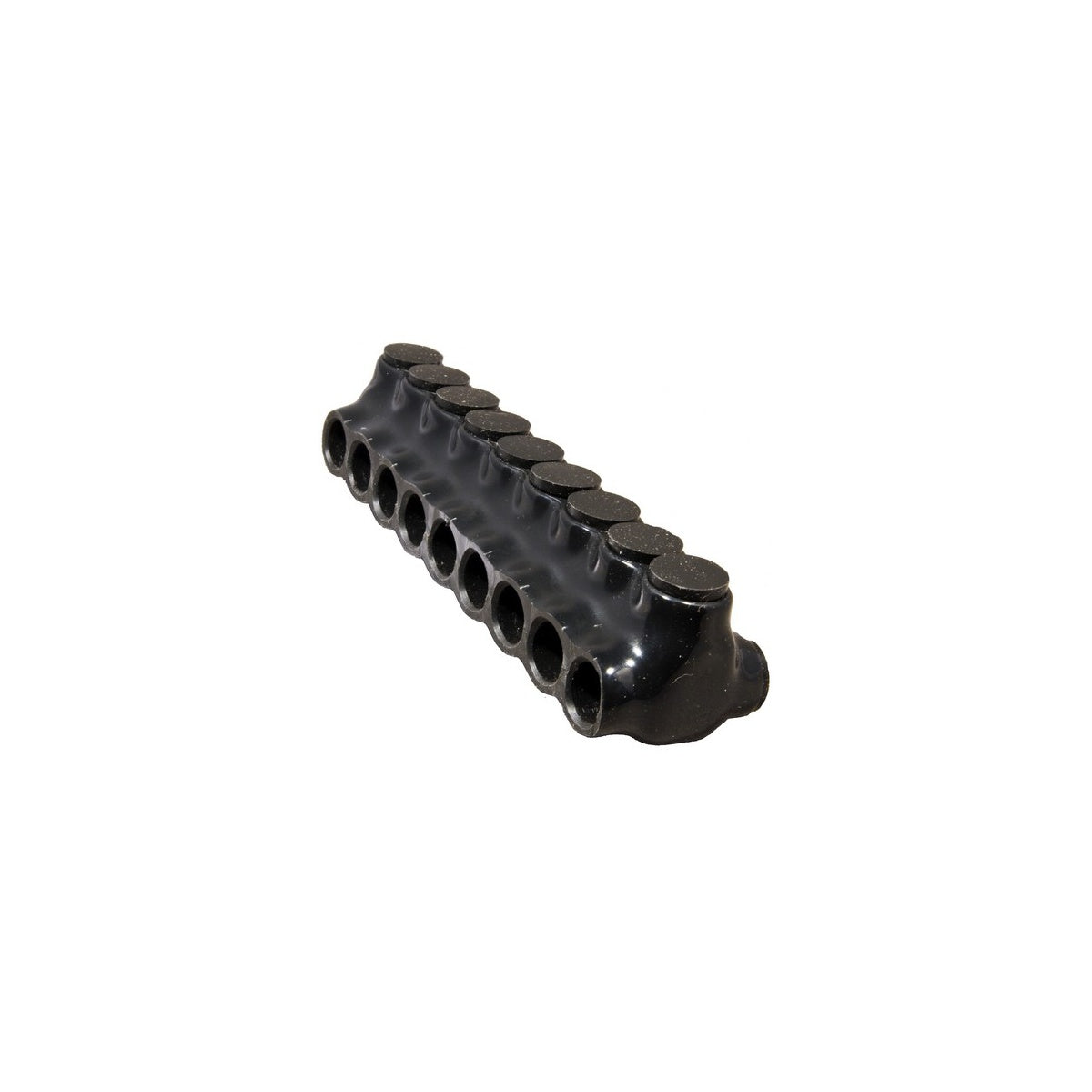

Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 600 - 250 | Electrical Connector
The Black Insulated Multi-Cable Connector is designed for electrical power distribution applications requiring reliable splicing and tapping of multiple conductors. This dual-entry connector accommodates up to 9 ports and supports wire sizes ranging from 600 MCM to 250 MCM. Constructed with 6061-T6 plated aluminum and protected by black abrasion- and chemical-resistant PVC insulation, it is suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers in gutter, raceway, and enclosure installations.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Voltage Rating: 600 V
- Temperature Rating: 40°F - 194°F
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 3.5250 lbs
Features
- Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
- Pre-filled oxide inhibitor to prevent corrosion
- Aluminum mechanical connector compatible with aluminum and copper conductors
- Black insulated design provides electrical safety and durability
- Suitable for gutter, raceway, and enclosure power distribution applications
