Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 500 - 4
SKU: #281586
Part: #97699
UPC: 601986976992
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 500 - 4
SKU: #281586
Part: #97699
UPC: 601986976992
Description

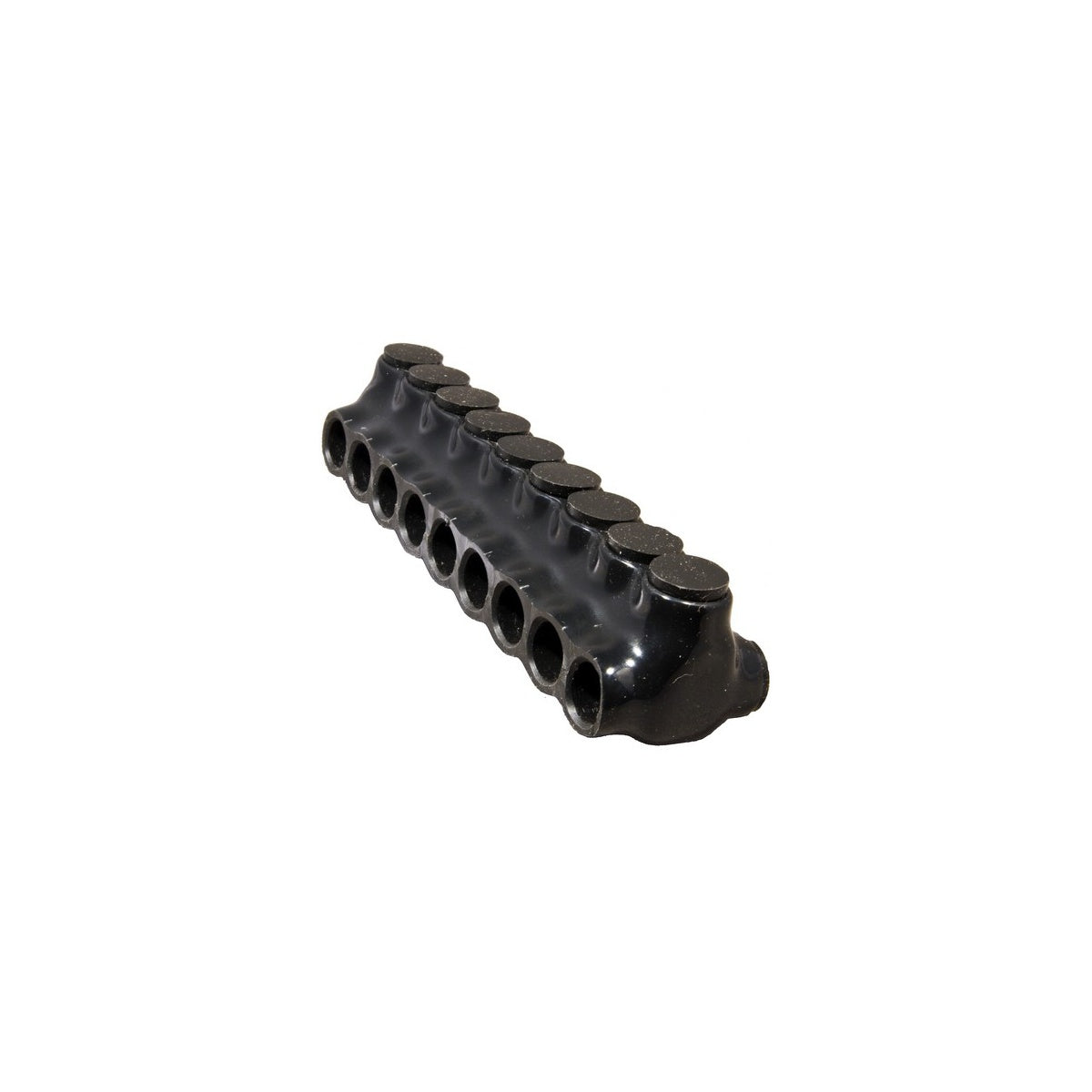

Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 500 - 4
This black insulated multi-cable connector is designed for electrical distributors and lighting solutions requiring reliable power splicing and tapping. Featuring dual side entry with nine ports, it facilitates fast and easy electrical connections in wire and cable installations. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, this connector is suitable for gutter, raceway, and enclosure power distribution applications. It is UL 486B dual rated for aluminum and copper conductors, supporting wire sizes from #14 to 750 MCM with a voltage rating up to 600V.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F - 194°F
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 3.5250 lbs
Features
- Dual directional conductor entry for multi-tap applications
- Pre-filled oxide inhibitor for corrosion resistance
- Suitable for both aluminum and copper conductors (AL/CU dual rated)
- Black PVC insulation provides abrasion and chemical resistance
- Facilitates quick, simple, and secure electrical splicing and tapping
