Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 350 - 6
SKU: #281429
Part: #97659
UPC: 601986976596
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 350 - 6
SKU: #281429
Part: #97659
UPC: 601986976596
Description

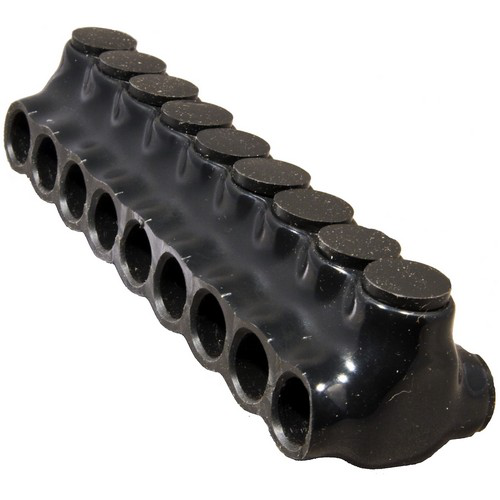

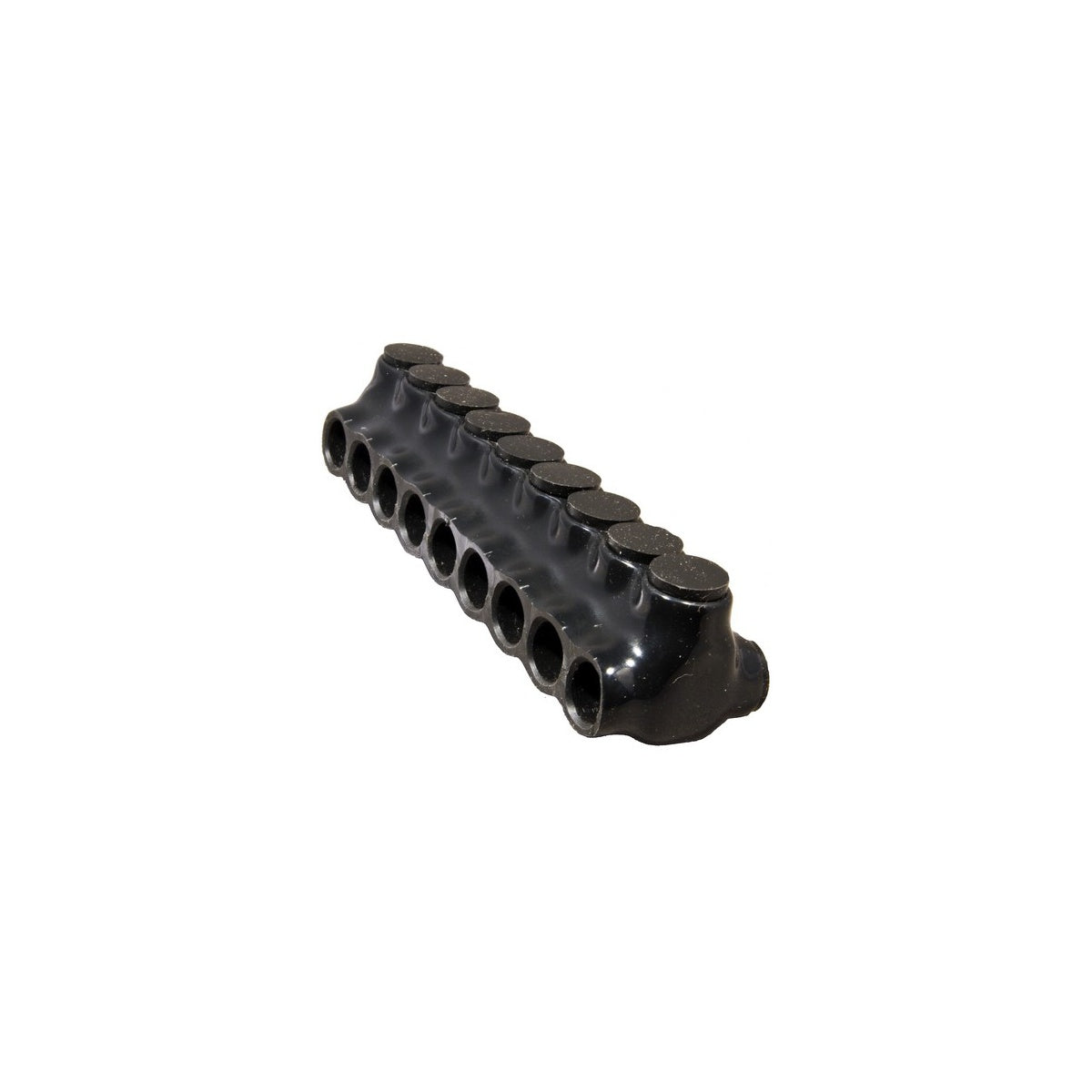

Black Insulated Multi-Cable Connector - Dual Entry 9 Ports 350 - 6
This black insulated multi-cable connector is designed for electrical power distribution applications, providing a reliable solution for splicing and tapping multiple conductors. Manufactured by Morris Products, it features dual side entry ports to simplify and speed up electrical connections. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes from #14 to 750 MCM and is dual rated for aluminum and copper conductors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black abrasion and chemical resistant PVC
- Wire Ports: 9
- Wire Range: #14 - 750 MCM
- Temperature Rating: 40°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 2.52 lbs
Features
- Dual directional entry for multi-cable connections
- Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
- Aluminum mechanical connector suitable for both aluminum and copper conductors
- Black PVC insulation provides abrasion and chemical resistance
- Designed for gutter, raceway, and enclosure power distribution systems
