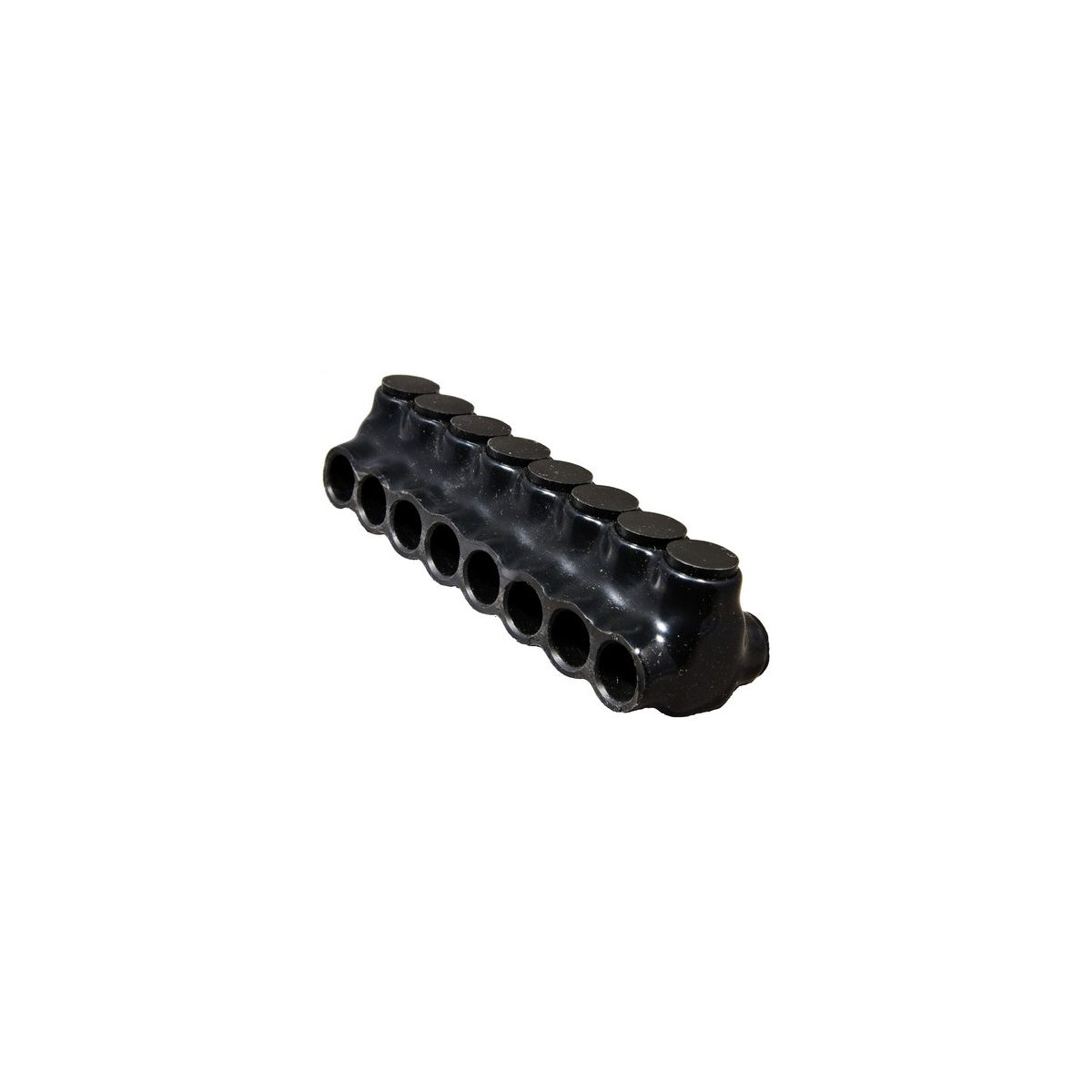

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 750 - 250 | Electrical Power Connector

This Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical splicing and tapping in power distribution systems. Featuring dual side entry with 8 ports, it supports wire sizes ranging from 750 to 250 MCM. Constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers in gutter, raceway, and enclosure power distribution applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49°F - 194°F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 5.5950 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
• Insulated Mechanical Connector with black PVC insulation
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Prefilled with oxide inhibitor to enhance conductivity and prevent corrosion

Downloads & Links

• Spec Sheet
