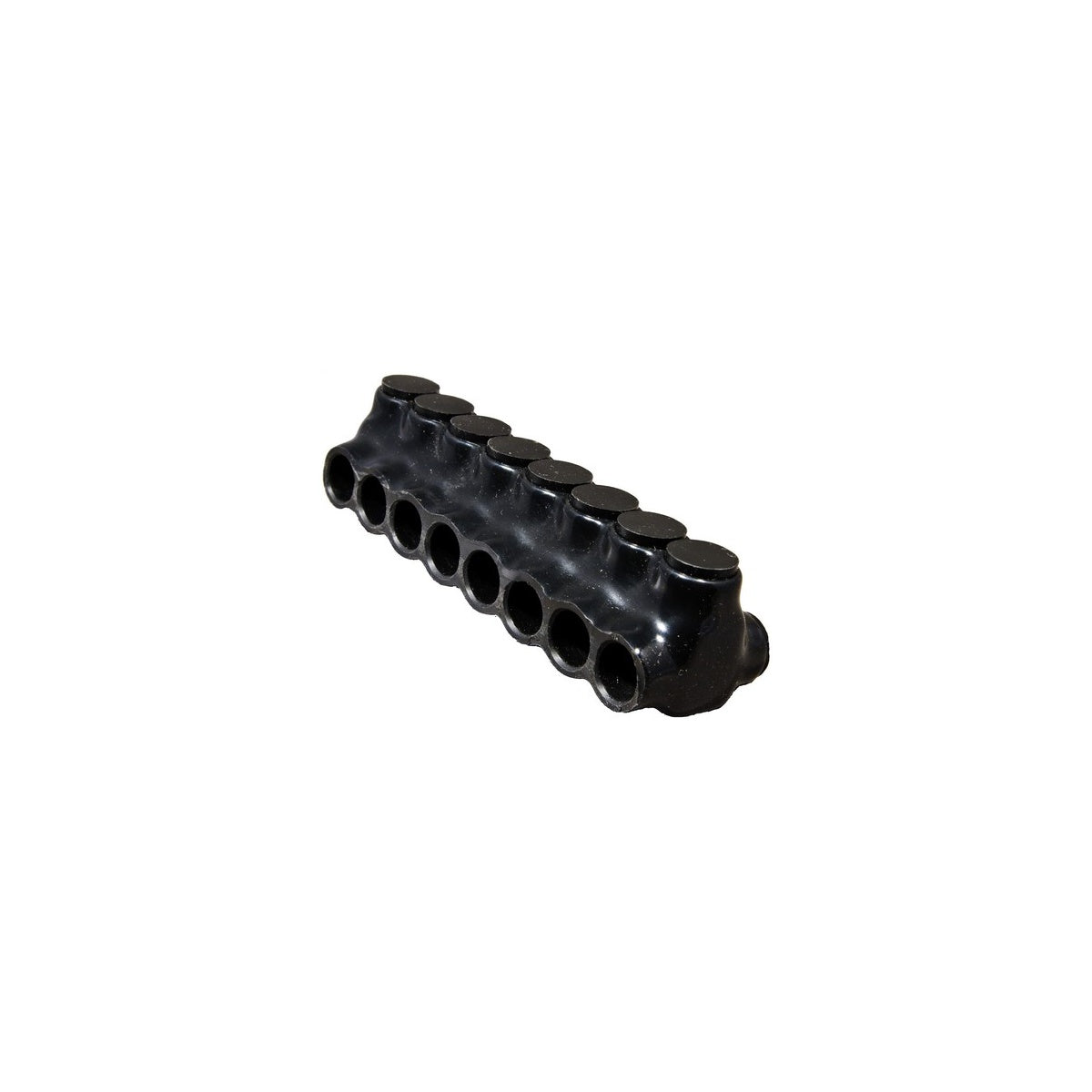

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 500 - 4 | Electrical Connectors

This Black Insulated Multi-Cable Connector is designed for efficient electrical power connections with dual directional entry, simplifying splicing and tapping in electrical distribution systems. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for wire and cable applications in power distribution, gutter, raceway, and enclosure systems. The connector supports a wide wire range and is UL 486B dual rated for aluminum and copper conductors, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F to 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 3.1350 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for flexible wiring configurations
• Prefilled with oxide inhibitor to enhance conductivity and prevent corrosion
• Black PVC insulation provides mechanical protection and chemical resistance
• Compatible with aluminum and copper conductors (AL/CU dual rated)
• Designed for use in gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
