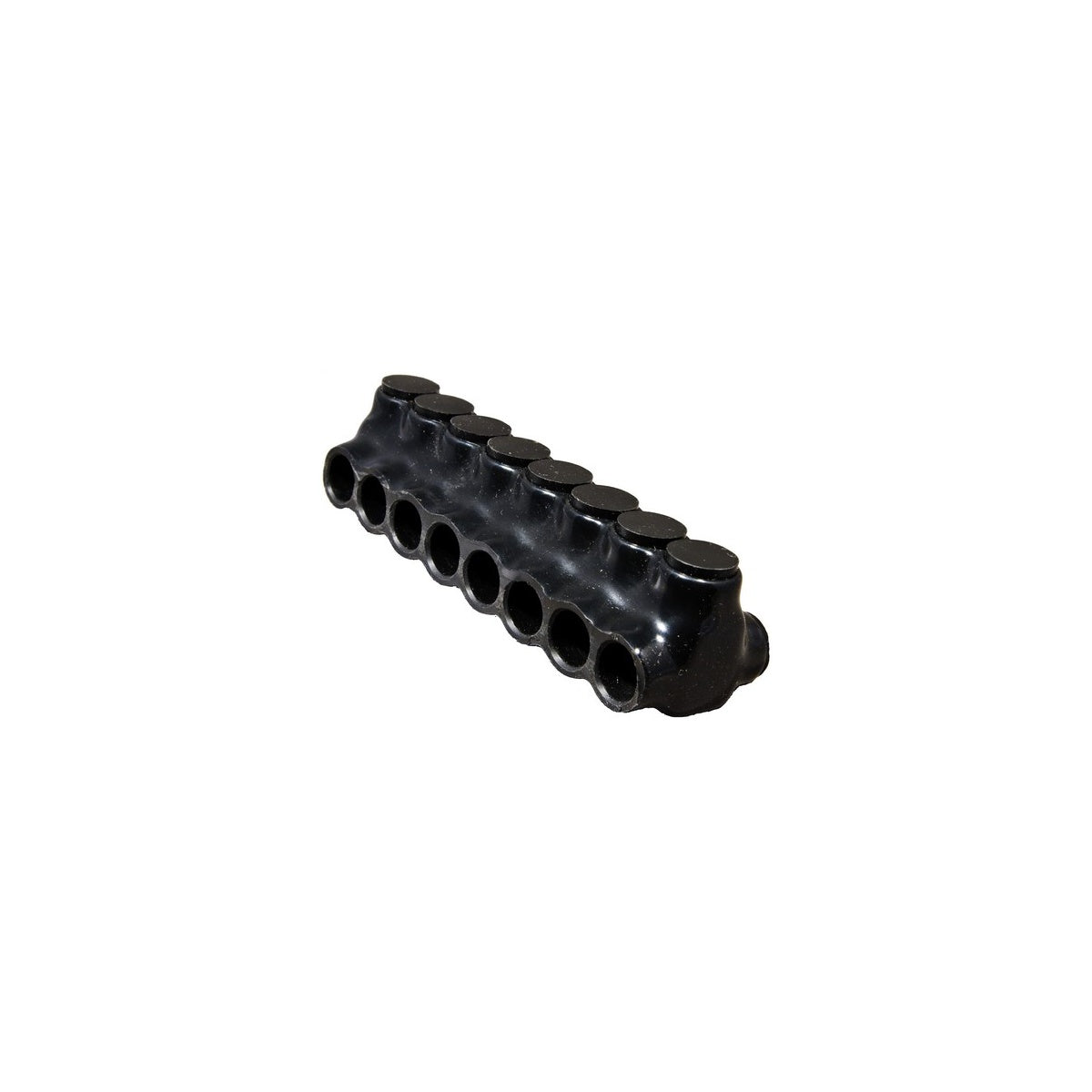

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 4 - 14 | Electrical Connector

This black insulated multi-cable connector is designed for efficient electrical power distribution with dual directional entry for multi-conductor splicing and tapping. Manufactured from 6061-T6 plated aluminum with abrasion- and chemical-resistant black PVC insulation, it is suitable for use in gutter, raceway, and enclosure power distribution applications. This connector supports wire sizes ranging from 4 to 14 AWG and is dual rated for aluminum and copper conductors, making it an essential component for electrical distributors and switchgear suppliers.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #4 - #14 AWG
• Temperature Rating: 49¬∞F to 194¬∞F
• Voltage Rating: 600V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL Certification: Yes
• Product Weight: 0.2700 lb

Features

• Multi-tap dual directional conductor entry for simplified splicing and tapping
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Insulated mechanical connector construction for safety and durability
• Compatible with both aluminum and copper conductors (AL/CU dual rated)

Downloads & Links

• Spec Sheet
