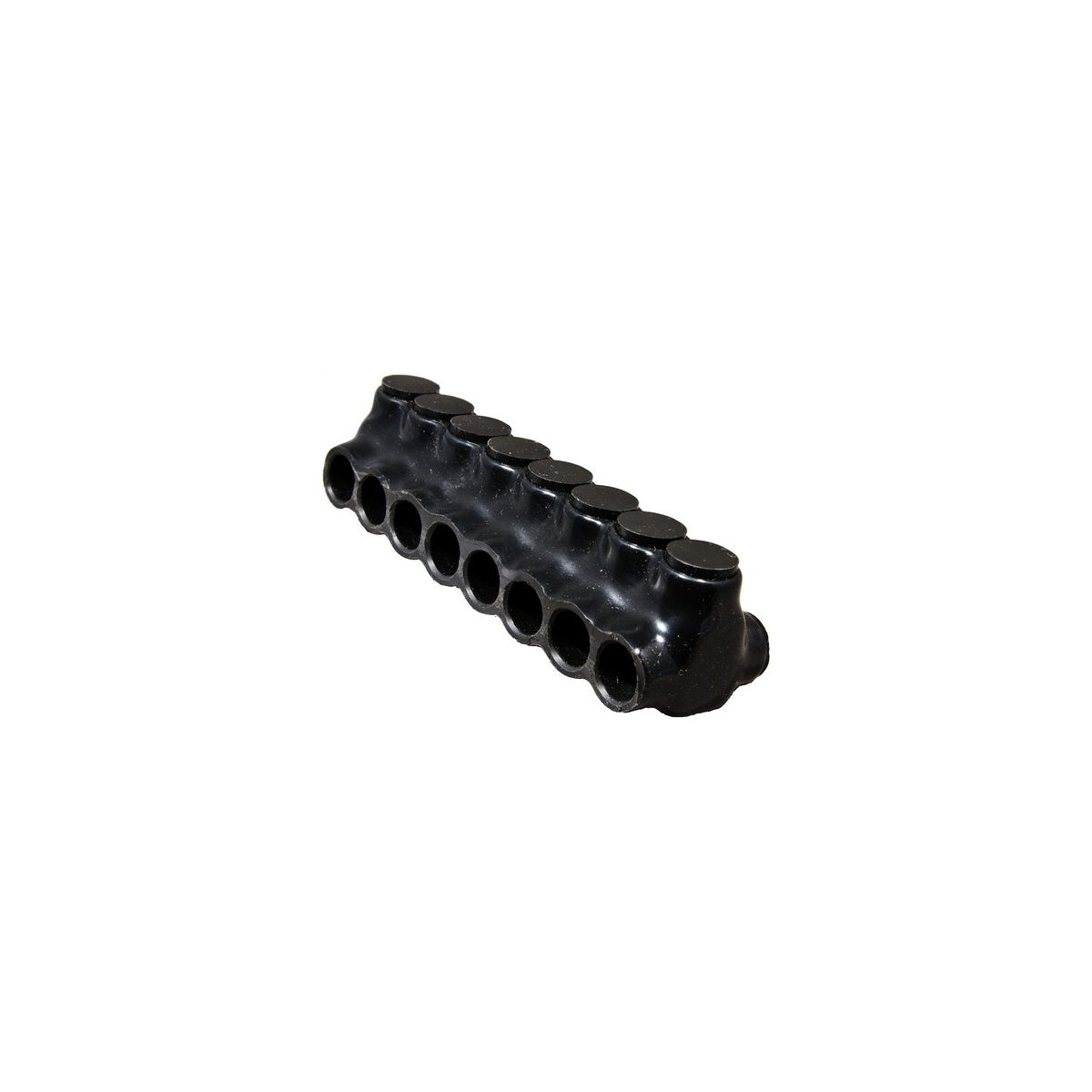

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 350 - 6 | Electrical Connector

This Black Insulated Multi-Cable Connector is designed for efficient electrical splicing and tapping applications, suitable for electrical distributors and lighting solutions providers. Featuring dual side entry with 8 ports, it supports wire ranges from 350 to 6 AWG, making it ideal for power distribution in gutters, raceways, and enclosures. Constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, this connector ensures durability and reliable electrical performance for wire and cable management in industrial and commercial settings.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49°F - 194°F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 2.25 lbs

Features

• Multi-tap dual directional conductor entry for flexible wiring configurations
• Pre-filled oxide inhibitor to prevent corrosion and ensure long-term conductivity
• Aluminum mechanical connector suitable for both aluminum and copper conductors (AL/CU dual rated)
• Black PVC insulation for mechanical protection and chemical resistance
• Designed for quick and easy electrical splicing and tapping

Downloads & Links

• Spec Sheet
