Description

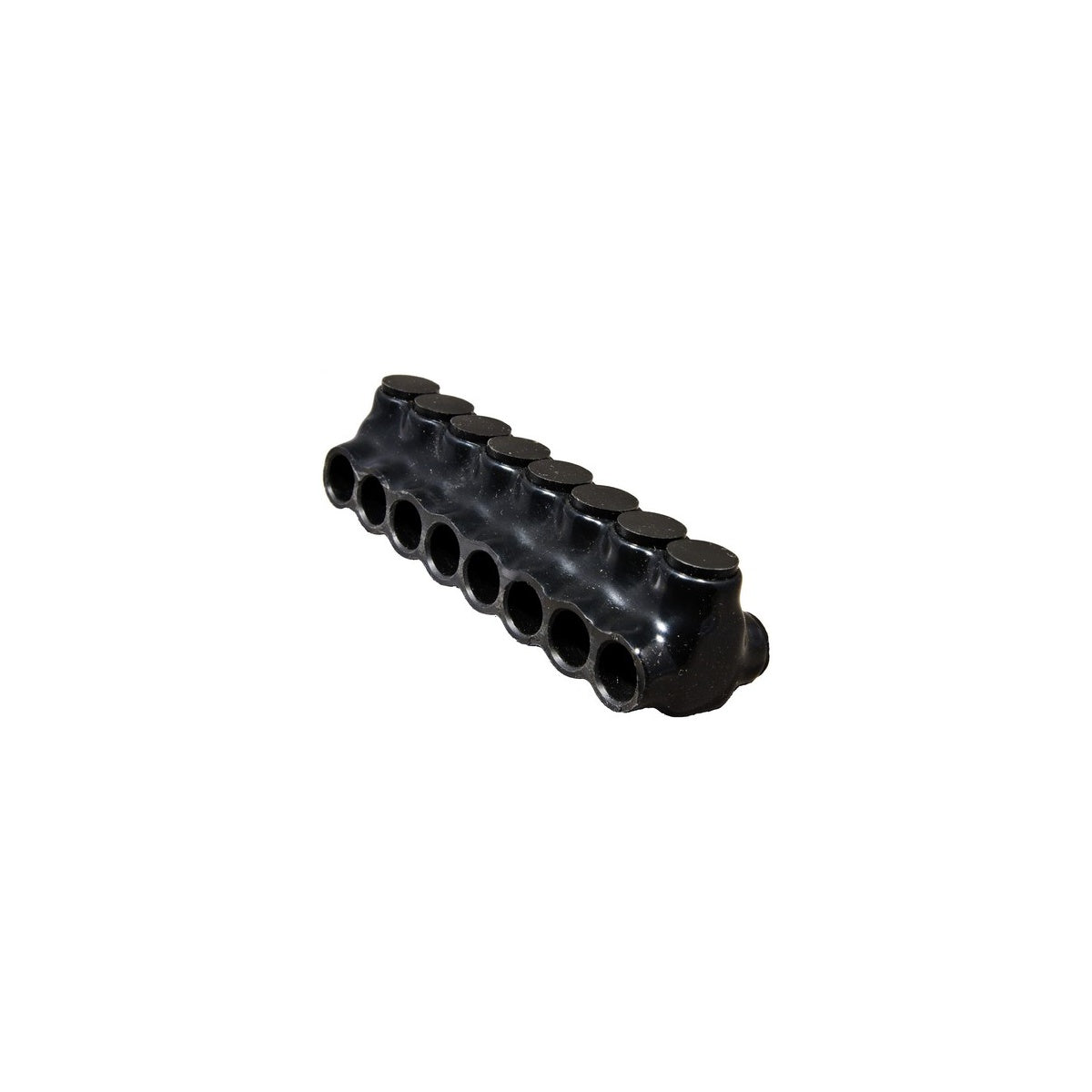

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 3/0 - 6
This black insulated multi-cable connector is designed for electrical power splicing and tapping with dual side entry, accommodating 8 ports for conductor sizes from 3/0 to 6 AWG. Manufactured with 6061-T6 aluminum and featuring black abrasion- and chemical-resistant PVC insulation, it is suitable for power distribution applications in gutters, raceways, and enclosures. This connector is dual-rated for aluminum and copper conductors, meeting UL 486B and cUL standards, making it a reliable component for electrical distributors and switchgear suppliers.
Specifications
- Material: 6061-T6 Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: 3/0 - 6 AWG
- Temperature Rating: 40°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 1.2150 lbs
Features
- Multi-tap dual directional conductor entry simplifies splicing and tapping
- Pre-filled oxide inhibitor enhances conductivity and corrosion resistance
- Black insulated mechanical connector for enhanced safety and durability
- Compatible with both aluminum and copper conductors
- Suitable for gutter, raceway, and enclosure power distribution applications
