Description

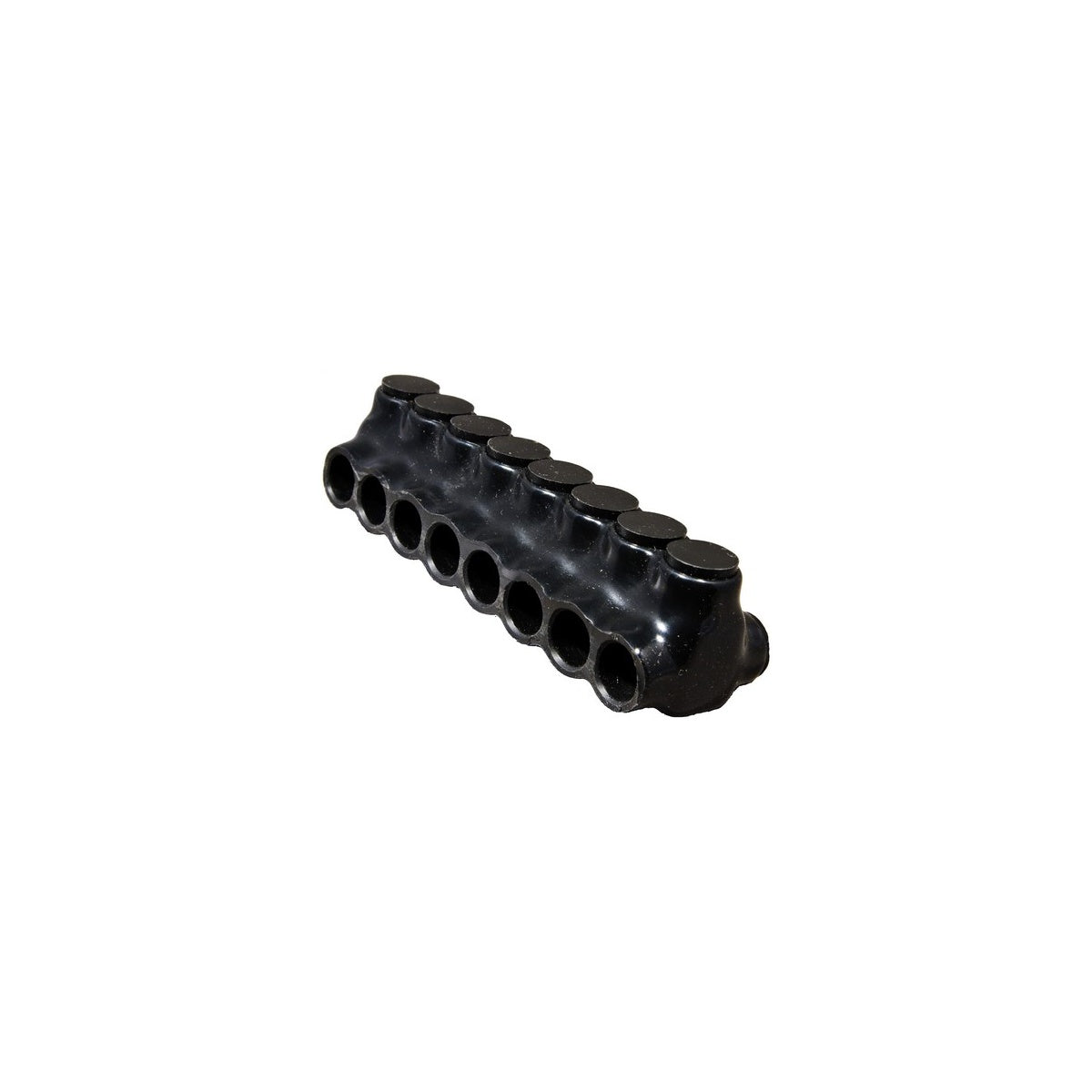

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 250 - 6 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions requiring reliable wire and cable splicing and tapping. Featuring dual side entry with 8 ports, it supports a wide wire range and is suitable for power distribution in gutters, raceways, and enclosures. The connector provides a fast and easy mechanical connection for electrical conductors, making it an efficient choice for switchgear suppliers and electrical contractors.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F to 194°F
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL Certified: Yes
- Product Weight: 1.3950 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry for flexible wiring options
- Aluminum mechanical connector suitable for both aluminum and copper conductors (AL/CU dual rated)
- Prefilled oxide inhibitor to prevent corrosion and ensure long-term conductivity
- Designed for gutter, raceway, and enclosure power distribution applications
