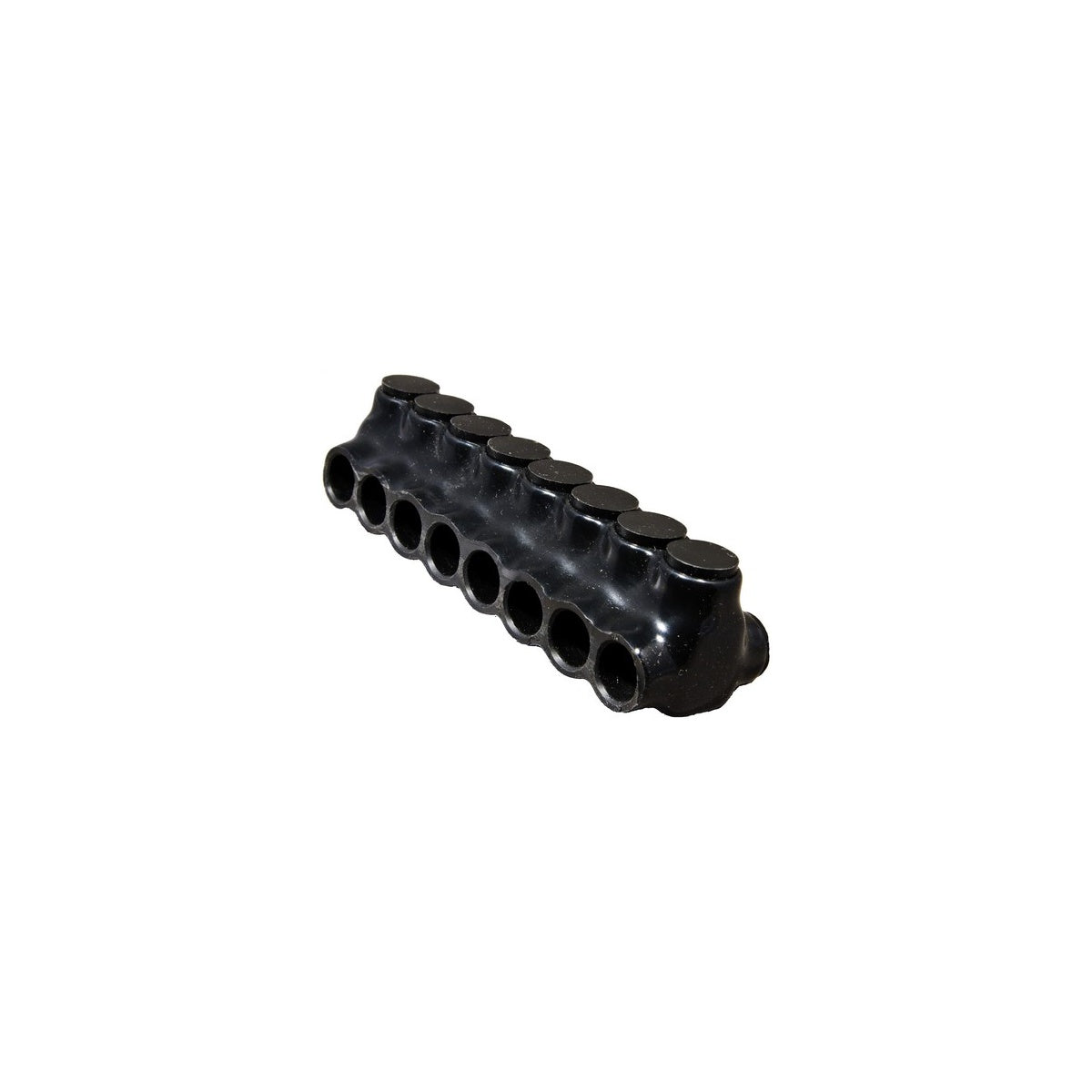

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 2 - 14 | Electrical Connector

This black insulated multi-cable connector is designed for electrical power distribution, enabling quick and reliable splicing and tapping of multiple conductors. Suitable for use by electrical distributors and switchgear suppliers, it supports dual directional entry with 8 ports accommodating wire sizes from 2 to 14 AWG. The connector is ideal for applications in gutters, raceways, and enclosures, providing a durable and efficient solution for wire and cable management in lighting and electrical systems.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black abrasion and chemical resistant PVC
• Wire Range: #2 to #14 AWG
• Temperature Rating: 40¬∞F to 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL Certified: Yes
• Product Weight: 0.45 lbs

Features

• Insulated mechanical connector with black PVC insulation for enhanced safety
• Multi-tap dual directional conductor entry allows flexible wiring configurations
• Aluminum construction provides strength and corrosion resistance
• Pre-filled with oxide inhibitor to ensure reliable electrical connections
• Compatible with both aluminum and copper conductors (AL/CU dual rated)
• Designed for use in power distribution within gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
