Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 2/0 - 6
SKU: #281331
Part: #97638
UPC: 601986976381
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 2/0 - 6
SKU: #281331
Part: #97638
UPC: 601986976381
Description

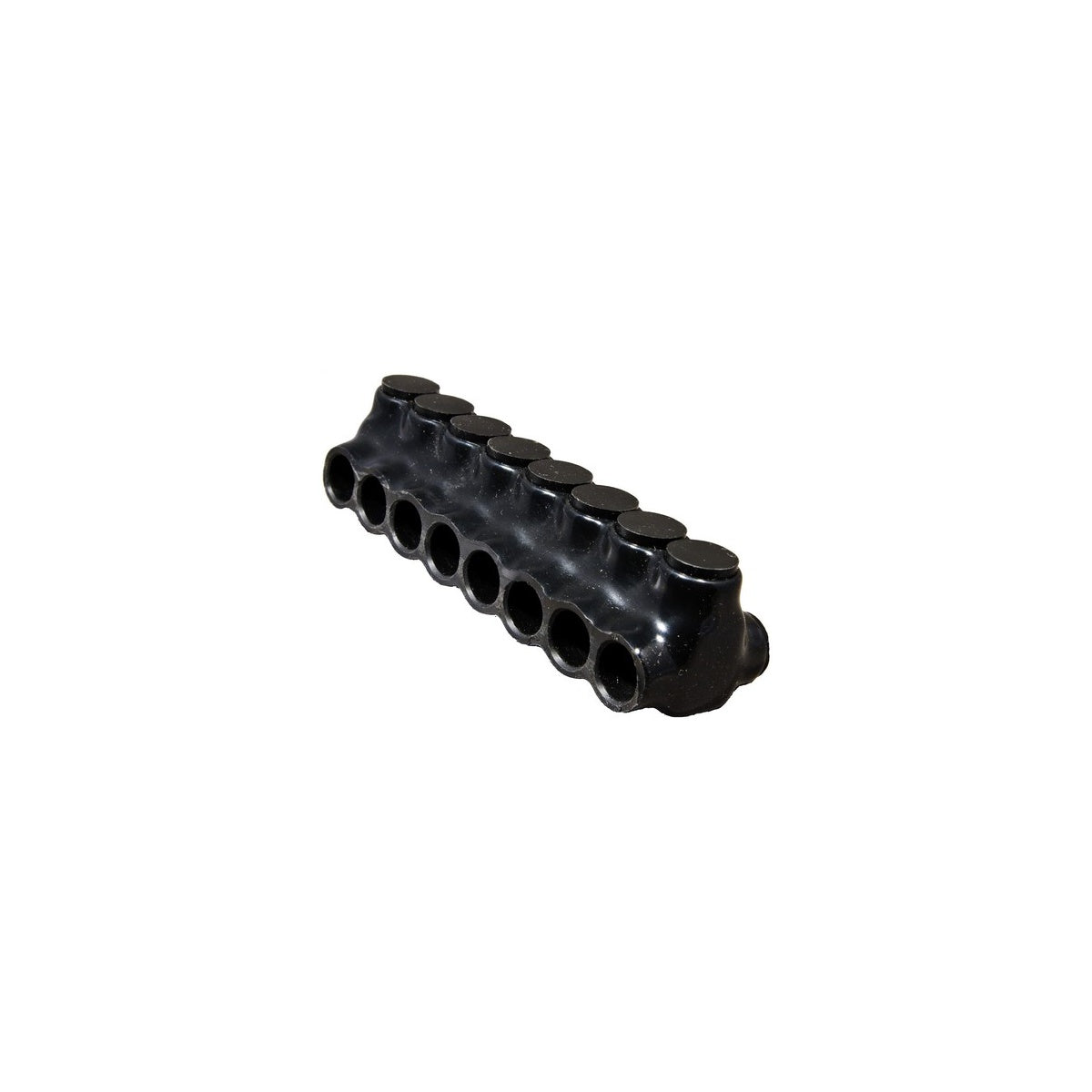

Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 2/0 - 6 Electrical Connector
This Black Insulated Multi-Cable Connector is designed for electrical distributors and switchgear suppliers requiring reliable multi-conductor splicing and tapping solutions. It features dual side entry with 8 ports, accommodating wire sizes from 2/0 to 6 AWG. Constructed from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for power distribution applications in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: 2/0 - 6 AWG
- Insulation: Black Abrasion & Chemical Resistant PVC
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 1.2150 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry for versatile wiring
- Aluminum mechanical connector suitable for AL/CU conductors
- Prefilled with oxide inhibitor to enhance conductivity and prevent corrosion
- Designed for electrical power distribution in gutters, raceways, and enclosures
