Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 7 Ports 250 - 6
SKU: #281397
Part: #97647
UPC: 601986976473
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 7 Ports 250 - 6
SKU: #281397
Part: #97647
UPC: 601986976473
Description

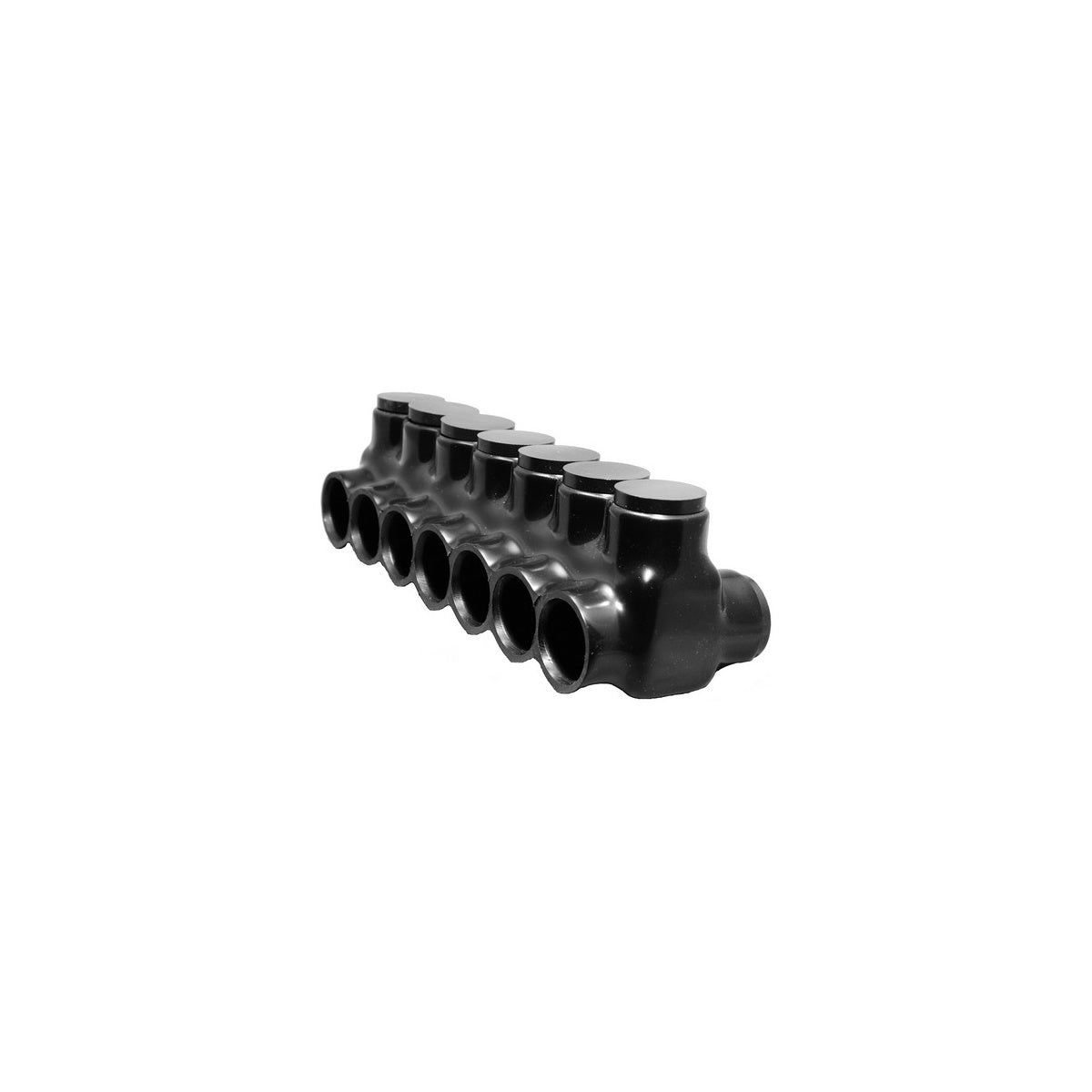

Black Insulated Multi-Cable Connector - Dual Entry 7 Ports 250 - 6 | Electrical Power Connector
This black insulated multi-conductor electrical power connector is designed for efficient splicing and tapping in electrical distribution systems. Manufactured by Morris Products, it features dual side entry with 7 ports suitable for wire sizes ranging from 250 to 6 AWG. Ideal for electrical distributors and switchgear suppliers, it supports applications in gutters, raceways, and enclosure power distribution.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 1.2150 lb
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry for versatile wiring
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled with oxide inhibitor for enhanced conductivity and corrosion resistance
- Designed for quick, simple, and reliable electrical splicing and tapping
