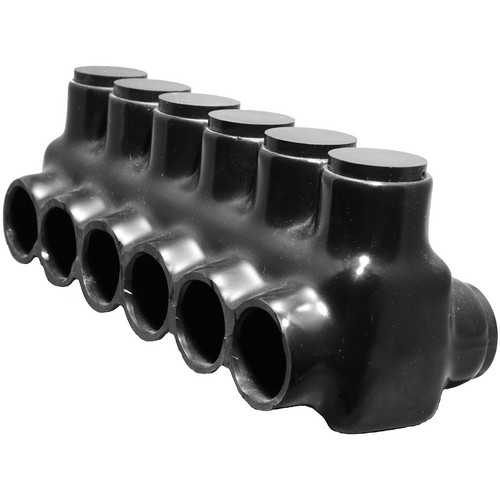

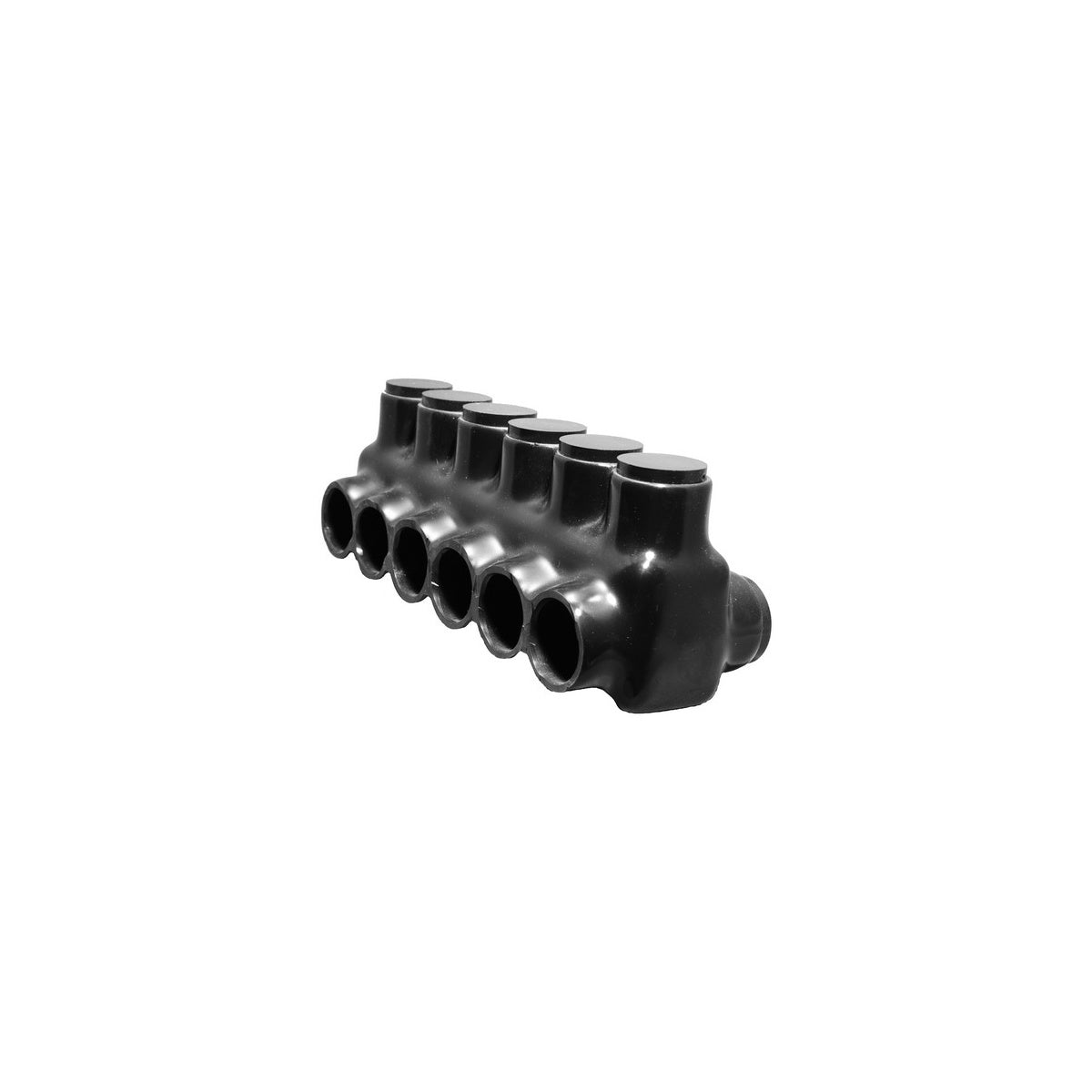

Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 750 - 250 | Electrical Power Connector

This Black Insulated Multi-Cable Connector provides a dual-entry solution for electrical splicing and tapping applications. Designed for use by electrical distributors and lighting solutions providers, it supports multi-conductor connections with six ports, accommodating wire sizes from 750 to 250 MCM. The connector is suitable for power distribution in gutters, raceways, and enclosures, making it a reliable component for wire and cable management in switchgear and electrical installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600 V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 4.2 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
• Black PVC Insulated Mechanical Connector for enhanced durability and safety
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Prefilled with oxide inhibitor to prevent corrosion
• Compatible with a wide range of wire sizes from #14 to 750 MCM

Downloads & Links

• Spec Sheet
