Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 600 - 250
SKU: #281456
Part: #97666
UPC: 601986976664
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 600 - 250
SKU: #281456
Part: #97666
UPC: 601986976664
Description

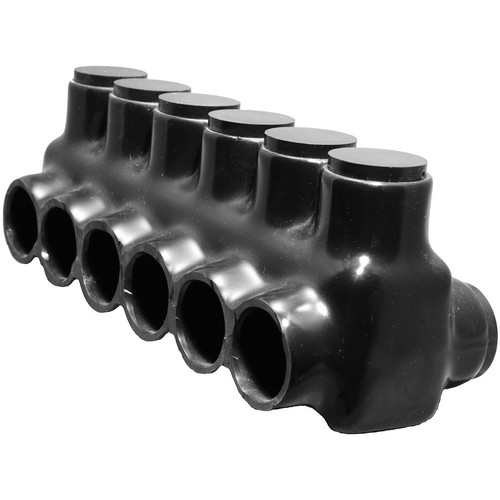

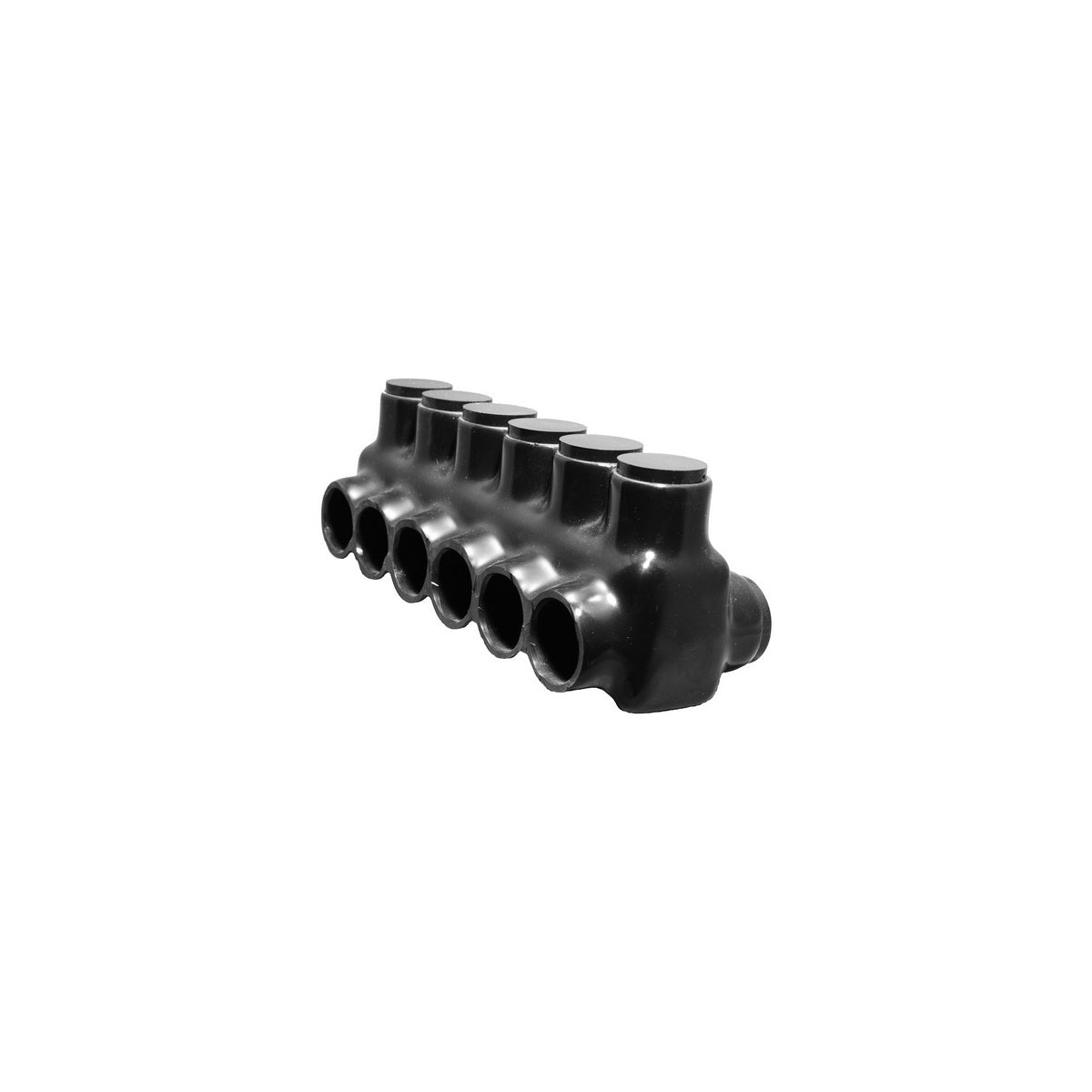

Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 600 - 250 | Electrical Connector
This Black Insulated Multi-Cable Connector with dual side entry and 6 ports is designed for electrical power distribution applications. Manufactured by Morris Products, it facilitates simple, fast, and reliable splicing and tapping of electrical wires. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this connector supports multi-tap dual directional conductor entry and is rated for use in gutters, raceways, and enclosures.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 to 750 MCM
- Temperature Rating: 49°F to 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 2.3550 lbs
- Manufacturer Part #: 97666
Features
- Dual side entry for multi-cable connections
- Black insulated mechanical connector for electrical safety
- Aluminum construction ensures durability and conductivity
- Pre-filled oxide inhibitor to prevent corrosion
- Compatible with aluminum and copper conductors (AL/CU dual rated)
- Designed for gutter, raceway, and enclosure power distribution
