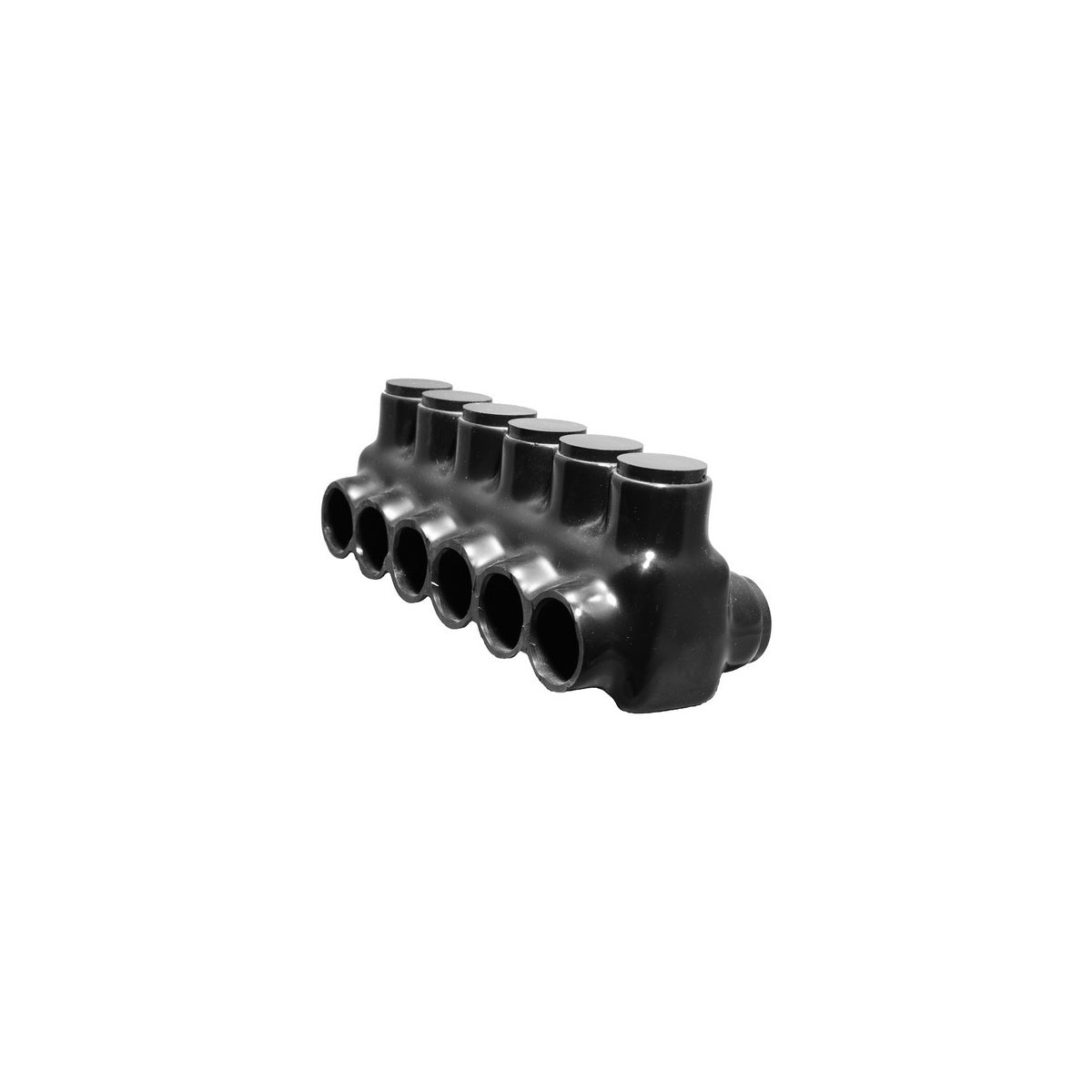

Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 350 - 6 Electrical Connector

This black insulated multi-cable connector is designed for electrical power distribution applications, offering a dual entry with six ports for efficient splicing and tapping of conductors. Manufactured from 6061-T6 plated aluminum and featuring black abrasion- and chemical-resistant PVC insulation, it supports wire ranges from #14 to 750 MCM. This connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable, dual-rated AL/CU connectors for gutter, raceway, and enclosure installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 40¬∞F - 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.71 lbs
• Manufacturer Part #: 97656

Features

• Dual directional conductor entry for multi-tap applications
• Prefilled oxide inhibitor for enhanced conductivity and corrosion resistance
• Aluminum mechanical connector compatible with AL and CU conductors
• Black insulated mechanical connector for safety and durability
• Designed for quick, simple, and reliable electrical splicing and tapping

Downloads & Links

• Spec Sheet
