Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 250 - 6 | Electrical Connector

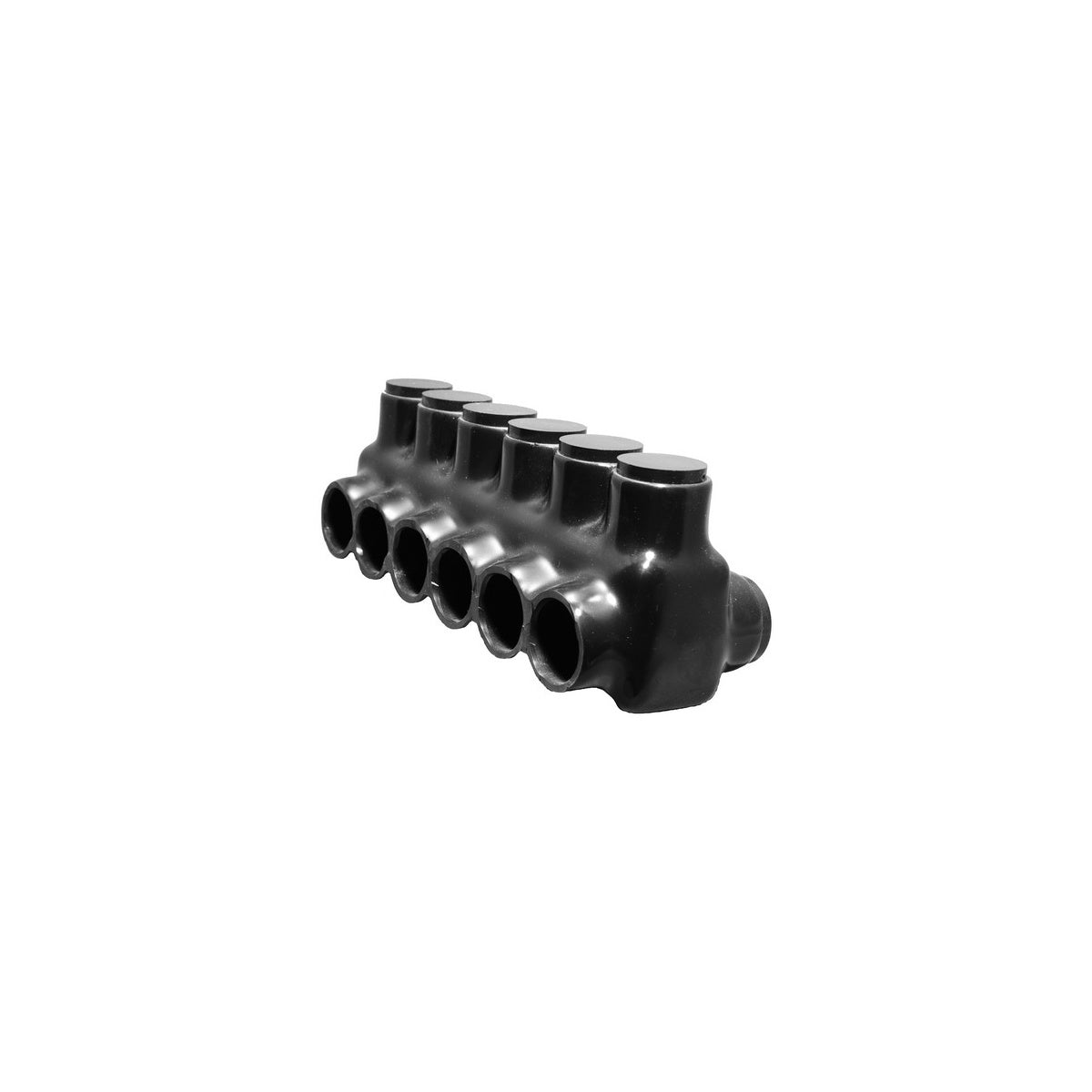

This Black Insulated Multi-Cable Connector is designed for efficient electrical splicing and tapping applications. It features dual directional entry with six ports, facilitating simple, fast, and secure connections in power distribution systems. Manufactured from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connectors. The connector is dual rated for aluminum and copper conductors, making it compatible with various conductor types in switchgear and raceway applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Ports: 6
• Wire Range: #14 to 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 40°F to 194°F
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.05 lbs

Features

• Dual directional conductor entry for multi-tap applications
• Pre-filled with oxide inhibitor to prevent corrosion
• Aluminum mechanical connector suitable for AL/CU dual rating
• Black insulated PVC housing offers abrasion and chemical resistance
• Designed for gutter, raceway, and enclosure power distribution
