Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 2 - 14
SKU: #281293
Part: #97627
UPC: 601986976275
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 2 - 14
SKU: #281293
Part: #97627
UPC: 601986976275
Description
Black Insulated Multi-Cable Connector - Dual Entry 6 Ports 2 - 14 | Electrical Power Connector

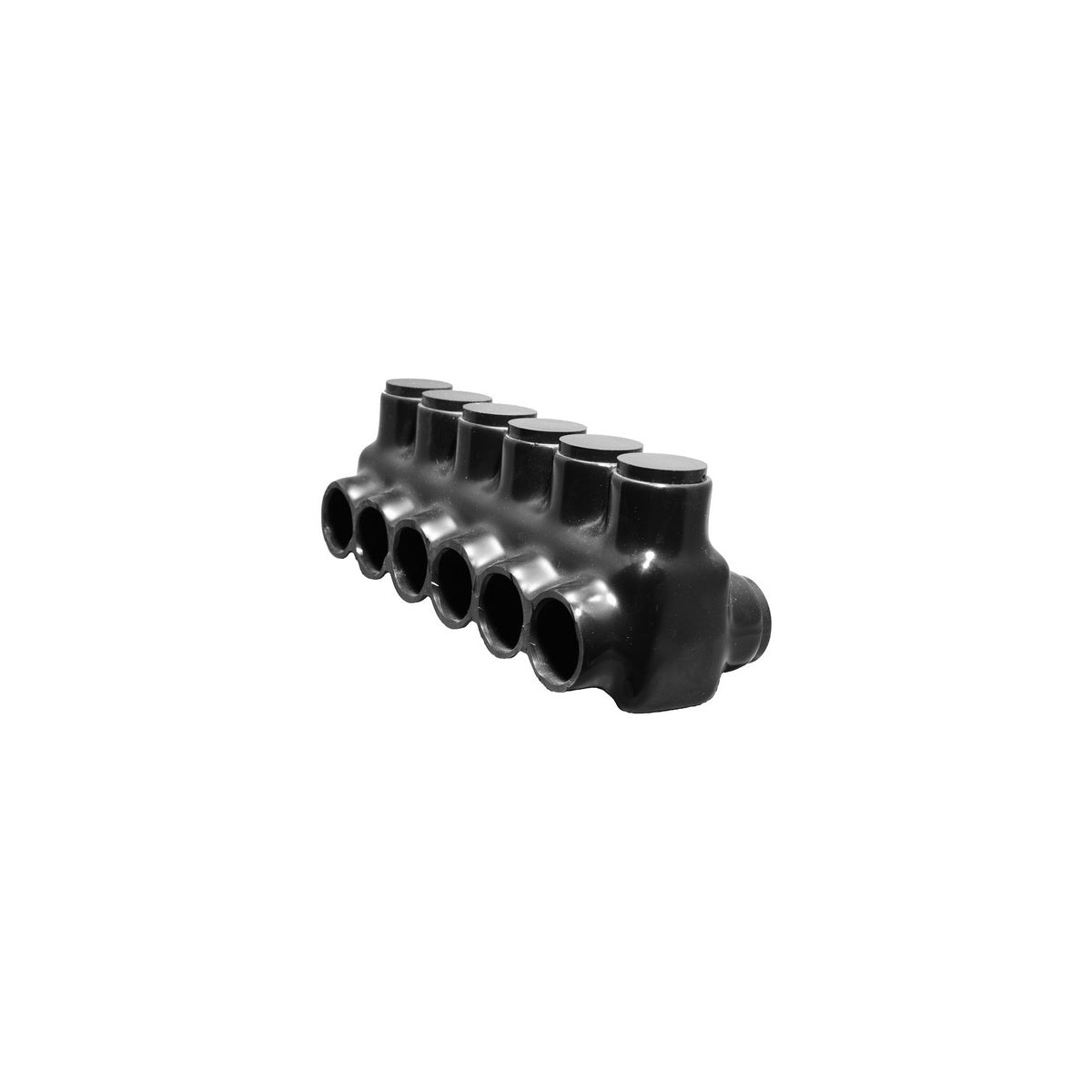

This Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical power distribution and splicing applications. Featuring dual side entry with six ports, it supports wire sizes from 2 to 14 AWG. Constructed with 6061-T6 plated aluminum and black abrasion- and chemical-resistant PVC insulation, this connector is suitable for use by electrical distributors and switchgear suppliers in gutter, raceway, and enclosure power distribution systems.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #2 - 14 AWG
- Temperature Rating: 49°F to 194°F
- Voltage Rating: 600 V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL Certification: Yes
- Product Weight: 0.2850 lbs
- Manufacturer Part #: 97627
Features
- Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
- Pre-filled oxide inhibitor for enhanced electrical connection reliability
- Aluminum mechanical connector suitable for both aluminum and copper conductors
- Black PVC insulation provides abrasion and chemical resistance
