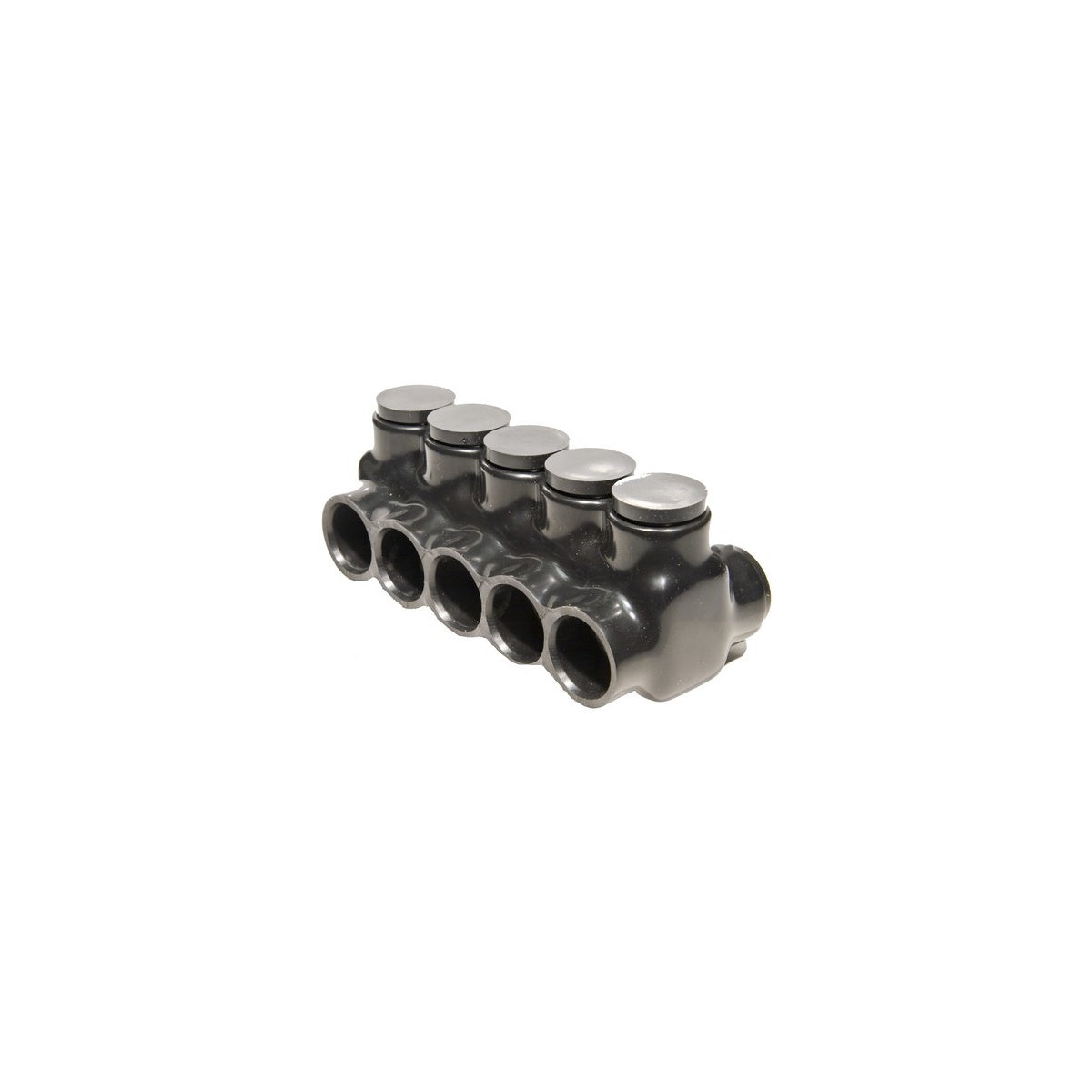

Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 750 - 250 Electrical Connector

The Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical splicing and tapping in power distribution systems. This dual entry connector supports multi-directional conductor entry, making it suitable for applications requiring reliable mechanical connections in gutters, raceways, and enclosures. Ideal for electrical distributors and switchgear suppliers, it accommodates wire sizes ranging from 750 to 250 MCM, ensuring versatility in wire and cable installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49¬∞F to 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 0.2500 lbs

Features

• Multi-tap dual directional conductor entry for flexible wiring configurations
• Prefilled oxide inhibitor to enhance connection durability
• Black insulated mechanical connector for added safety and protection
• Aluminum mechanical connector compatible with AL/CU conductors
• Designed for use in gutter, raceway, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
