Morris Products

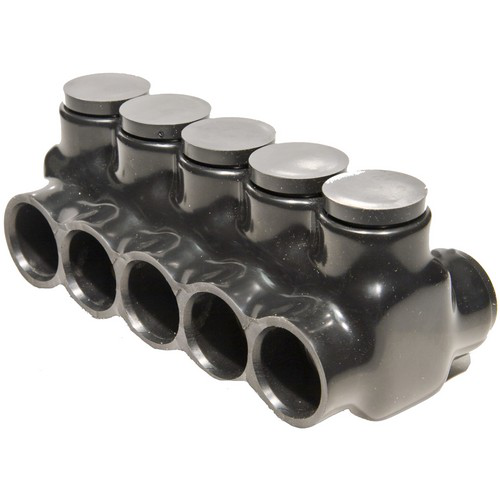

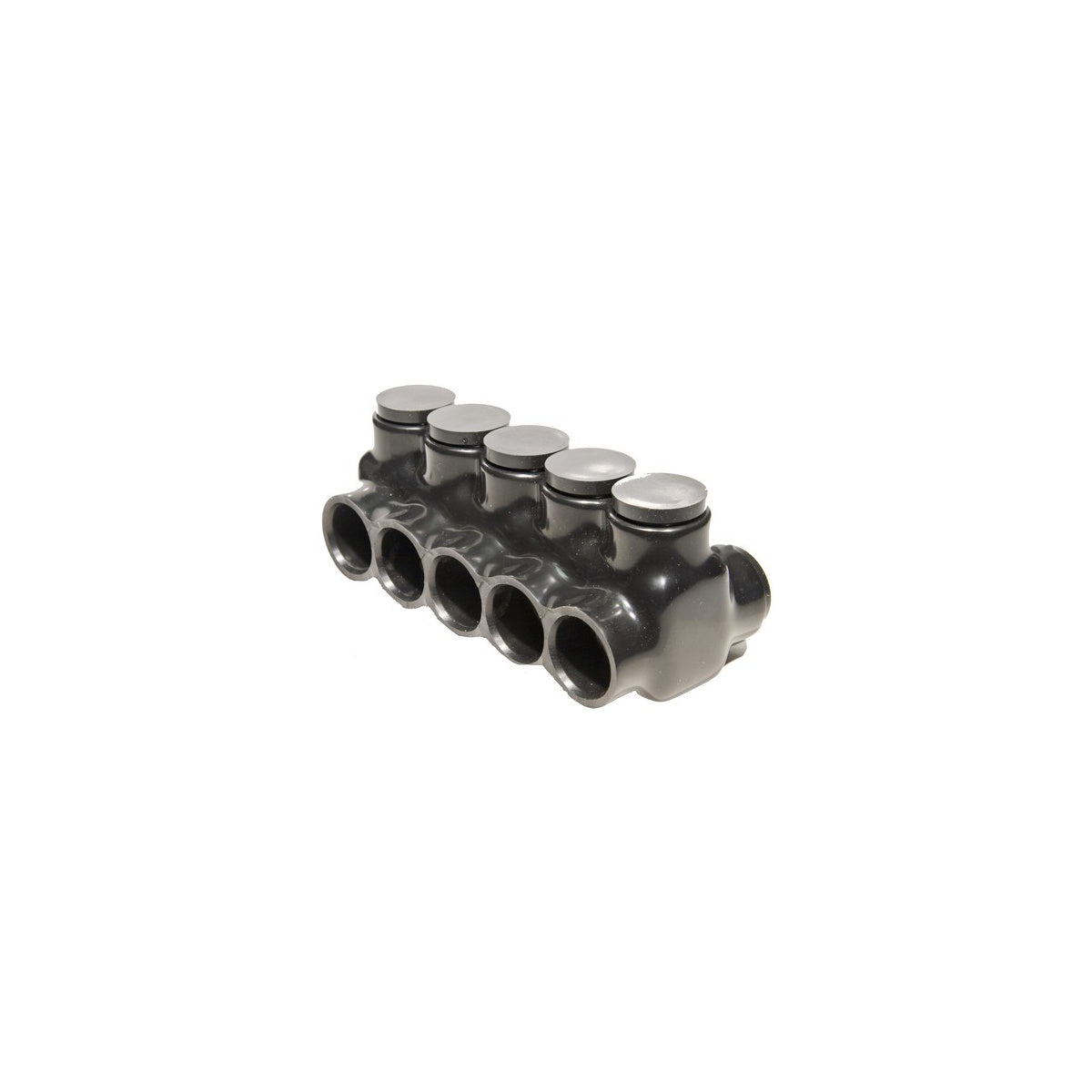

Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 4 - 14
SKU: #281258
Part: #97615
UPC: 601986976152
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 4 - 14
SKU: #281258
Part: #97615
UPC: 601986976152
Description
Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 4 - 14 | Electrical Power Connector
This Black Insulated Multi-Cable Connector is designed for efficient electrical power distribution, providing a reliable solution for splicing and tapping multiple conductors. Manufactured with 6061-T6 plated aluminum and featuring black abrasion- and chemical-resistant PVC insulation, it supports dual directional entry for multi-cable applications. Suitable for use by electrical distributors and switchgear suppliers, it is ideal for gutter, raceway, and enclosure power distribution systems.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 40°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 0.1800 lbs
Features
- Multi-Tap Dual Directional Conductor Entry
- Pre-filled Oxide Inhibitor for enhanced conductivity and corrosion resistance
- Aluminum Mechanical Connector suitable for AL/CU dual rated applications
- Black PVC insulation provides abrasion and chemical resistance
- Designed for quick and easy electric splicing and tapping
