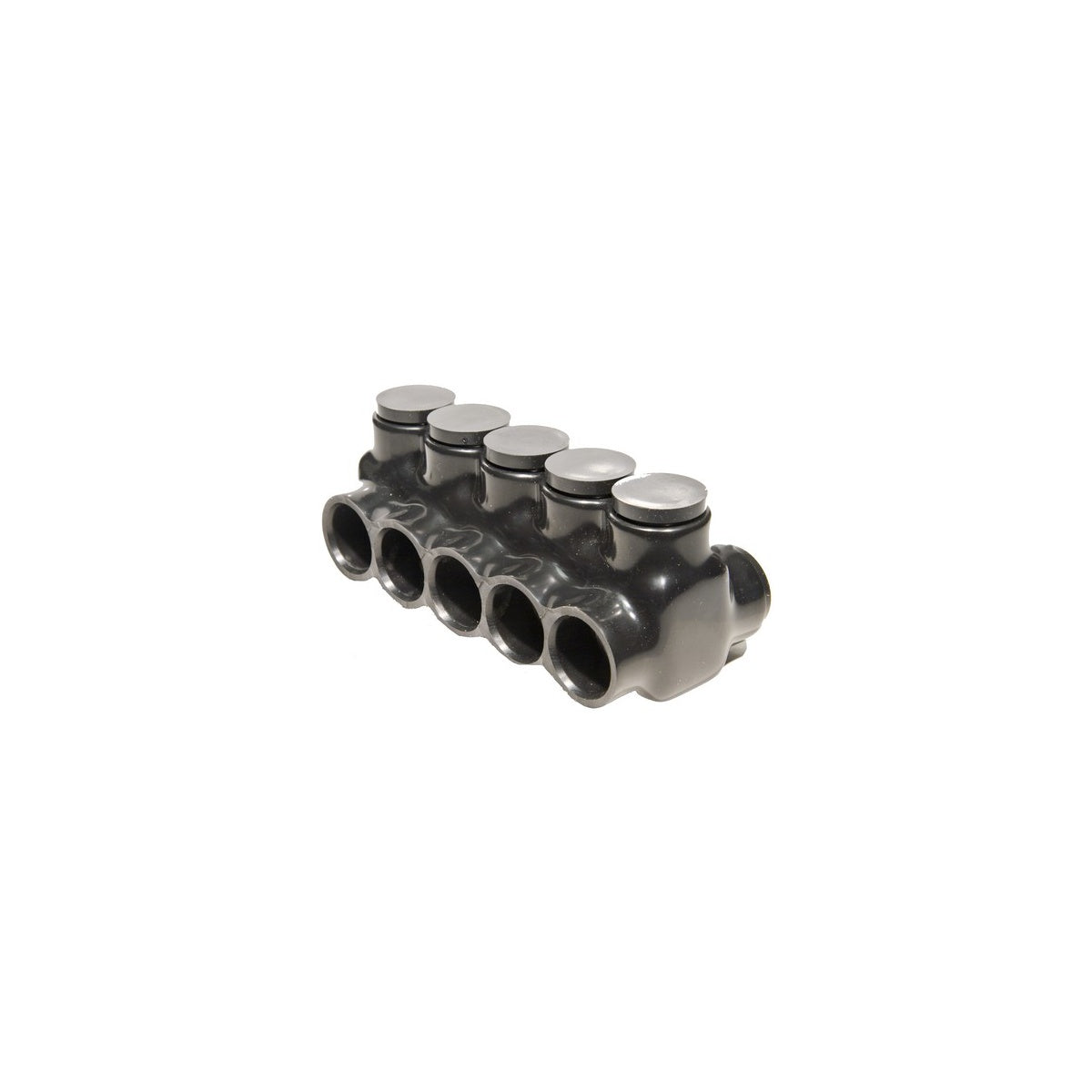

Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 3/0 - 6 Electrical Connector

This black insulated multi-cable connector by Morris Products is designed for electrical distributors and switchgear suppliers requiring reliable power distribution solutions. It features dual side entry with five ports, supporting cable sizes from 3/0 to 6 AWG, enabling efficient splicing and tapping of electrical conductors in gutter, raceway, and enclosure applications.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 3/0 - 6 AWG
• Temperature Rating: 40°F - 194°F
• Voltage Rating: 600V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Weight: 0.78 lbs

Features

• Multi-tap dual directional conductor entry simplifies electrical splicing and tapping
• Aluminum mechanical connector suitable for both aluminum and copper conductors (AL/CU dual rated)
• Pre-filled oxide inhibitor enhances corrosion resistance and connection reliability
• Black PVC insulation provides abrasion and chemical resistance
• Designed for use in power distribution within gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
