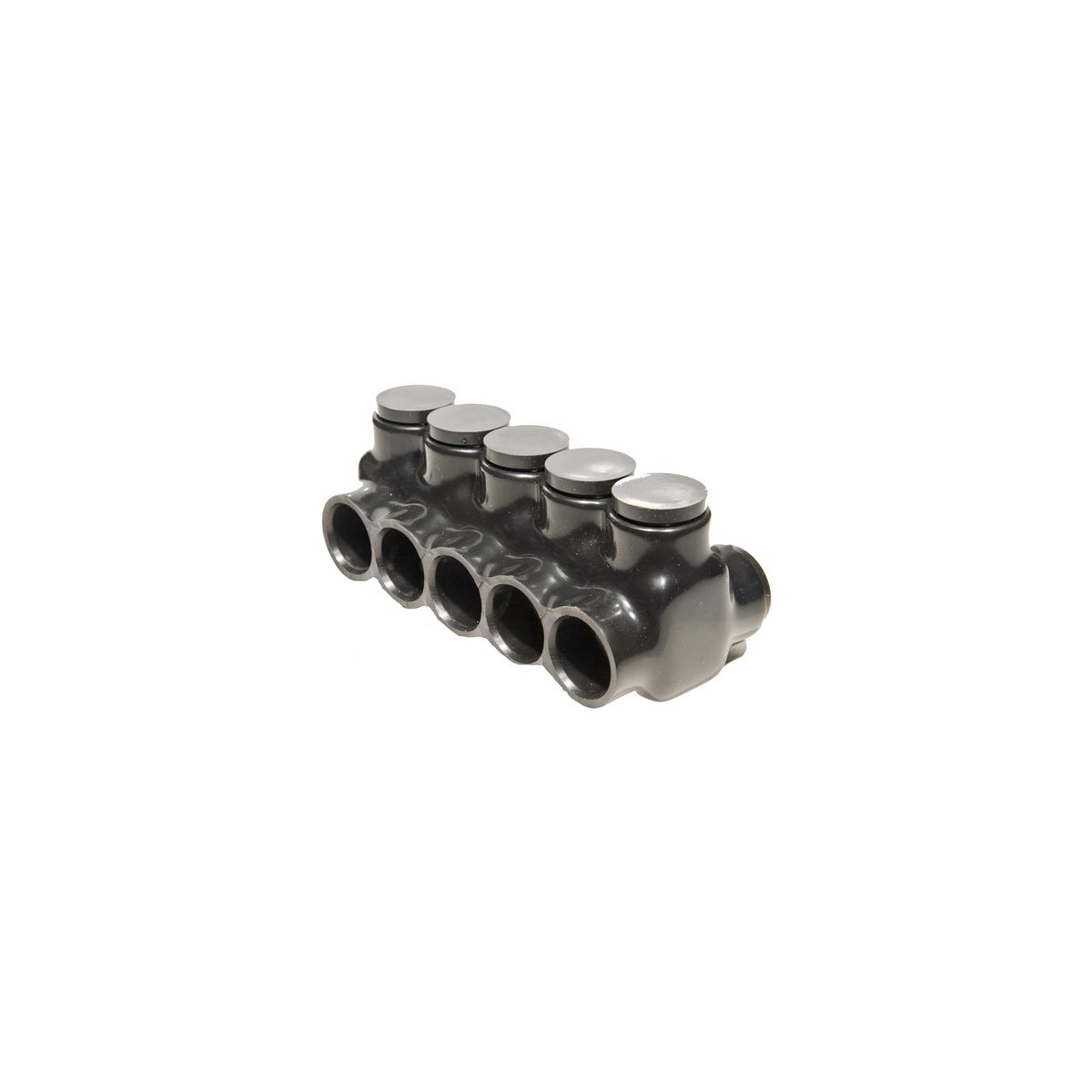

Black Insulated Multi-Cable Connector - Dual Entry 5 Ports 2/0 - 6 Electrical Connector

This black insulated multi-cable connector is designed for electrical power distribution applications, providing a reliable solution for splicing and tapping multiple conductors. Manufactured with durable 6061-T6 plated aluminum and protected by abrasion- and chemical-resistant black PVC insulation, it supports dual directional entry for efficient cable management. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 2/0 - 6 AWG
• Voltage Rating: 600 V
• Temperature Rating: 40¬∞F - 194¬∞F
• Certifications: UL 486B Dual Rated CU ANSI C119.4, cUL Listed
• Product Weight: 0.7800 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for easy splicing and tapping
• Pre-filled Oxide Inhibitor to ensure long-term conductivity
• Aluminum mechanical connector suitable for both aluminum and copper conductors
• Black insulated design for enhanced durability and safety
• Compatible with gutter, raceway, and enclosure power distribution systems

Downloads & Links

• Spec Sheet
