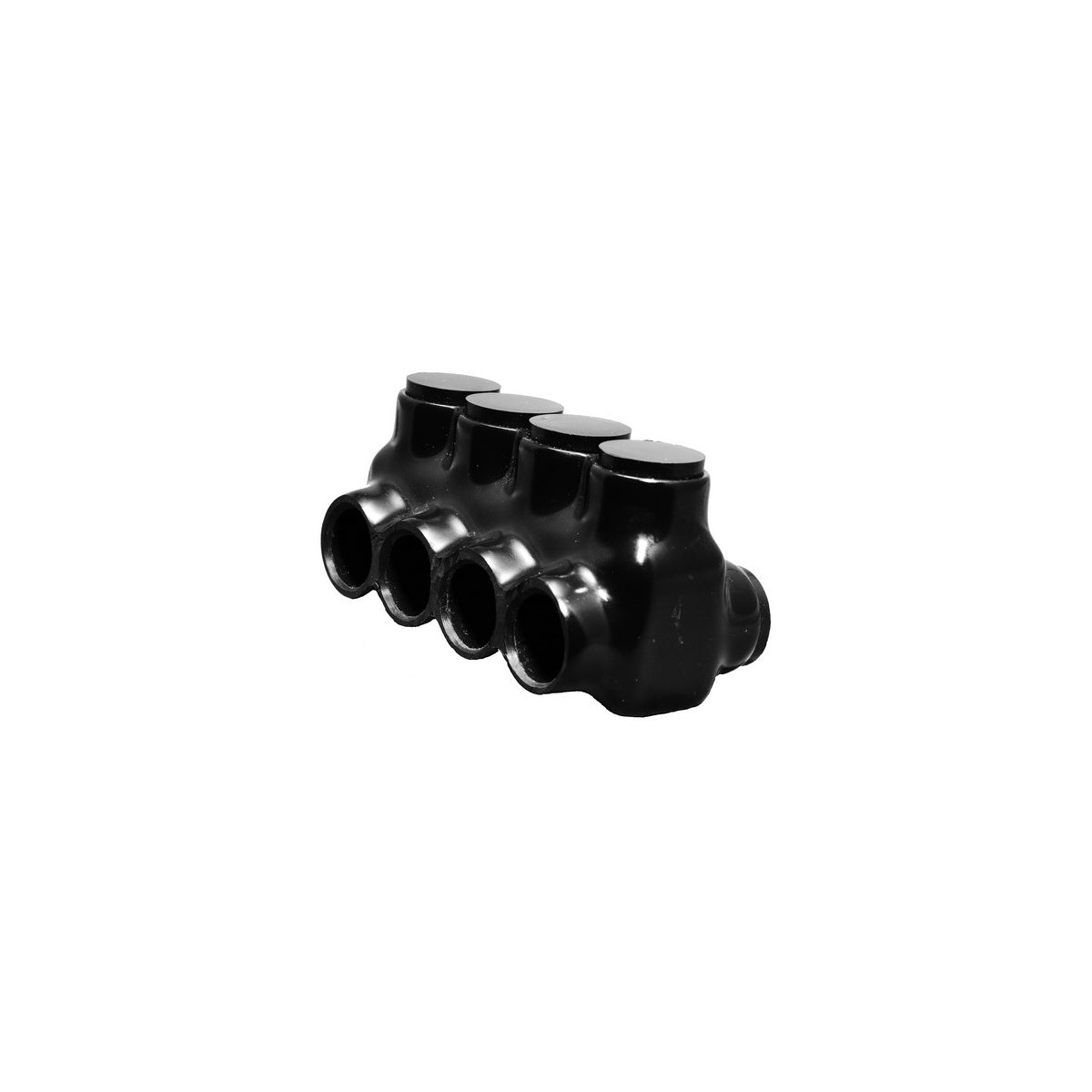

Black Insulated Multi-Cable Connector - Dual Entry 4 Ports 350 - 6 | Electrical Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions requiring reliable wire splicing and tapping. Featuring dual side entry with 4 ports, it supports wire ranges from 350 to 6 AWG, making it suitable for power distribution applications in gutters, raceways, and enclosures. The connector is constructed from durable 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, providing secure and insulated mechanical connections for aluminum and copper conductors.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Ports: 4
• Wire Range: #6 to 350 MCM
• Temperature Rating: 49°F to 194°F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.1550 lbs

Features

• Multi-Tap Dual Directional Conductor Entry for flexible splicing and tapping
• Pre-filled Oxide Inhibitor to prevent corrosion
• AL/CU dual rated for compatibility with aluminum and copper conductors
• Black PVC insulation provides electrical isolation and mechanical protection
• Suitable for use in gutters, raceways, and enclosure power distribution

Downloads & Links

• Spec Sheet
