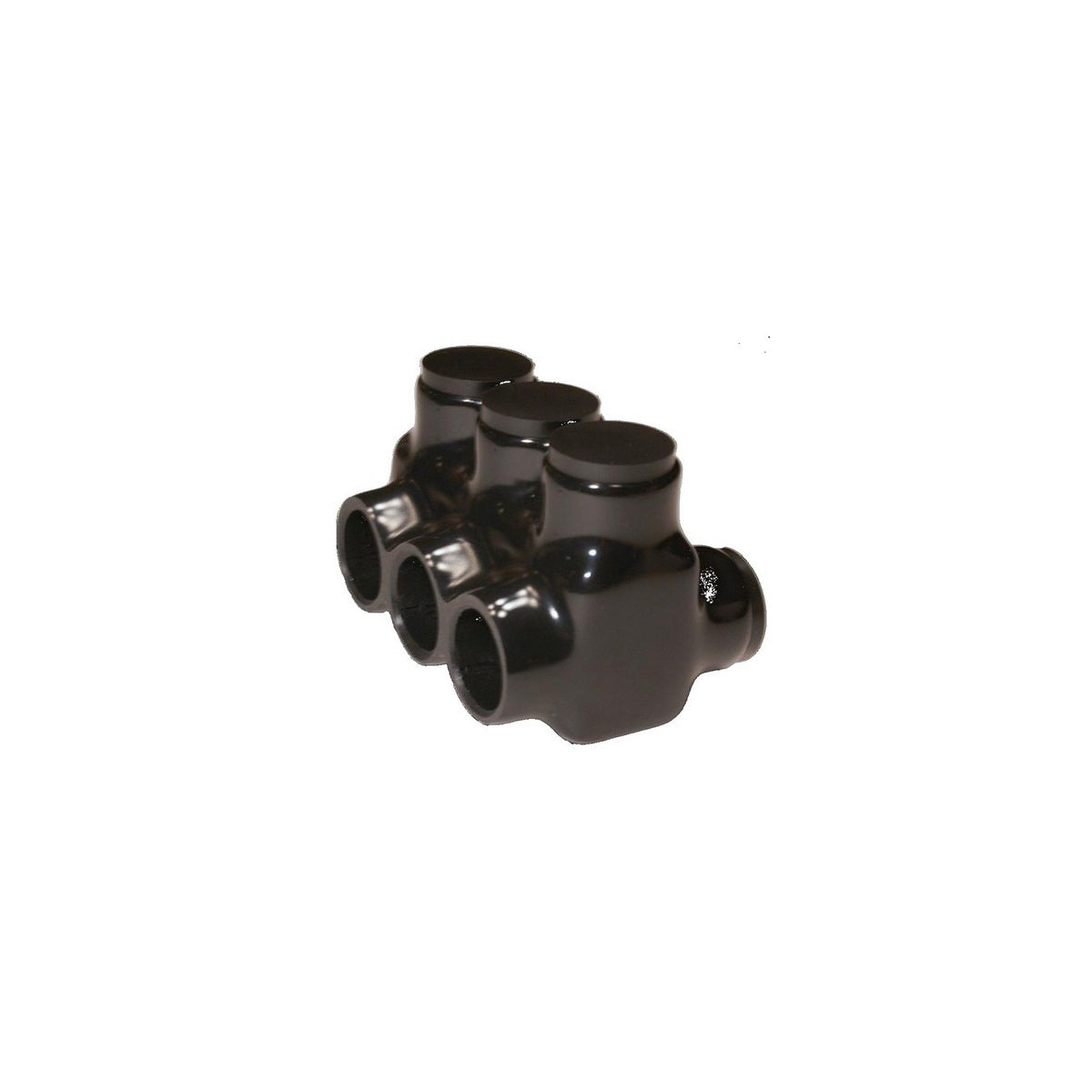

Black Insulated Multi-Cable Connector - Dual Entry 3 Ports 2 - 14

This Black Insulated Multi-Cable Connector is designed for electrical power distribution applications, providing a reliable solution for splicing and tapping multiple conductors. Manufactured by Morris Products, it features dual side entry with three ports supporting wire sizes from 2 to 14 AWG. The connector is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient wire and cable connections in gutter, raceway, and enclosure systems.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #2 - 14 AWG
• Temperature Rating: 40¬∞F - 194¬∞F
• Voltage Rating: 600V
• Amp Rating: To Conductor
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 0.18 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap dual directional conductor entry for simplified splicing and tapping
• Aluminum construction suitable for both aluminum and copper conductors (AL/CU dual rated)
• Prefilled with oxide inhibitor to ensure long-term electrical performance
• Designed for use in gutter, raceway, and enclosure power distribution systems

Downloads & Links

• Spec Sheet
