Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 600 - 250
SKU: #281471
Part: #97672
UPC: 601986976725
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 600 - 250
SKU: #281471
Part: #97672
UPC: 601986976725
Description

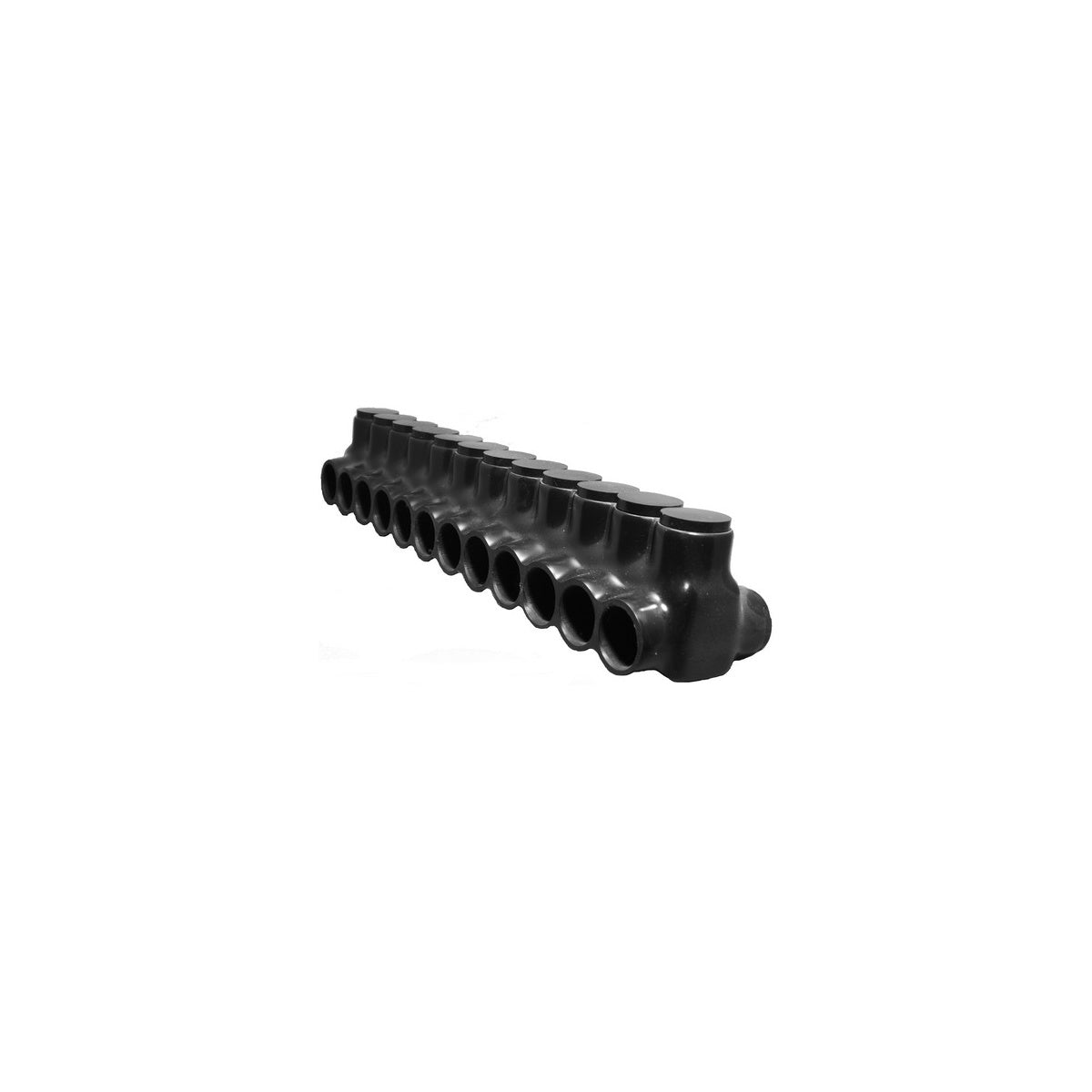

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 600 - 250 | Electrical Connector
This Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical power distribution applications. It features dual directional entry for multi-conductor splicing and tapping, making it suitable for use by electrical distributors and switchgear suppliers. The connector supports wire sizes from #14 up to 750 MCM and is dual rated for aluminum and copper conductors, ensuring compatibility with a wide range of wire and cable installations. Its black abrasion and chemical-resistant PVC insulation provides durability in gutter, raceway, and enclosure environments.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F to 194°F
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 4.6950 lbs
Features
- Multi-tap dual directional conductor entry simplifies splicing and tapping
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled oxide inhibitor for enhanced electrical conductivity
- Black insulated mechanical connector for safety and durability
- Designed for gutter, raceway, and enclosure power distribution applications
