Morris Products

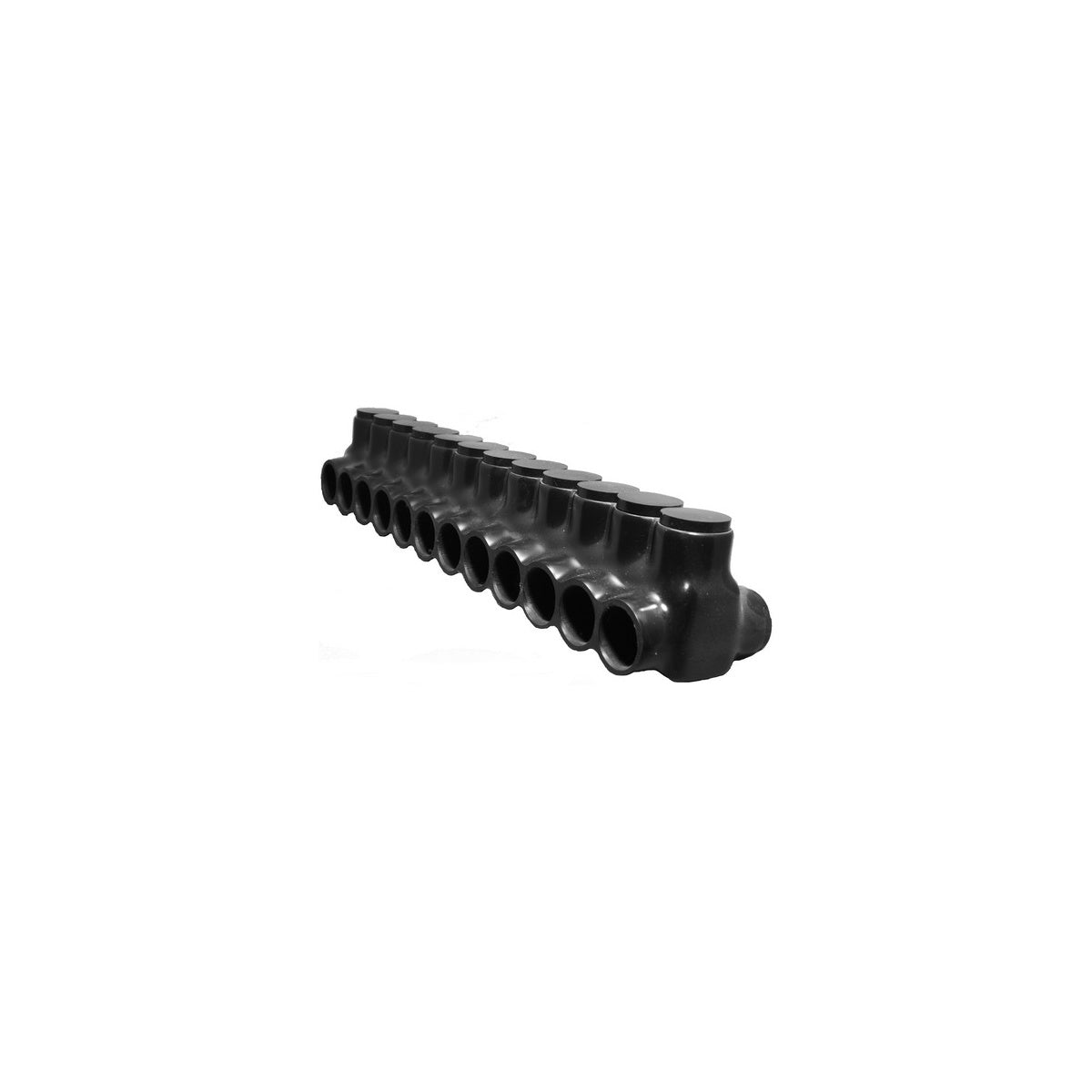

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 500 - 4
SKU: #281592
Part: #97702
UPC: 601986977029
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 500 - 4
SKU: #281592
Part: #97702
UPC: 601986977029
Description
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 500 - 4 Electrical Connector
This Black Insulated Multi-Cable Connector is designed for efficient electrical splicing and tapping applications. Featuring dual side entry with 12 ports, it is suitable for power distribution in gutters, raceways, and enclosures. Manufactured from durable 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, it supports a wide wire range and is dual rated for aluminum and copper conductors. Ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable connection solutions.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- Certifications: UL 486B Dual Rated CU ANSI C119.4, cUL Certified
- Product Weight: 4.6950 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry simplifies splicing and tapping
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled oxide inhibitor for corrosion protection
- Designed for gutter, raceway, and enclosure power distribution systems
