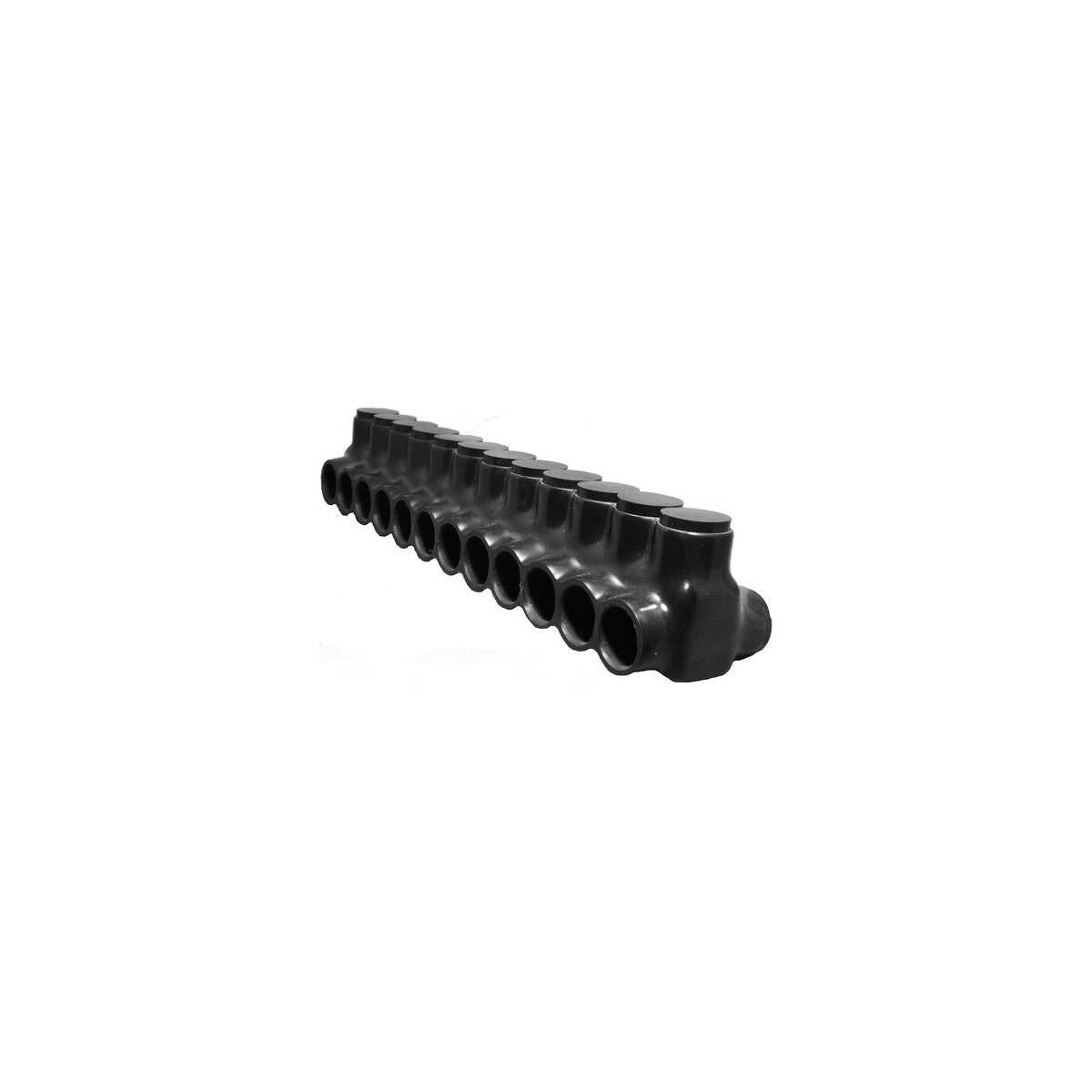

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 350 - 6 Electrical Connector

This Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical power distribution with dual directional entry for multi-conductor splicing and tapping. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connection solutions in gutters, raceways, and enclosures. The connector features robust black PVC insulation and is dual rated for aluminum and copper conductors, supporting wire sizes from #14 to 750 MCM.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Temperature Rating: 49°F to 194°F
• Voltage Rating: 600V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL Certification: Yes
• Product Weight: 3.33 lbs

Features

• Insulated mechanical connector with black PVC insulation for durability
• Multi-tap dual directional conductor entry simplifies wiring configurations
• Aluminum mechanical connector suitable for both aluminum and copper conductors
• Pre-filled oxide inhibitor to enhance electrical conductivity and prevent corrosion
• Designed for power distribution applications in gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
