Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 3/0 - 6
SKU: #281550
Part: #97692
UPC: 601986976923
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 3/0 - 6
SKU: #281550
Part: #97692
UPC: 601986976923
Description

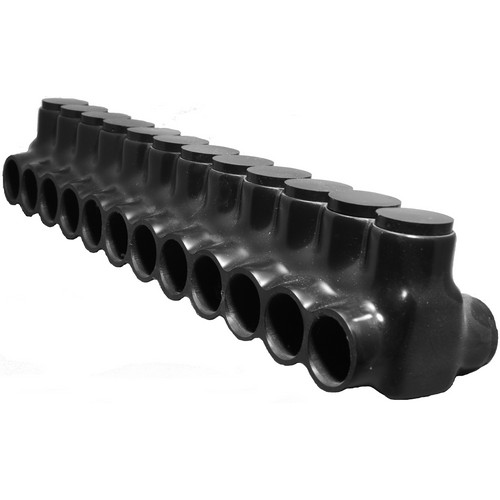

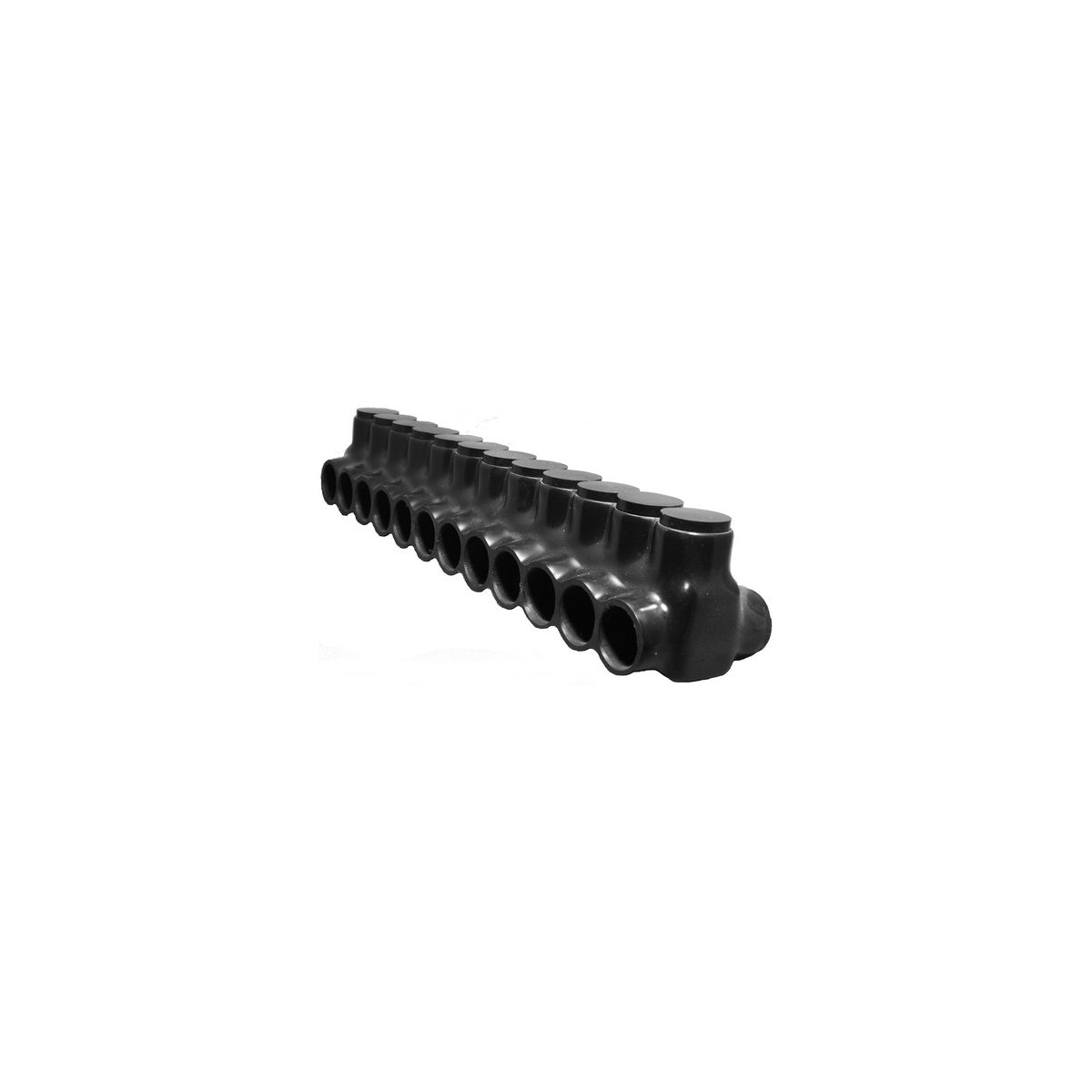

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 3/0 - 6 Electrical Connector
This black insulated multi-cable connector is designed for electrical power distribution, providing a reliable solution for splicing and tapping multiple conductors in dual directional entry configurations. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, it is suitable for use by electrical distributors and switchgear suppliers in gutter, raceway, and enclosure power distribution applications. The connector supports wire ranges from 3/0 to 6 AWG and is dual rated for aluminum and copper conductors.
Specifications
- Material: 6061-T6 Aluminum
- Color: Black
- Wire Range: 3/0 - 6 AWG
- Insulation: Black Abrasion & Chemical Resistant PVC
- Temperature Rating: 49°F to 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 1.8 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry for 12 ports
- Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Designed for easy, fast, and reliable electrical splicing and tapping
