Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 250 - 6
SKU: #281405
Part: #97652
UPC: 601986976527
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 250 - 6
SKU: #281405
Part: #97652
UPC: 601986976527
Description

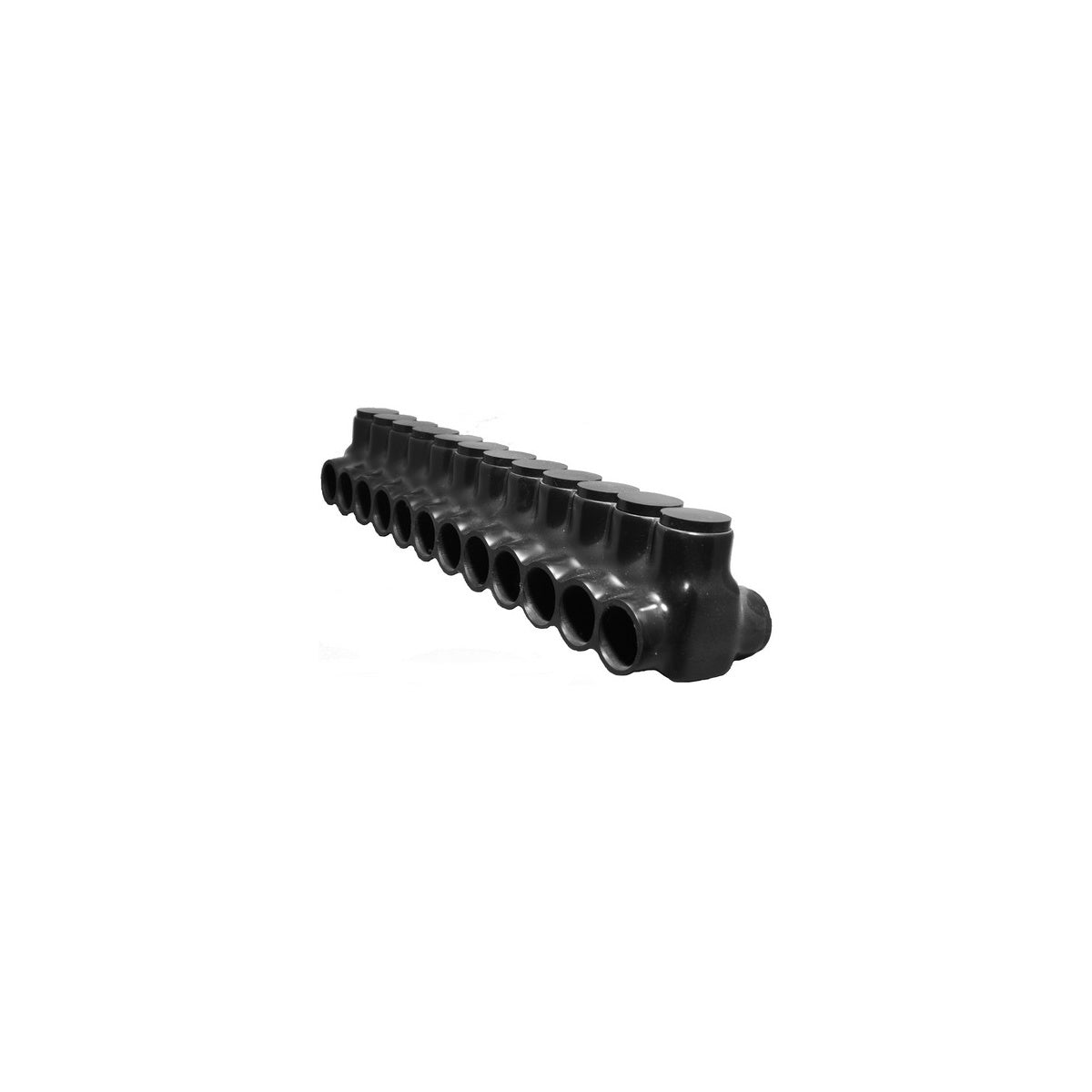

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 250 - 6
This Black Insulated Multi-Cable Connector is designed for efficient electrical power splicing and tapping with dual side entry for multi-directional conductor connections. Manufactured from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, it is suitable for wire and cable applications in power distribution systems. This connector supports AL/CU dual rating and is ideal for use by electrical distributors and switchgear suppliers in gutter, raceway, and enclosure power distribution installations.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black Abrasion & Chemical Resistant PVC
- Wire Range: #14 - 750 MCM
- Temperature Rating: 49°F - 194°F
- Voltage Rating: 600 V
- Amp Rating: To Conductor
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 2.0850 lbs
Features
- Insulated Mechanical Connector with Black PVC Insulation
- Multi-Tap Dual Directional Conductor Entry for simplified splicing and tapping
- Aluminum Mechanical Connector suitable for AL/CU conductors
- Prefilled with Oxide Inhibitor to prevent corrosion
- Designed for gutter, raceway, and enclosure power distribution applications
