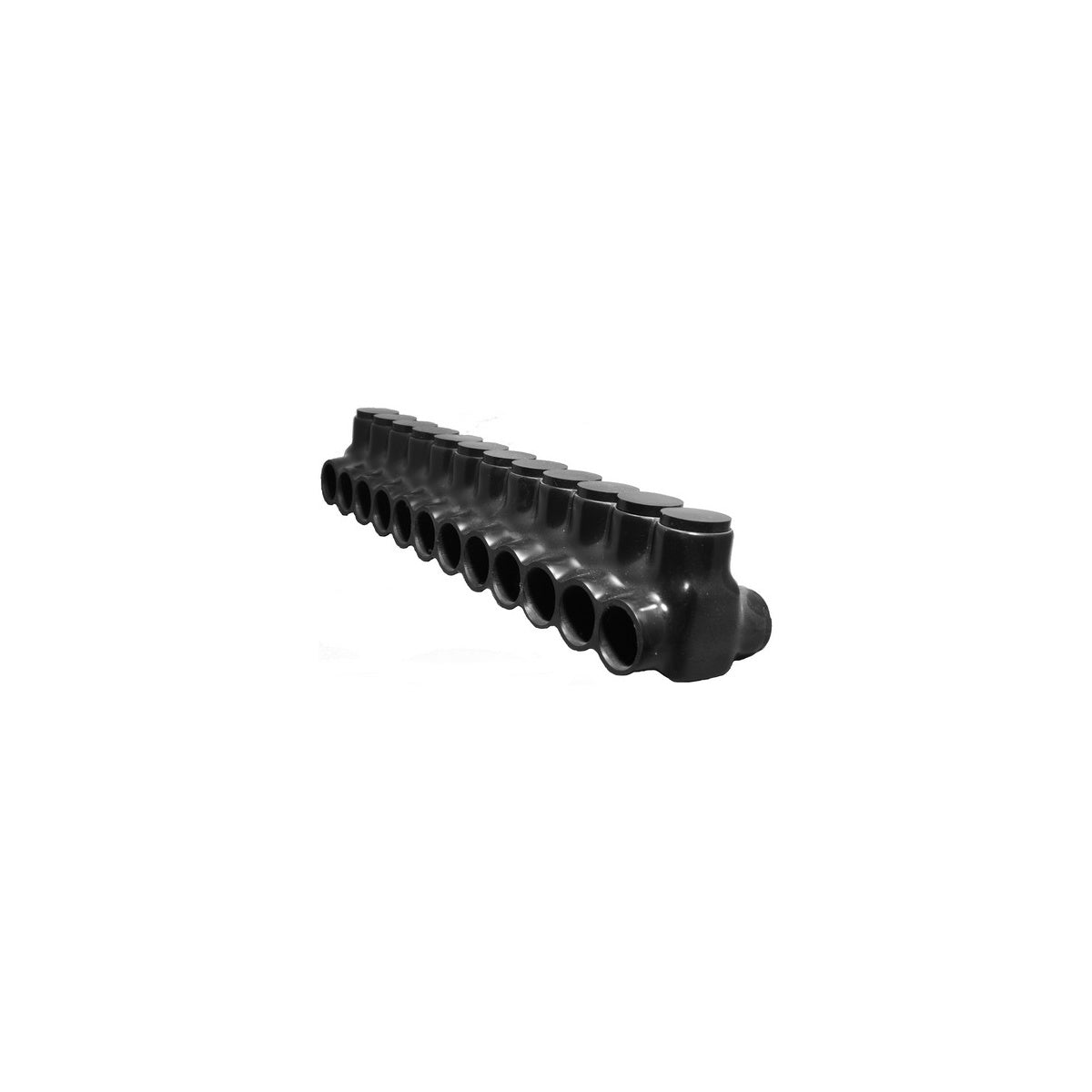

Black Insulated Multi-Cable Connector - Dual Entry 12 Ports 2/0 - 6 Electrical Connector

This Black Insulated Multi-Cable Connector is designed for electrical distributors and lighting solutions providers requiring reliable wire and cable splicing and tapping. Featuring a dual side entry with 12 ports, it supports conductor sizes ranging from 2/0 to 6 AWG, making it suitable for power distribution applications in gutters, raceways, and enclosures. The connector is constructed from durable 6061-T6 plated aluminum with black abrasion and chemical-resistant PVC insulation, ensuring long-lasting performance and safety in electrical installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 2/0 - 6 AWG
• Temperature Rating: 40°F - 194°F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.8 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap dual directional conductor entry for simplified splicing and tapping
• Aluminum mechanical connector suitable for AL/CU dual rated applications
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Designed for use in gutter, raceway, and enclosure power distribution systems

Downloads & Links

• Spec Sheet
