Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 600 - 250
SKU: #281464
Part: #97670
UPC: 601986976701
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 600 - 250
SKU: #281464
Part: #97670
UPC: 601986976701
Description

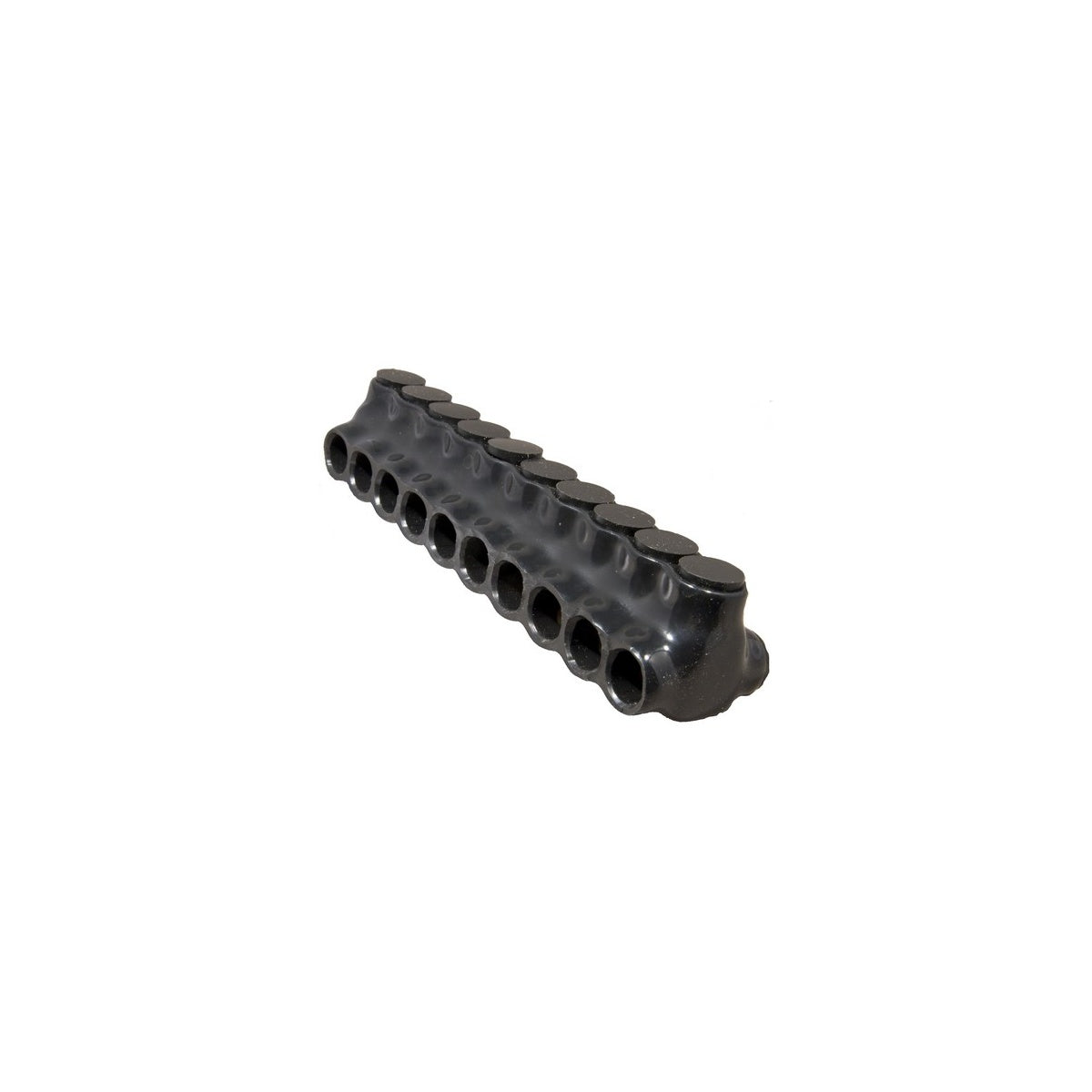

Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 600 - 250 | Electrical Power Connector
This black insulated multi-cable connector is designed for electrical distributors and wire and cable applications requiring reliable power connections. Featuring dual side entry with 10 ports, it simplifies electric splicing and tapping in power distribution systems. The connector is suitable for use in gutters, raceways, and enclosures, making it a practical choice for lighting solutions and switchgear suppliers.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: #14 to 750 MCM
- Voltage Rating: 600 V
- Temperature Rating: 49°F to 194°F
- Amp Rating: To conductor
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL: Yes
- Product Weight: 3.9150 lbs
Features
- Insulated mechanical connector with black PVC insulation
- Multi-tap dual directional conductor entry for flexible wiring
- Aluminum mechanical connector suitable for AL/CU dual rated applications
- Prefilled oxide inhibitor to reduce corrosion and improve conductivity
- Designed for power distribution in gutters, raceways, and enclosures
