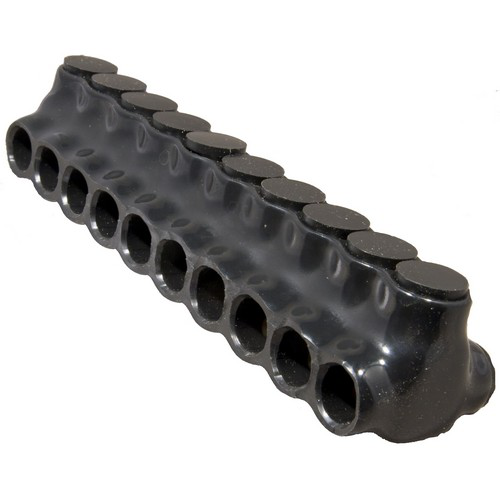

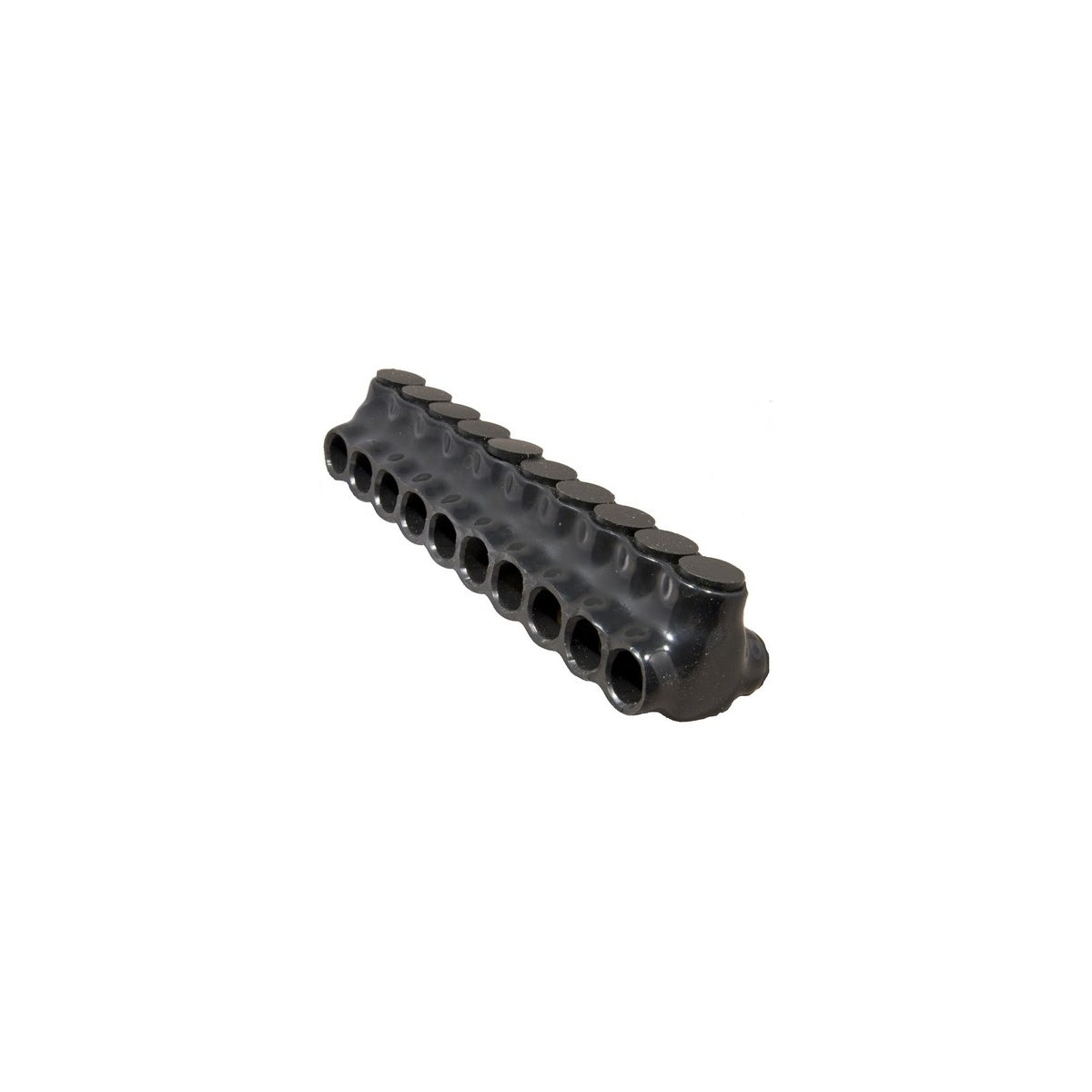

Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 500 - 4 Electrical Connector

This Black Insulated Multi-Cable Connector is designed for efficient electrical power distribution, providing dual directional entry for multi-conductor splicing and tapping. Suitable for use by electrical distributors and switchgear suppliers, it facilitates secure connections in gutter, raceway, and enclosure applications. The connector supports a wide wire range and is rated for up to 600 volts, making it a reliable component in lighting solutions and wire and cable installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black abrasion and chemical resistant PVC
• Wire Range: #14 - 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 40¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL Certification: Yes
• Product Weight: 3.9150 lbs
• Manufacturer Part #: 97700

Features

• Dual side entry for multi-tap conductor connections
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• AL/CU dual rated for aluminum and copper conductor compatibility
• Black insulated mechanical connector for safety and durability
• Suitable for power distribution in gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
