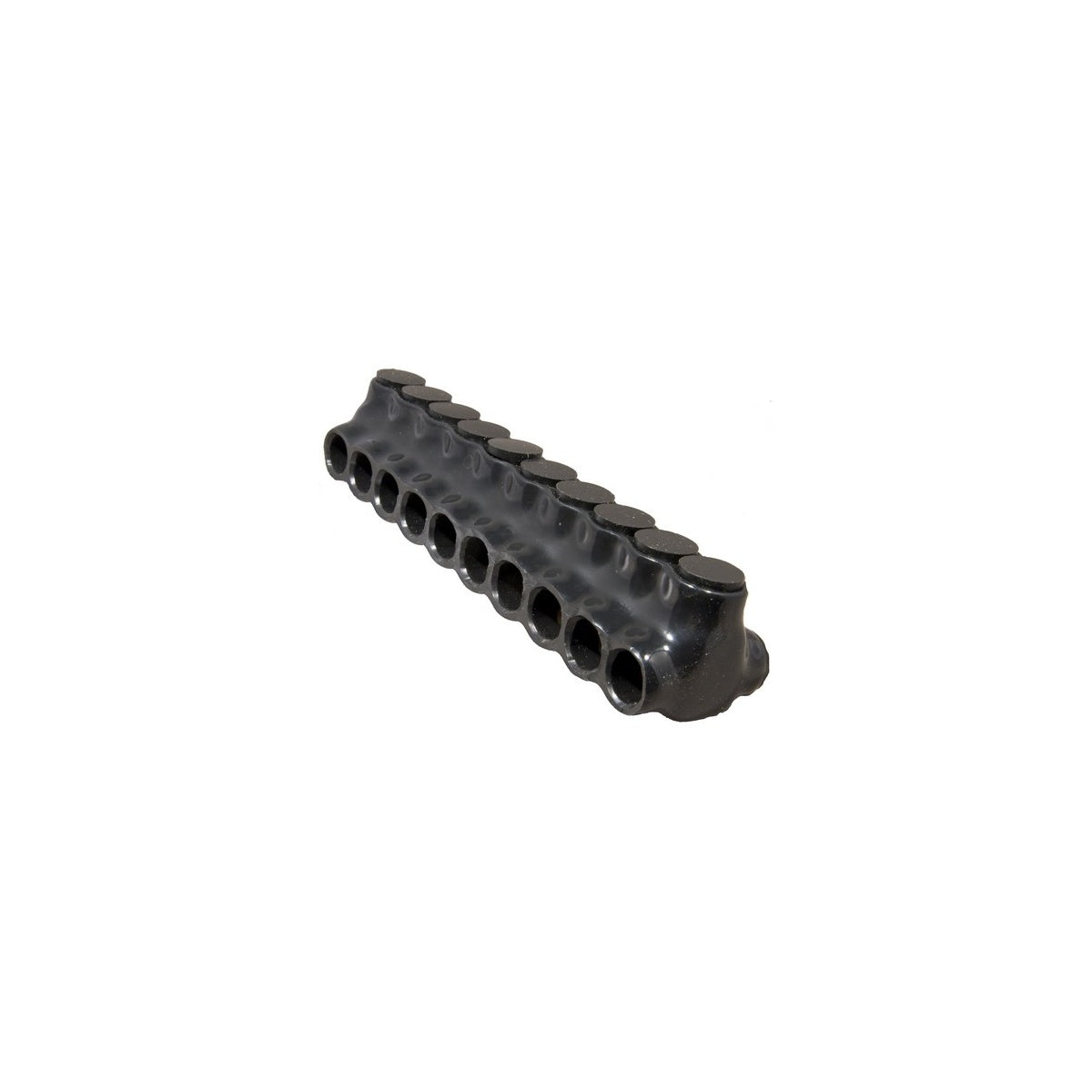

Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 350 - 6 | Electrical Connectors

This Black Insulated Multi-Cable Connector is designed for efficient electrical power splicing and tapping with dual side entry for multi-conductor cables. Manufactured by Morris Products, it serves as a reliable component for electrical distributors and lighting solutions providers requiring durable wire and cable connectors. The connector is suitable for use in gutter, raceway, and enclosure power distribution applications, supporting both aluminum and copper conductors.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Ports: 10
• Wire Range: #14 - 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 49¬∞F - 194¬∞F
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 2.79 lbs

Features

• Dual directional conductor entry for simplified splicing and tapping
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• AL/CU dual rated for compatibility with aluminum and copper conductors
• Black insulated mechanical connector providing electrical safety and durability
• Designed for use in electrical power distribution systems including gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
