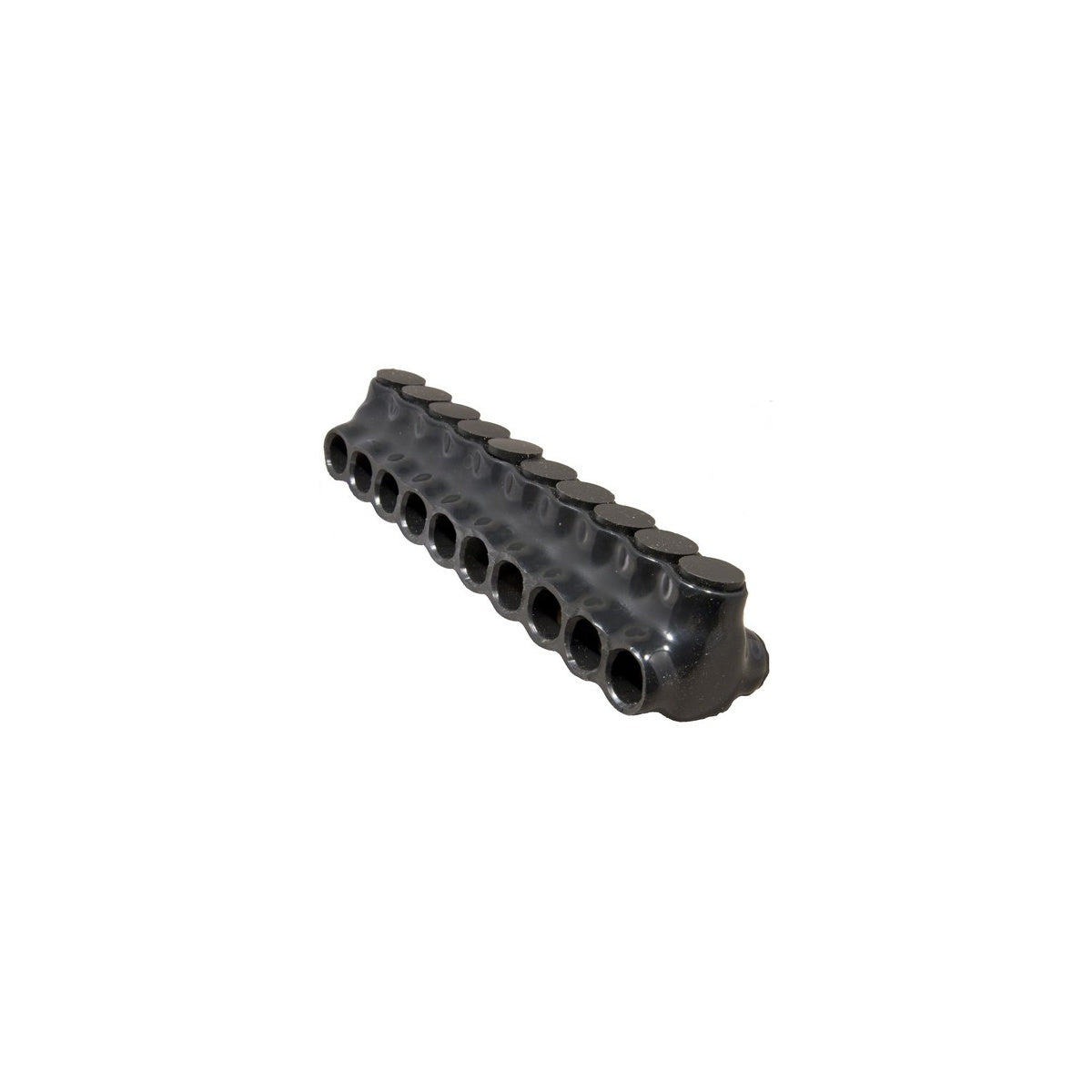

Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 3/0 - 6 Electrical Connector

This black insulated multi-cable connector is designed for electrical distributors and lighting solutions requiring reliable wire and cable splicing and tapping. Featuring dual side entry with 10 ports, it supports conductor sizes from 3/0 to 6 AWG, making it suitable for power distribution in gutters, raceways, and enclosures. Constructed from durable 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, this connector facilitates fast, easy, and secure electrical connections for switchgear suppliers and other electrical applications.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: 3/0 - 6 AWG
• Insulation: Black Abrasion & Chemical Resistant PVC
• Temperature Rating: 49¬∞F - 194¬∞F
• Voltage Rating: 600V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.5 lbs

Features

• Dual directional entry for multi-tap cable connections
• Pre-filled oxide inhibitor to prevent corrosion
• Aluminum mechanical connector suitable for aluminum and copper conductors
• Black PVC insulation for enhanced durability and safety
• Designed for quick and easy electrical splicing and tapping
• Compatible with wire sizes #14 to 750 MCM (specific model supports 3/0 - 6 AWG)

Downloads & Links

• Spec Sheet
