Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 250 - 6 | Electrical Connector

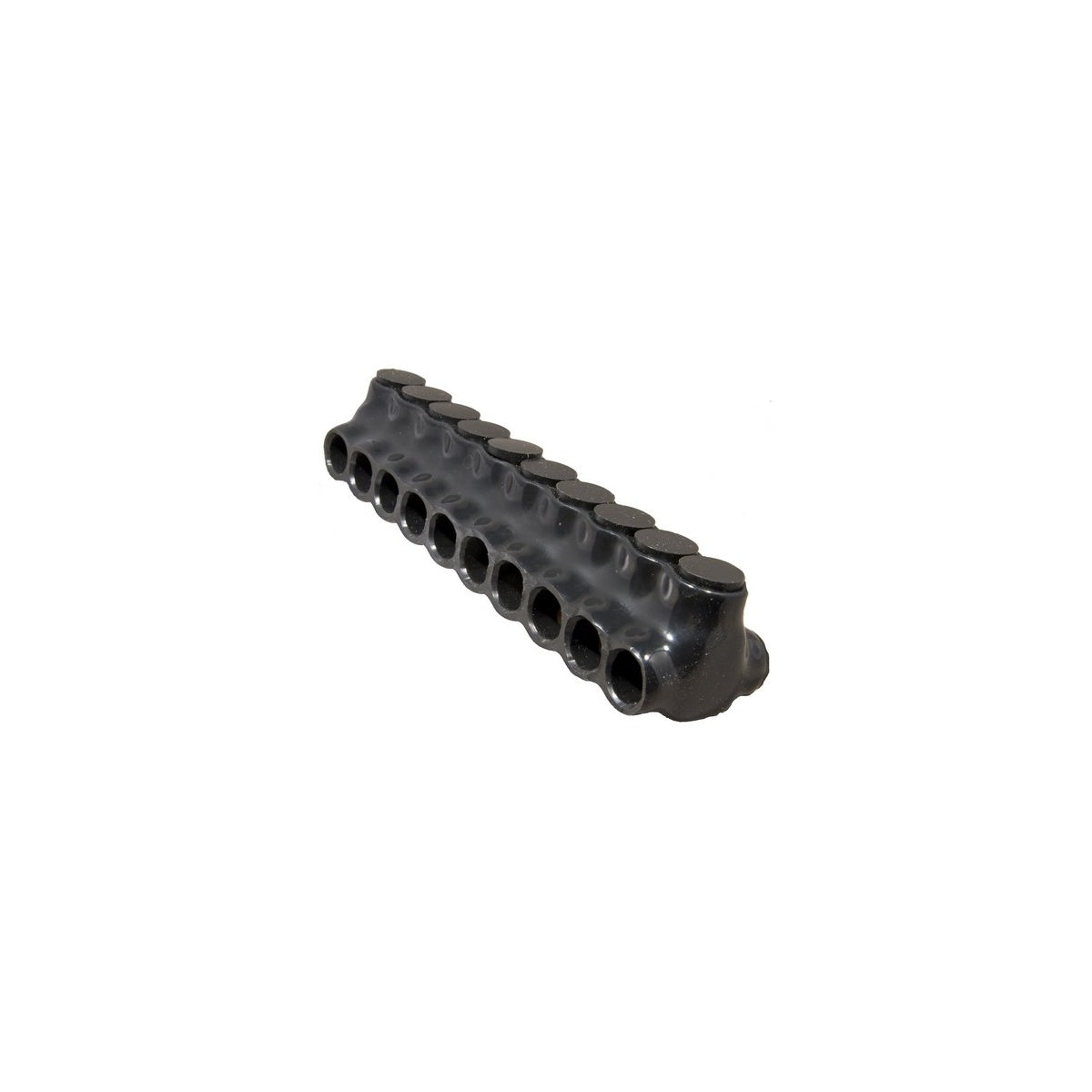

This Black Insulated Multi-Cable Connector by Morris Products is designed for efficient electrical power splicing and tapping. It features dual side entry with 10 ports, accommodating wire sizes from 250 to 6 AWG. Constructed from 6061-T6 plated aluminum with black abrasion- and chemical-resistant PVC insulation, this connector is suitable for power distribution in gutters, raceways, and enclosures. It is dual rated for aluminum and copper conductors, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: #14 - 750 MCM
• Voltage Rating: 600 V
• Temperature Rating: 40°F to 194°F
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL Listed: Yes
• Product Weight: 1.74 lbs

Features

• Dual side entry for multi-tap conductor connections
• Black insulated mechanical connector for durability and safety
• Pre-filled oxide inhibitor for enhanced conductivity and corrosion resistance
• Suitable for aluminum and copper conductors (AL/CU dual rated)
• Designed for use in gutters, raceways, and enclosure power distribution applications

Downloads & Links

• Spec Sheet
