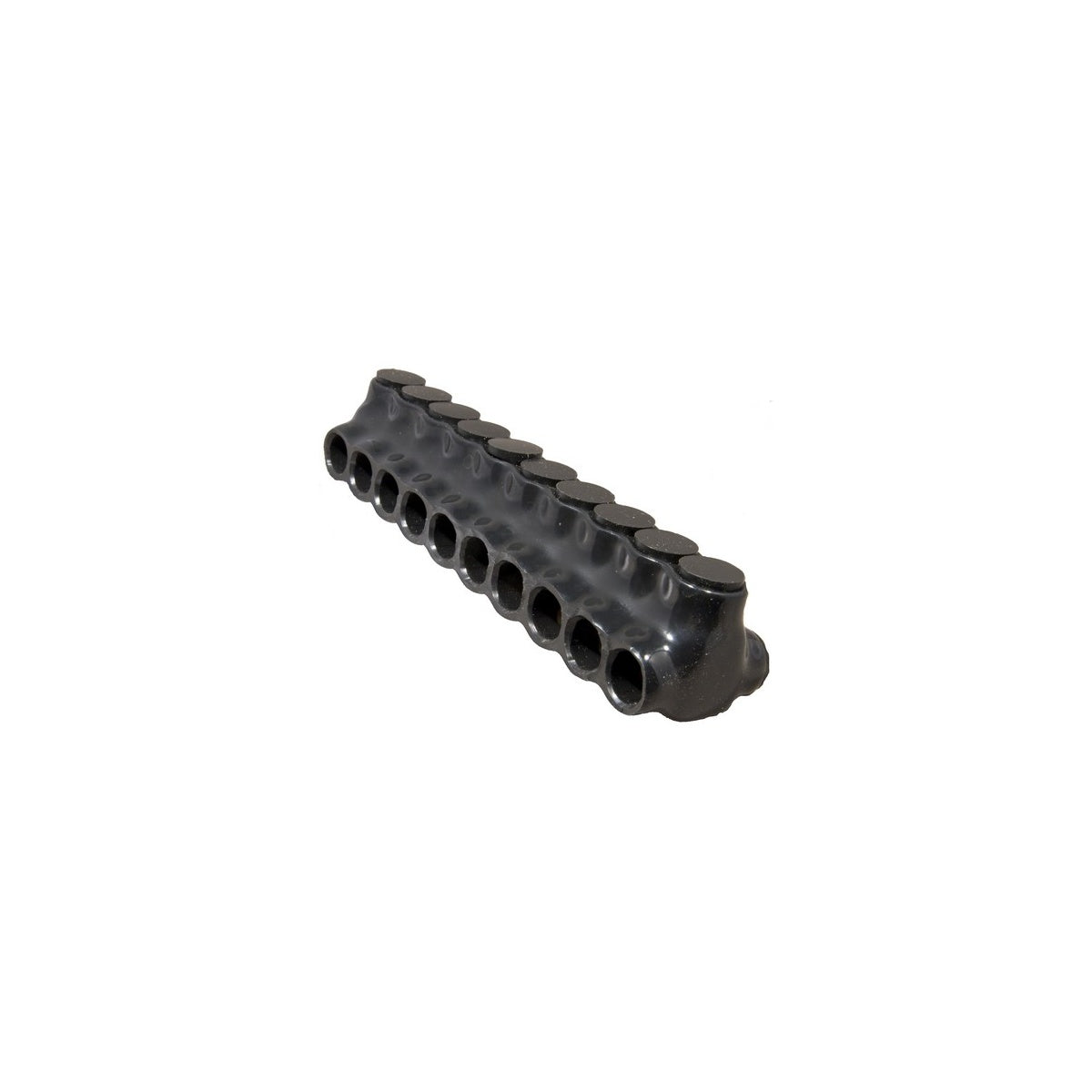

Black Insulated Multi-Cable Connector - Dual Entry 10 Ports 2/0 - 6 Electrical Connector

This Black Insulated Multi-Cable Connector by Morris Products is designed for electrical distributors and lighting solutions requiring reliable multi-conductor splicing and tapping. Featuring dual side entry with 10 ports, it supports wire sizes from 2/0 to 6 AWG, making it suitable for power distribution in gutters, raceways, and enclosures. The connector is constructed from durable 6061-T6 aluminum with black abrasion- and chemical-resistant PVC insulation, ensuring long-lasting performance in electrical wiring and switchgear applications.

Specifications

• Material: 6061-T6 Aluminum
• Color: Black
• Wire Range: 2/0 - 6 AWG
• Insulation: Black Abrasion & Chemical Resistant PVC
• Temperature Rating: 49°F to 194°F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU ANSI C119.4
• cUL: Yes
• Product Weight: 1.5 lbs

Features

• Insulated mechanical connector with black PVC insulation
• Multi-tap dual directional conductor entry simplifies splicing and tapping
• Aluminum mechanical connector suitable for aluminum and copper conductors (AL/CU dual rated)
• Pre-filled oxide inhibitor for corrosion protection
• Designed for power distribution in gutters, raceways, and enclosures

Downloads & Links

• Spec Sheet
