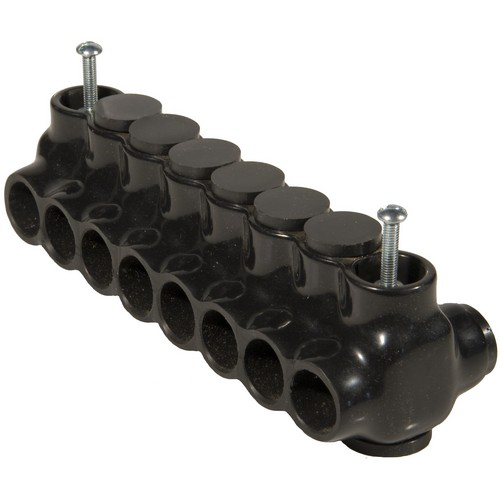

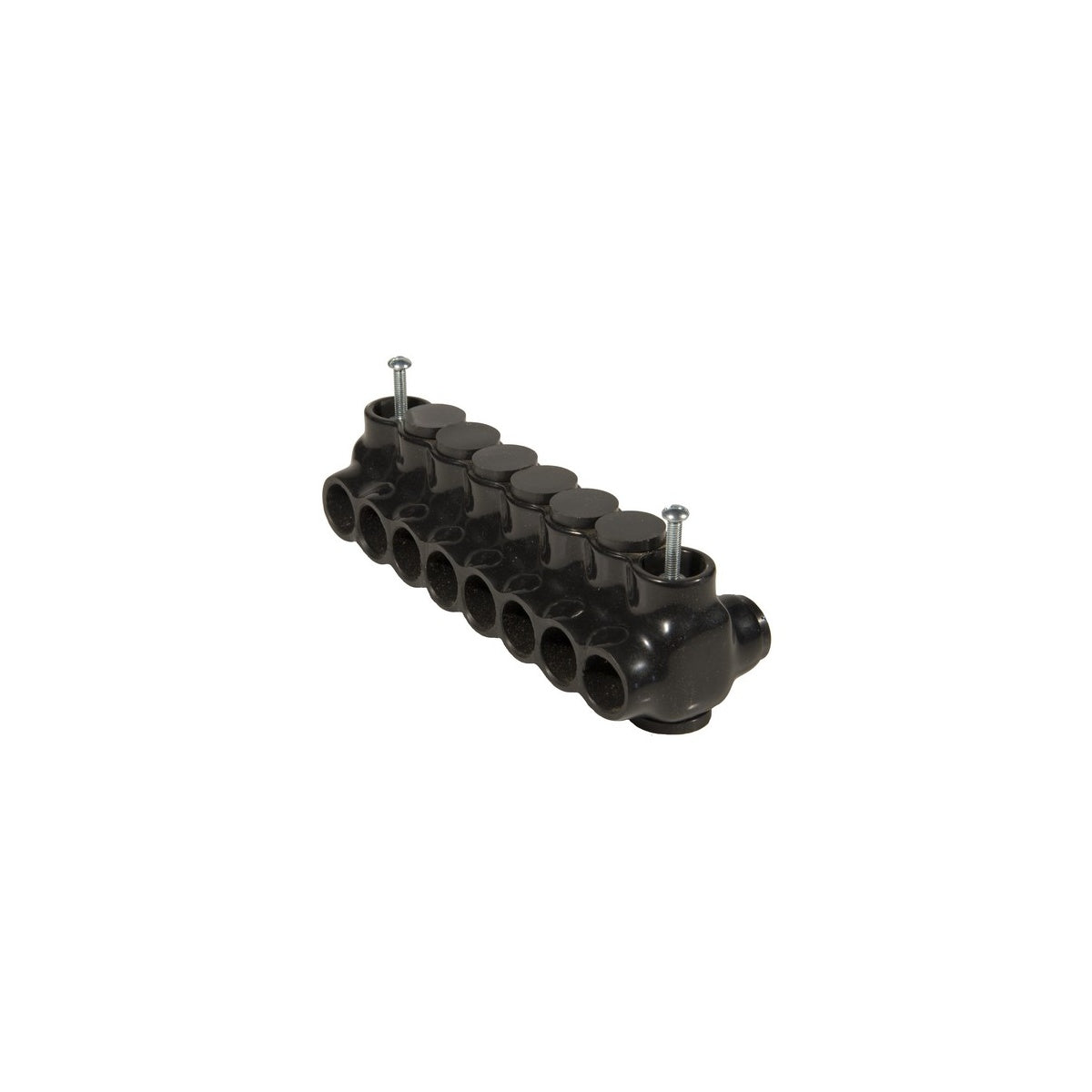

Black Insulated Mountable - Dual Entry 6 Ports 750 - 250 Electrical Connector

The Black Insulated Mountable Dual Entry Connector is designed for efficient electrical connections in power distribution applications such as gutters, raceways, and enclosures. This mechanical connector supports multi-cable bi-directional entry, suitable for wire and cable installations handled by electrical distributors and switchgear suppliers. Its robust construction with 6061-T6 aluminum and black abrasion-resistant PVC insulation ensures reliable performance in various lighting and electrical solutions.

Specifications

• Material: 6061-T6 Plated Aluminum
• Color: Black
• Insulation: Black Abrasion & Chemical Resistant PVC
• Wire Range: 750-250 MCM
• Number of Ports: 6
• Voltage Rating: 600V
• Temperature Rating: 49¬∞F - 194¬∞F
• Bolt Type: Hex Head
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL Certified: Yes
• Product Weight: 5.55 lbs

Features

• Mountable insulated mechanical connector with dual entry for multi-tap bi-directional conductor connections
• Includes mounting screws to secure the connector to enclosure or raceway
• Aluminum mechanical connector with prefilled oxide inhibitor, rated for both aluminum and copper conductors
• Suitable for gutter, raceway, and enclosure power distribution applications
