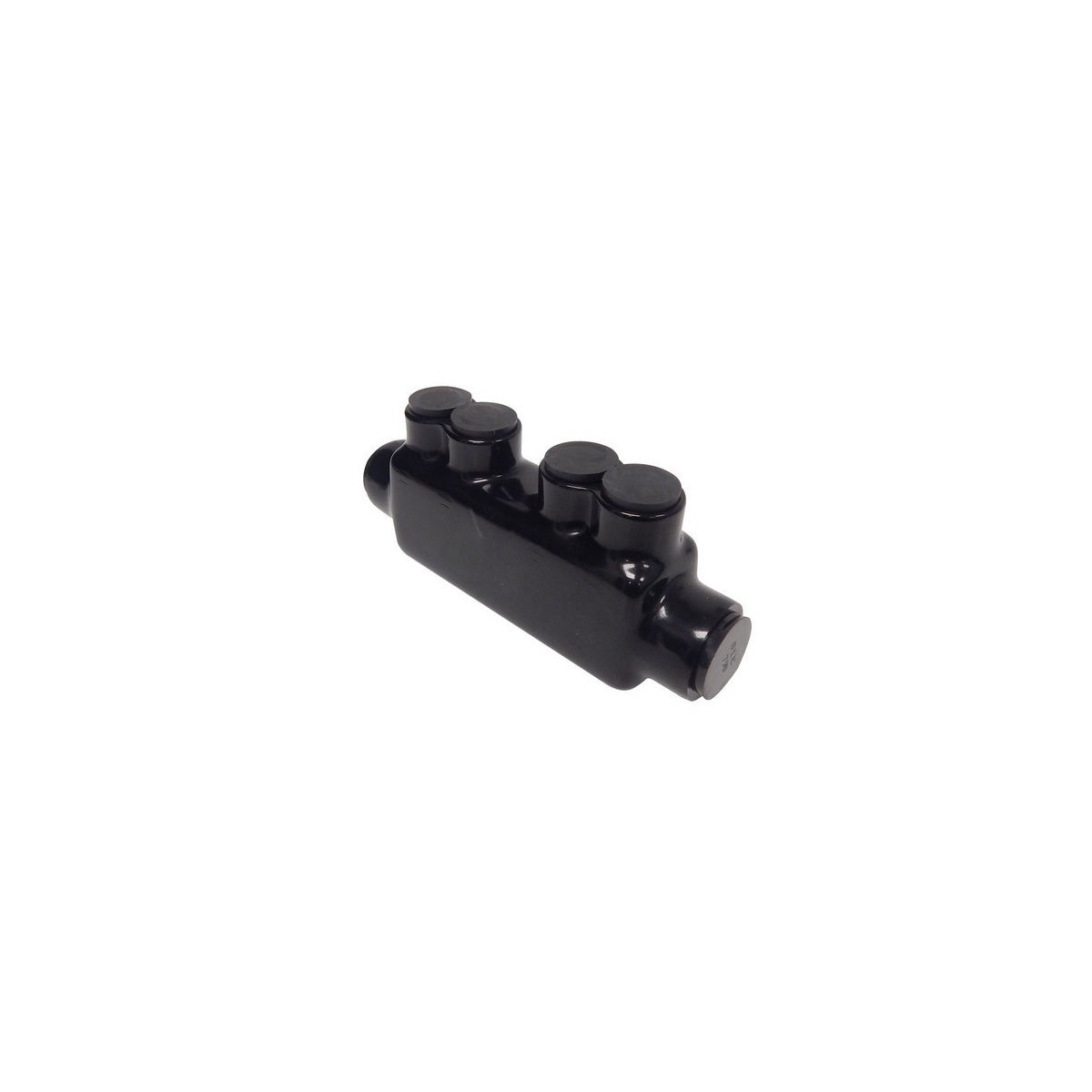

Black Insulated In-Line Splice 4 Set Screws 750 - 250 Electrical Connector

This insulated electrical power connector is designed for in-line splicing of wire sizes ranging from 250 to 750 MCM. Constructed from 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, it provides reliable mechanical connection for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers. The connector is dual rated for aluminum and copper conductors and is suitable for gutter, raceway, and enclosure power distribution installations.

Specifications

• Material: 6061-T6 Plated Aluminum
• Insulation: Clear Abrasion & Chemical Resistant PVC
• Bolt: Hex Head
• Wire Range: 250 - 750 MCM
• Temperature Rating: -49¬∞F to 194¬∞F
• Voltage Rating: 600 V
• UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
• cUL: Yes
• Product Weight: 2.25 lbs
• Color: Black
• Manufacturer Part #: 97028

Features

• Insulated Mechanical Connector with Black Insulation
• In-Line Through Splice Design
• Aluminum Mechanical Connector suitable for AL/CU conductors
• Prefilled with Oxide Inhibitor for enhanced conductivity and corrosion resistance
• Hex head bolt for secure fastening
• Applicable for gutter, raceway, and enclosure power distribution systems
