Morris Products
Black Insulated In-Line Splice 350 - 6
SKU: #280749
Part: #97022
UPC: 601986970228
Morris Products
Black Insulated In-Line Splice 350 - 6
SKU: #280749
Part: #97022
UPC: 601986970228
Description

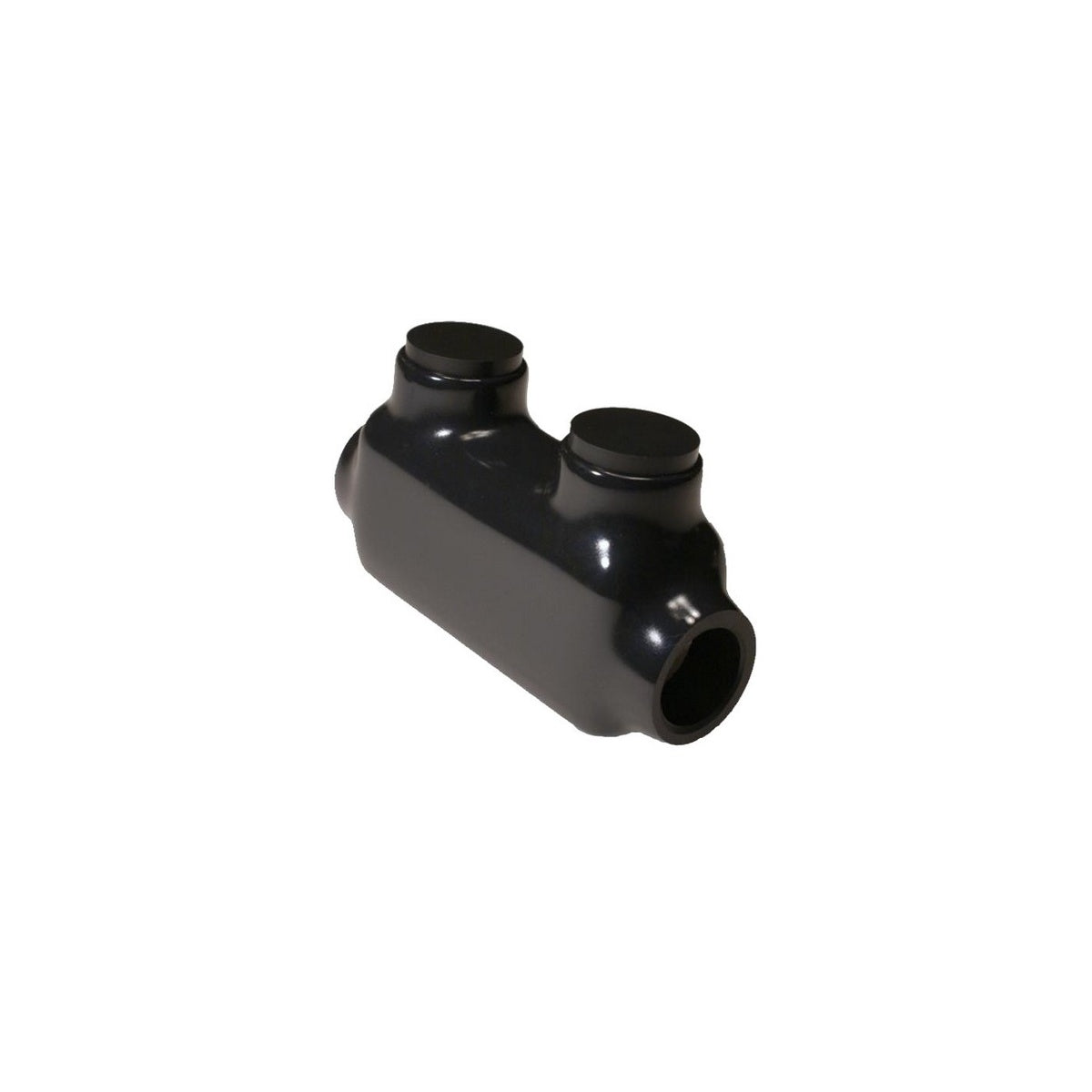

Black Insulated In-Line Splice 350 - 6 Electrical Connector
This Black Insulated In-Line Splice is a mechanical connector designed for electrical distributors and lighting solutions requiring reliable wire and cable splicing. It serves as an insulated electrical power connector suitable for in-line splicing applications in gutter, raceway, and enclosure power distribution systems. The splice supports aluminum and copper conductors and is dual rated for AL/CU compatibility.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: #14 - 500 MCM
- Voltage Rating: 600 V
- Temperature Rating: -49°F to 194°F
- Insulation: Clear Abrasion & Chemical Resistant PVC
- Bolt Type: Hex Head
- Product Weight: 0.5630 lbs
- Manufacturer Part #: 97022
Features
- Insulated mechanical connector with black insulation for protection
- In-line through splice design for easy, fast, and hassle-free installations
- Aluminum mechanical connector suitable for both aluminum and copper conductors
- Prefilled oxide inhibitor to prevent corrosion
- UL 486B dual rated for AL/CU conductors
- Suitable for gutter, raceway, and enclosure power distribution applications
