Morris Products
Black Insulated In-Line Splice 2 - 14
SKU: #280742
Part: #97017
UPC: 601986970174
Morris Products
Black Insulated In-Line Splice 2 - 14
SKU: #280742
Part: #97017
UPC: 601986970174
Description

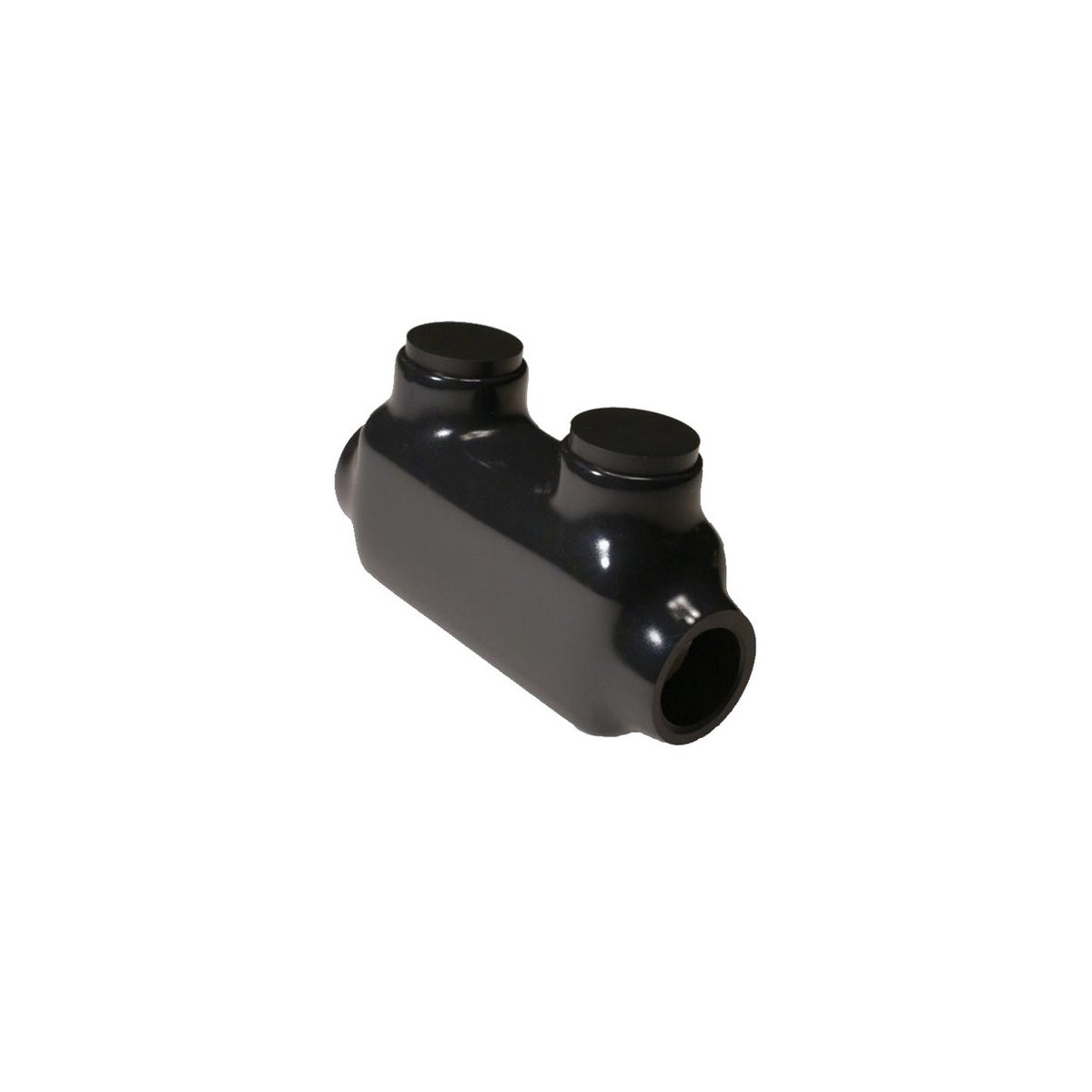

Black Insulated In-Line Splice 2 - 14 Electrical Connector
This insulated electrical power connector is designed for in-line splicing of wire sizes #2 through #14. It serves as a reliable component for electrical distributors and lighting solutions providers, facilitating secure wire and cable connections in power distribution systems. Suitable for applications in gutters, raceways, and enclosures, this connector supports both aluminum and copper conductors with dual rating compliance.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: #2 - #14
- Voltage Rating: 600 V
- Temperature Rating: -49°F to 194°F
- Insulation: Clear abrasion and chemical resistant PVC
- Bolt Type: Hex Head
- UL Certification: UL 486B Dual Rated CU9AL ANSI C119.4
- cUL: Yes
- Product Weight: 0.1350 lbs
- Manufacturer Part #: 97017
- Length: 3.46 inches
- Width: 0.82 inches
- Height: 1.62 inches
Features
- Insulated mechanical connector with black insulation for easy identification
- In-line through splice design for straightforward installation
- Aluminum mechanical connector compatible with both aluminum and copper conductors
- Prefilled with oxide inhibitor to prevent corrosion and ensure long-term conductivity
- Suitable for power distribution in gutters, raceways, and enclosures
