Morris Products
Black Insulated In-Line Splice 2/0 - 6
SKU: #280744
Part: #97020
UPC: 601986970204
Morris Products
Black Insulated In-Line Splice 2/0 - 6
SKU: #280744
Part: #97020
UPC: 601986970204
Description

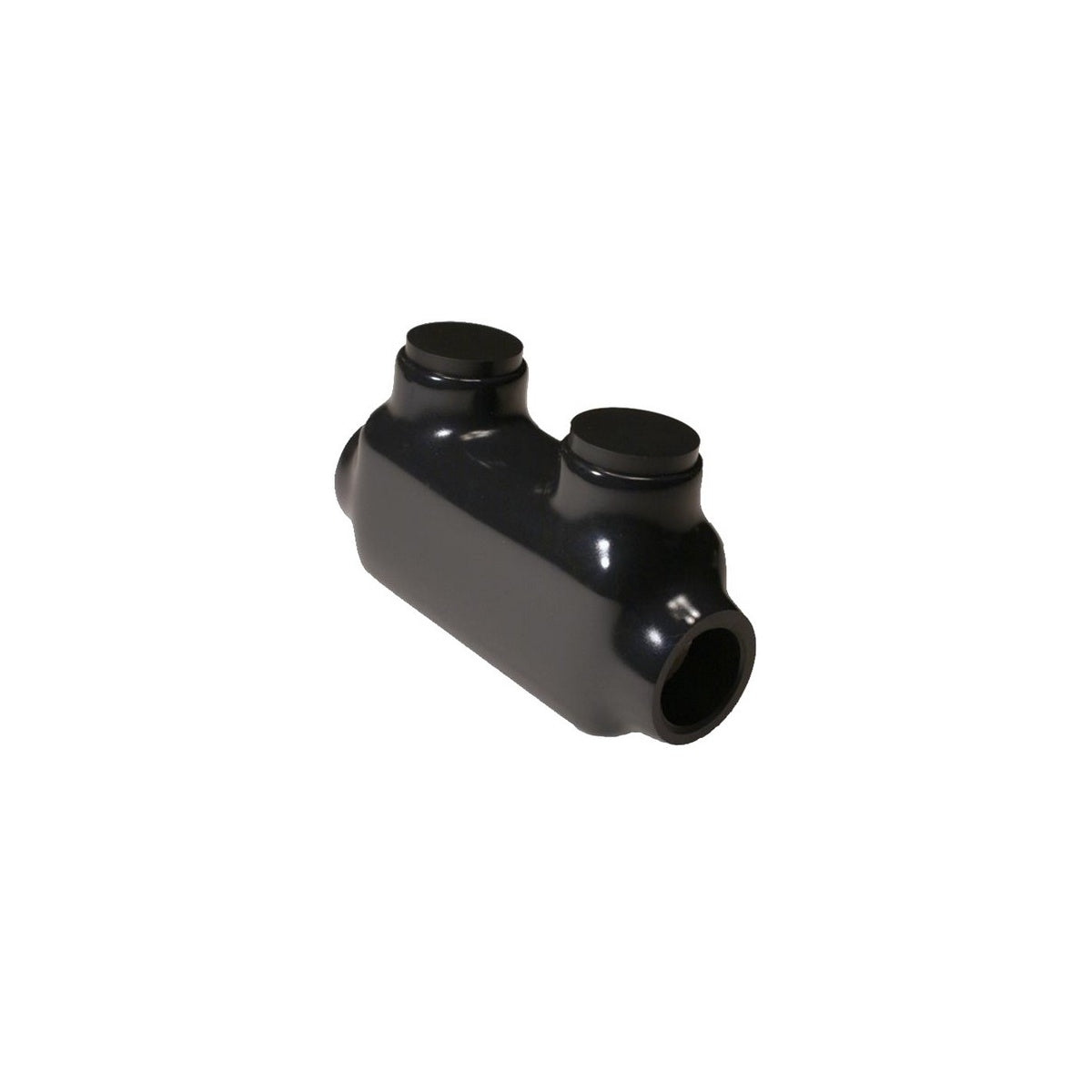

Black Insulated In-Line Splice 2/0 - 6 Electrical Connector
This insulated electrical power connector is designed for in-line splicing of wire sizes 2/0 to #6. Manufactured from 6061-T6 plated aluminum with black abrasion and chemical resistant PVC insulation, it provides reliable mechanical connection for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers. The connector is dual rated for aluminum and copper conductors, suitable for gutter, raceway, and enclosure power distribution installations.
Specifications
- Material: 6061-T6 Plated Aluminum
- Color: Black
- Wire Range: 2/0 - 6 AWG
- Voltage Rating: 600 V
- Temperature Rating: -49°F to 194°F
- Insulation: Clear Abrasion & Chemical Resistant PVC
- Bolt Type: Hex Head
- Product Weight: 0.1500 lbs
- Certifications: UL 486B Dual Rated CU9AL, ANSI C119.4, cUL Listed
Features
- Insulated Mechanical Connector with Black PVC Insulation
- In-Line Through Splice Design for Easy Installation
- Aluminum Mechanical Connector Compatible with AL/CU Conductors
- Prefilled with Oxide Inhibitor to Prevent Corrosion
- Suitable for Gutter, Raceway, and Enclosure Power Distribution Applications
